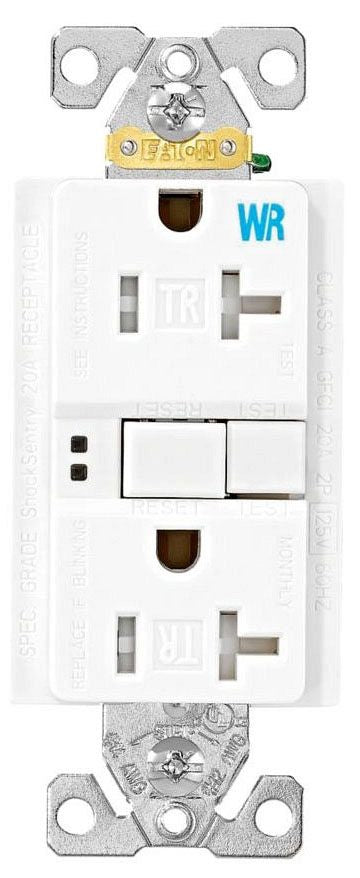

Eaton TWRSGF20W Duplex GFCI Receptacle 125 VAC 20 A NEMA 5-20R

Product Description

Eaton's TWRSGF20W is a duplex GFCI receptacle designed for electrical safety and efficiency. It operates at 125 VAC with a 20 A current capacity. This receptacle protects against ground faults by interrupting power quickly, ensuring user safety in residential, commercial, and industrial settings.

• Features tamper and weather-resistant design.
• Supports back and side wiring for versatility in installation.
• Meets industry safety standards, including UL943.

Product Highlights

This GFCI receptacle is ideal for protecting outlets in wet or outdoor areas, suitable for kitchens, bathrooms, and similar environments where water may come into contact with electrical devices.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton Wiring Devices

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Frequency Rating: 60 Hz
• NEMA Rating: NEMA 5-20R
• Temperature Rating: -35 to 66 degrees C

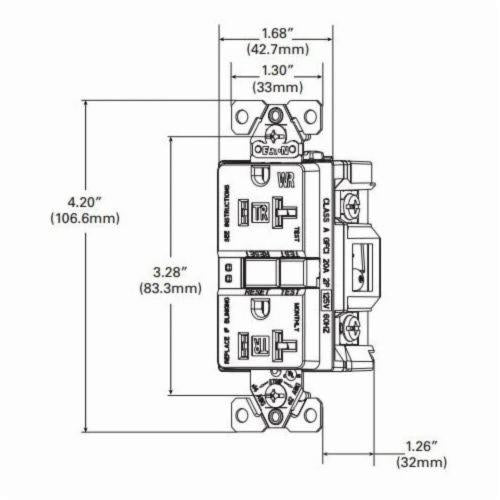

• Dimensions: 4.2 in H x 1.68 in W x 1.27 in D
• Material: Polypropylene
• Series: TWRSGF
• Terminal Type: Back/Side Wire
