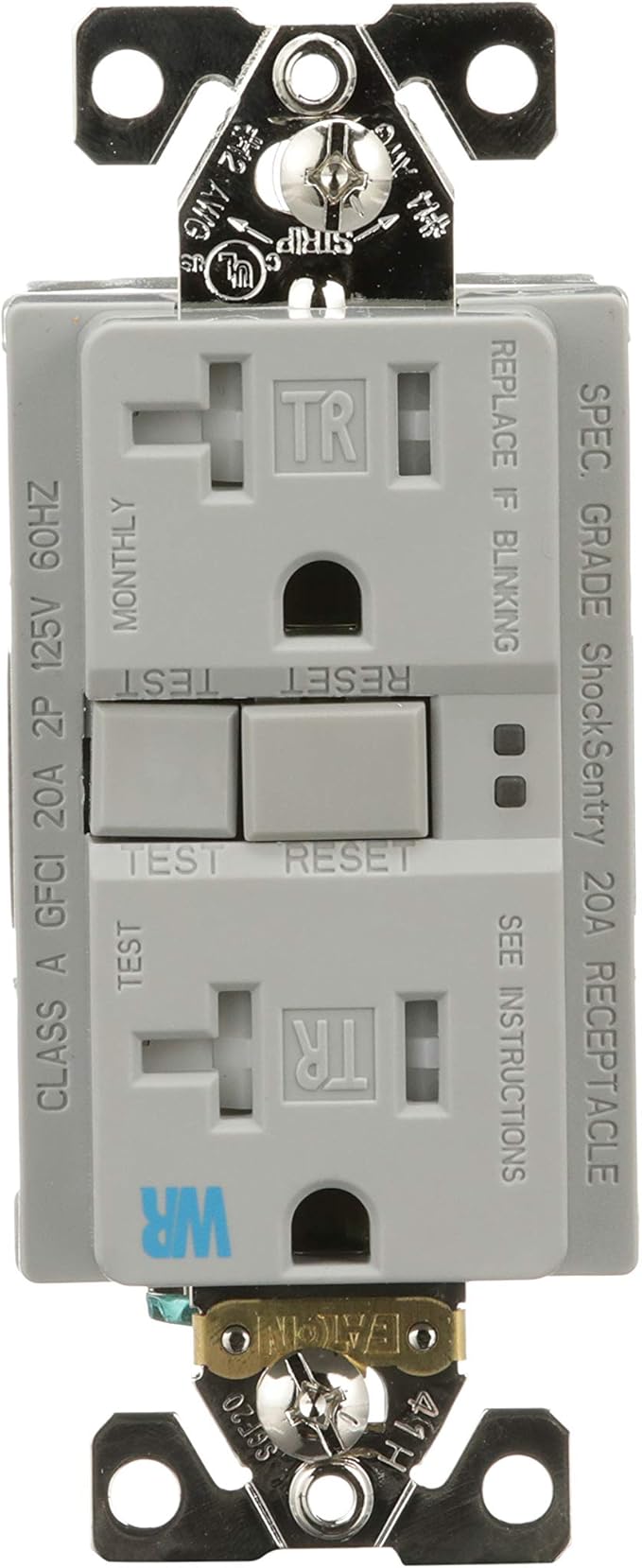

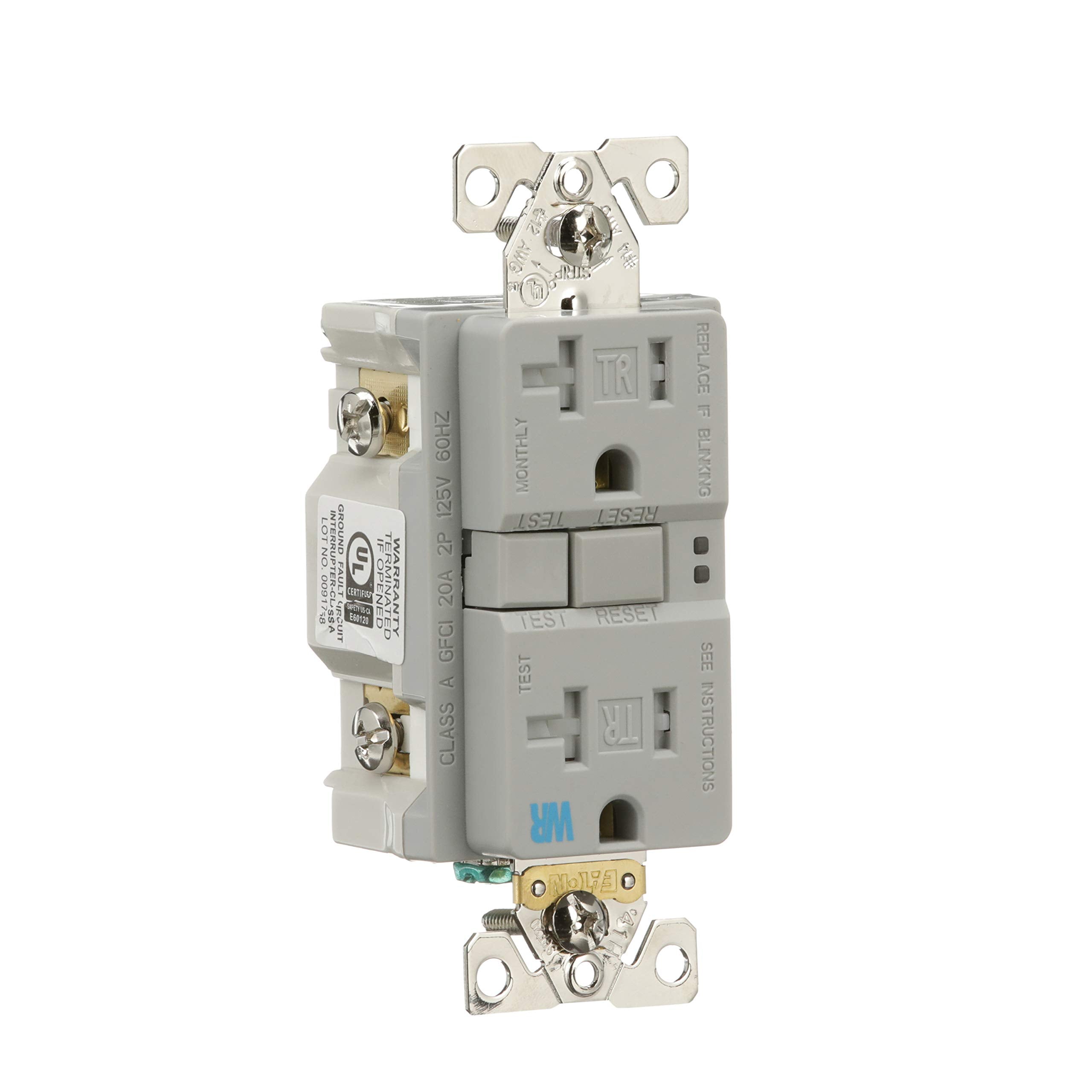

Eaton TWRSGF20GY GFCI Self-Test 20A 125V Tamper & Weather Resistant Duplex Receptacle with Standard Size Wallplate

Product Description

The EATON TWRSGF20GY GFCI Self-Test Tamper and Weather Resistant Duplex Receptacle provides protection from electrical shocks caused by ground faults. This device automatically self-tests to ensure GFCI protection and safety. It denies power and prevents re-setting if the device can no longer provide safe power. Includes a color-matched standard size wallplate.

• Includes color matched standard size wallplate
• Provides protection from dangerous electrical shocks that might occur from faulty appliances or tools, wet or damp locations
• Automatically self tests periodically to ensure GFCI protection

Product Highlights

This tamper and weather-resistant GFCI receptacle provides safety in wet and damp locations. It features a self-test function and includes a standard size wallplate.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TWRSGF20GY
• Country of Origin: CHN

Technical Specifications

• Manufacturer: EATON
• Brand: Eaton
• Model / MPN: TWRSGF20GY
• Number of Items: 1.0
• Product Type: ELECTRICAL_OUTLET
• Type: Self-test
• Voltage rating: 125V
• Amperage Rating: 20A
• Circuit interrupter type: GFCI
• Contact material: Brass
• Application: ResidentialCommercial
• Wiring method: Back and side wire
• Allowable wire size: #14 - 10 AWG
• NEMA Configuration: 5-20R
• Torque rating: 16 lbf-inch
• Environmental conditions: Tamper and weather resistant
• Mounting method: Flush
• Face/body material: PVC Polycarbonate
• Receptacle type: Two-pole, three-wire, grounding
• Amps: 20
• Material: PVC
• Voltage: 125 Volts
• Total Power Outlets: 2
• Power Plug Type: Type A - 2 pin (North American), Type B - 3 pin (North American)
• Amperage: 20 Amps
• Connector Type: Plug In
• Current Rating: 20 Amp
• Number of Poles: 2
• Number of Wires: 3
• Wire Size: 14 to 10 AWG
• Flammability: UL94 V-2
• Temperature rating: -31 to 150.8 Deg F
• Constructional Feature: Tamper Resistant, Weather Resistant
