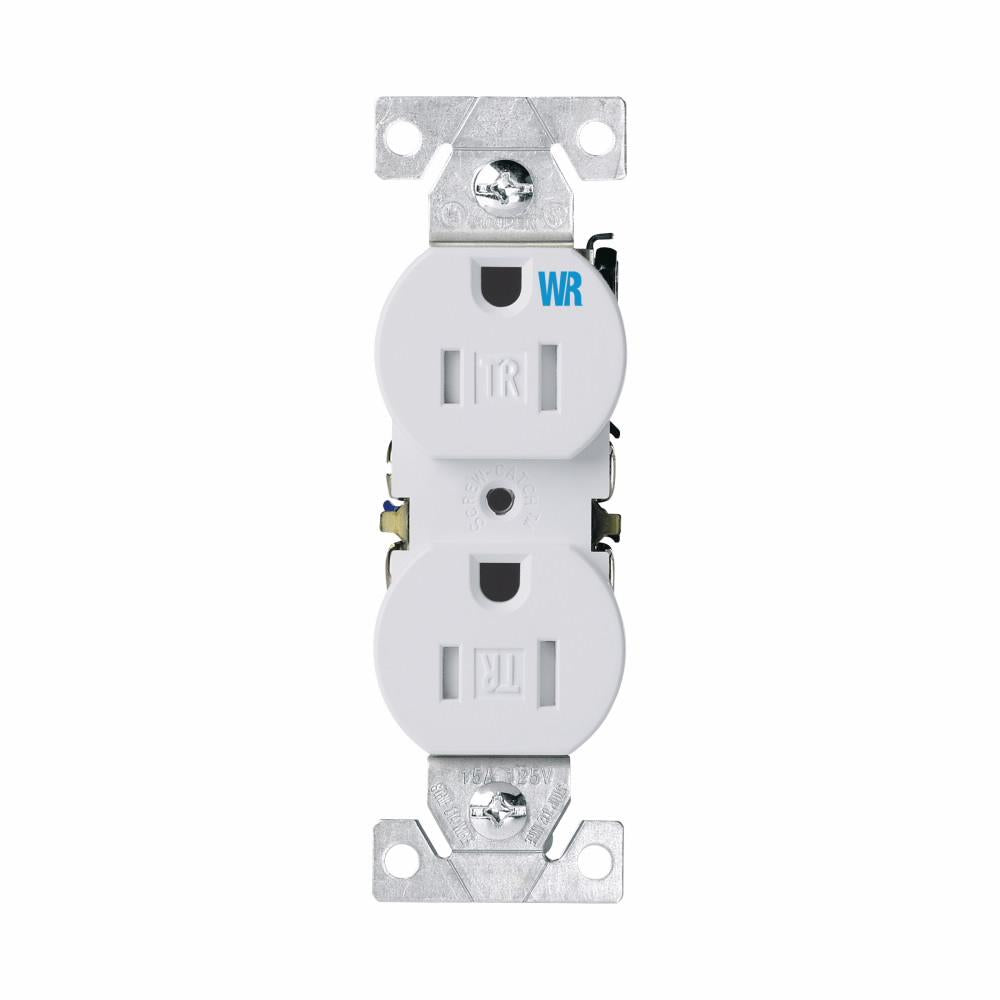

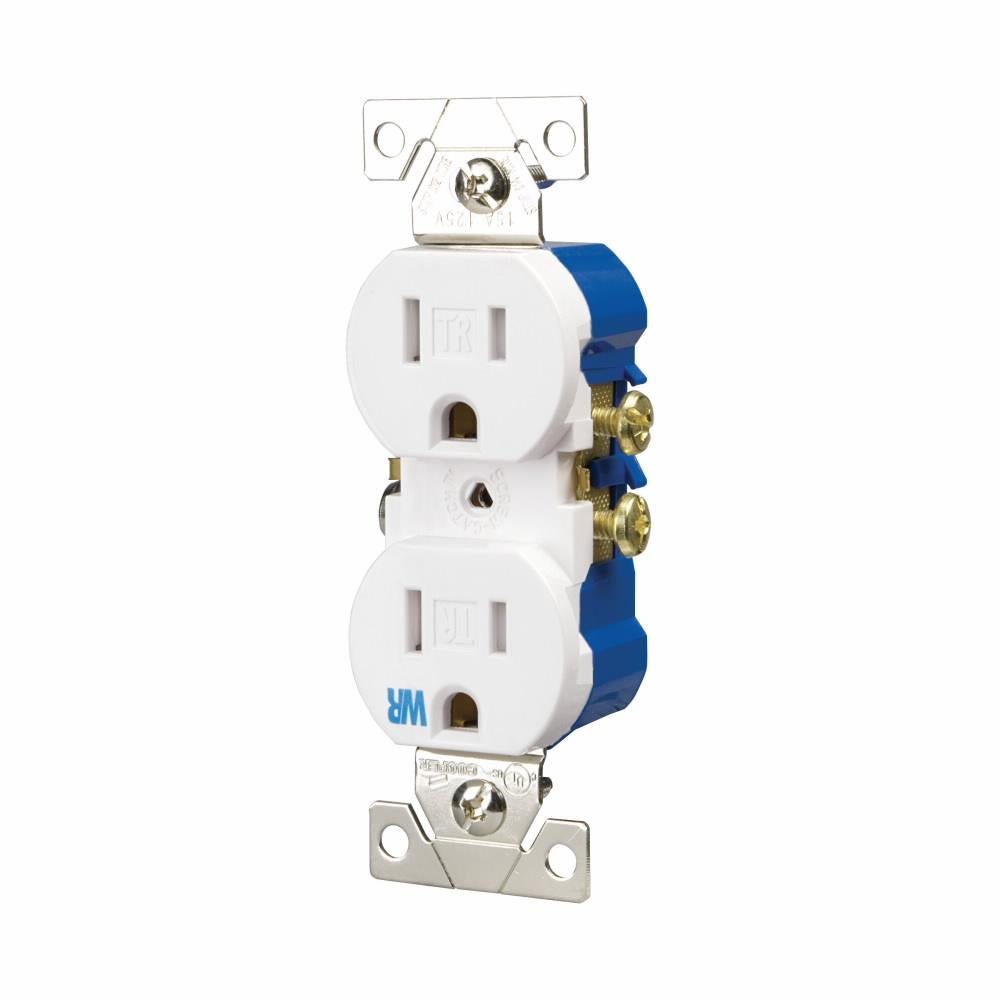

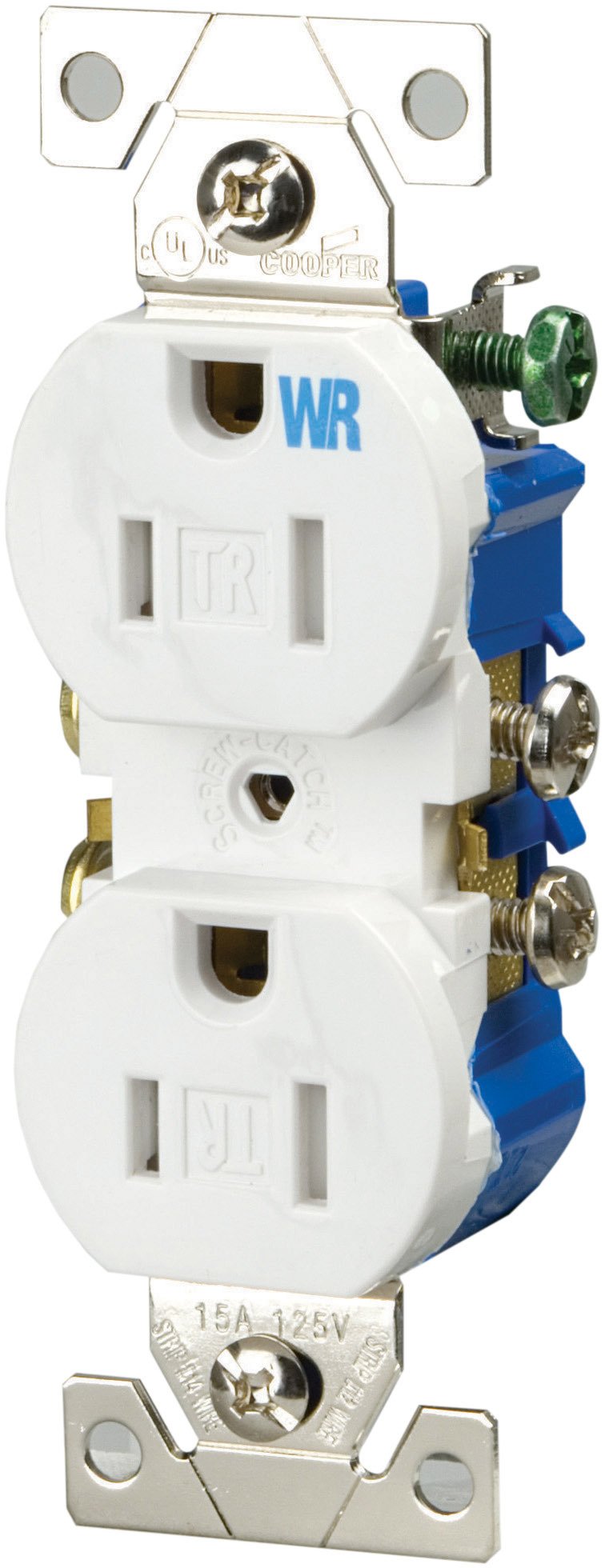

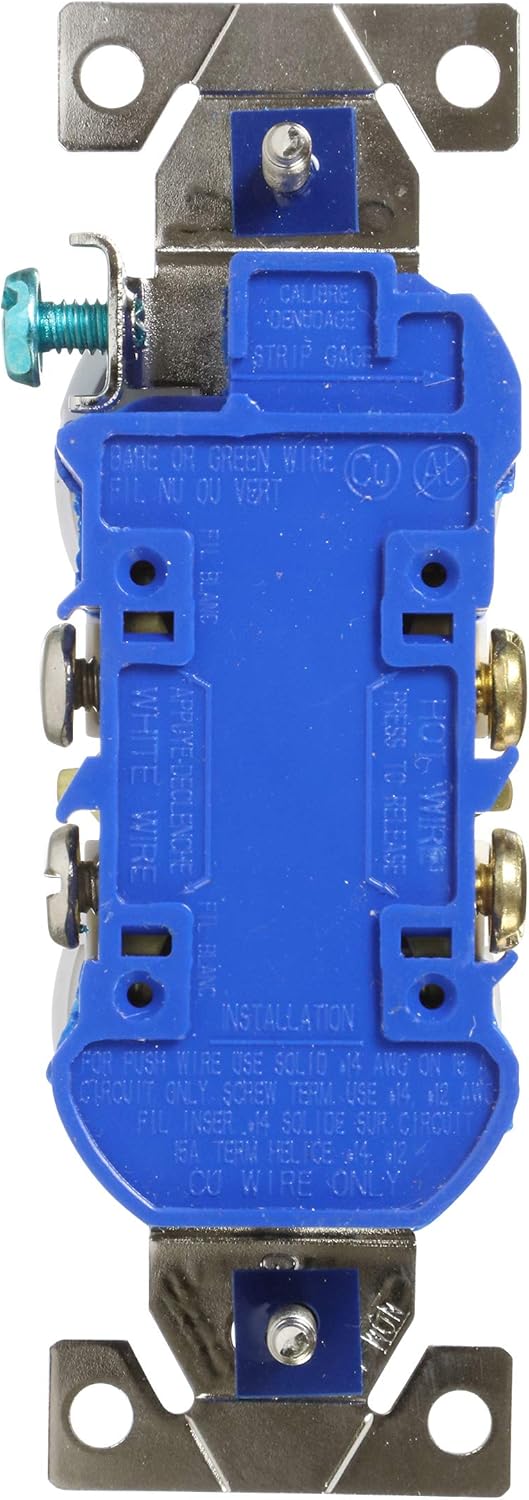

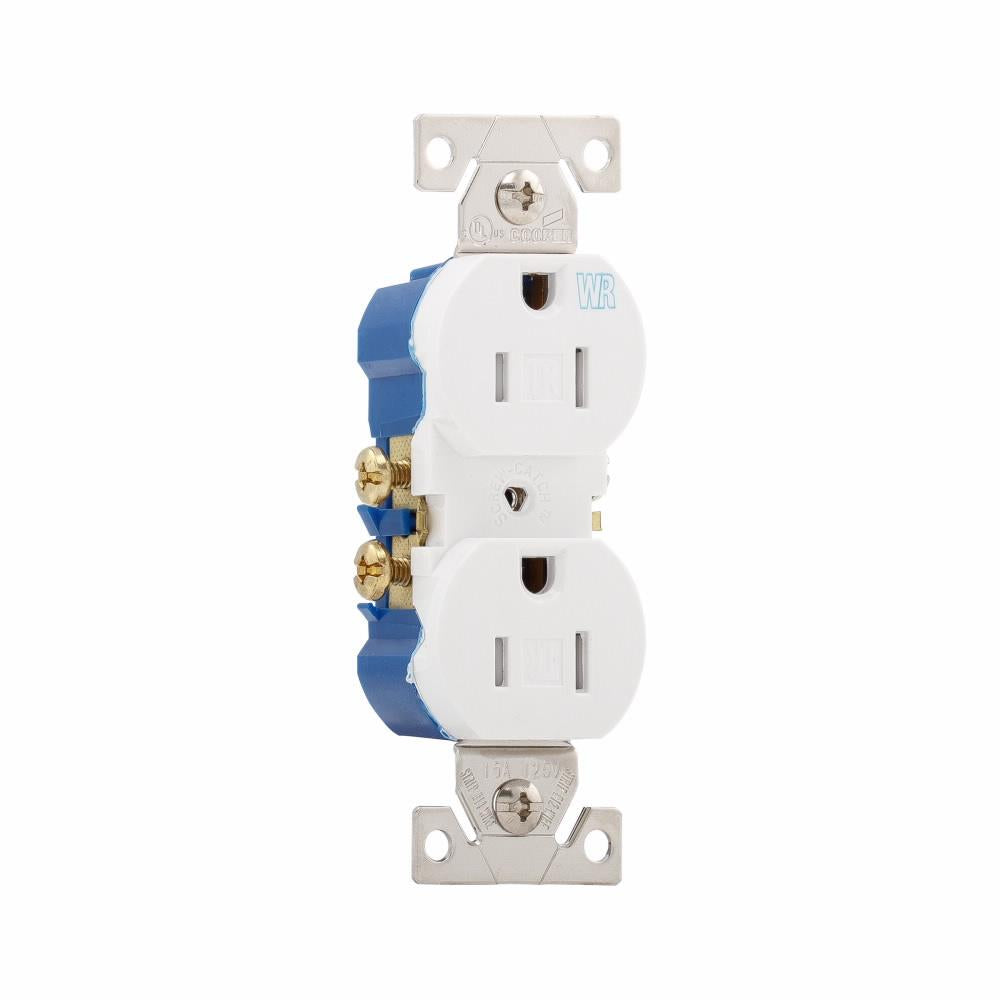

Eaton TWR270W Wiring 15-Amp 2-Pole 3-Wire 125-Volt Tamper and Weather Resistant Duplex Receptacle

Product Description

The Eaton Wiring TWR270w is a 15-Amp, 2-Pole, 3-Wire, 125-Volt tamper and weather-resistant duplex receptacle. It provides compliance with 2011 NEC article 406.9, which states that all receptacles placed in wet or damp locations must be weather resistant. The tamper-resistant feature has a built-in UL Listed safety shutter system that prevents foreign objects from being inserted into the receptacle openings.

• Compliant with 2011 NEC article 406.9 for weather resistance in wet or damp locations.
• Features a built-in UL Listed safety shutter system.
• Constructed with an impact-resistant thermoplastic face and back body.

Product Highlights

This Eaton duplex receptacle is tamper and weather-resistant, suitable for residential or commercial outdoor locations, and provides reliable performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TWR270W
• Country of Origin: MEX

Technical Specifications

• Color: White
• Voltage: 125 Volts
• Material: Thermoplastic
• NEMA Rating: NEMA 5-15R
• Series: TWR270
• Temperature Rating: -20 to 70 deg C
• Terminal Type: Side Wire/Push-In/Screw
• Type: Duplex
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Application: Wiring Devices
• Wiring: Push, Side
• Approval: UL (Canada and US), UL 498, UL 94, NOM 426
• RoHS Compliant: True
• Wire Size: 14 to 10 AWG
• Connection Type: Screw
• Mounting Type: Flush
• Amperage: 15A
• Weather Resistant: Yes
• Tamper Resistant: Yes
• Certification: CSA certified, UL listed
• Wiring Method: Side and push
• Environmental Conditions: Damp/wet
• Allowable Wire Size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• NEMA Configuration: 5-15R
• Torque Rating: 14 lbf-inch
• Design Type: Straight blade
• Face/Body Material: Impact-resistant thermoplastic
• Receptacle Type: Duplex
• Grade: Residential/Standard
