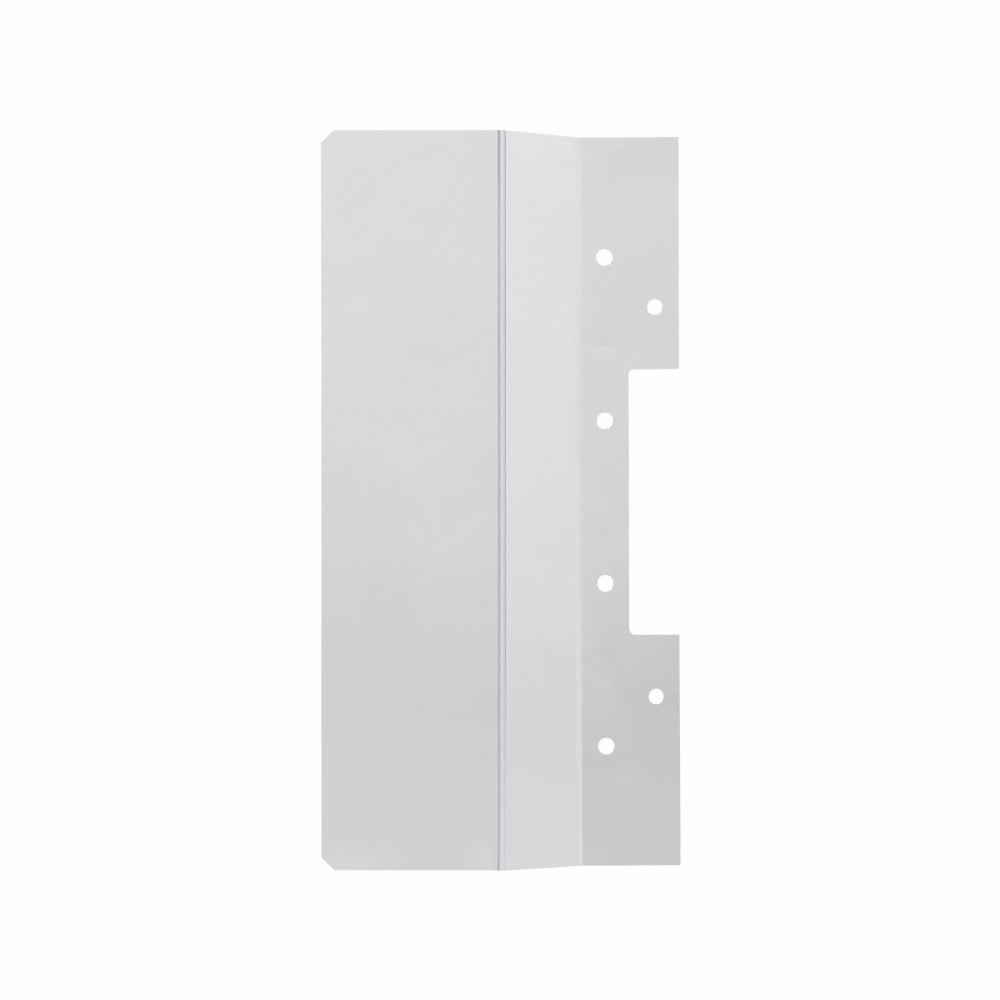

Eaton TSH5-3B Bussmann Shroud UL98 400A Non-F 3P

Product Description

Bussmann TSH5-3B is a terminal shroud designed for use with non-fused rotary disconnect switches. This product is rated for 400 amperes and is suitable for enclosed non-fused disconnect applications. Its dimensions are eleven and one-half inches in length, one inch in width, and five and one-half inches in height.

• Rated for 400 A with three poles
• Designed for easy installation with rotary disconnect switches
• Applications include stationary machinery and equipment

Product Highlights

This terminal shroud provides safety and protection in demanding electrical applications, ensuring compliance with UL requirements.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171240325

Technical Specifications

• Type: 3-Pole Load Side
• Dimensions: 11-1/2 in L x 1 in W x 5-1/2 in H
• Application: Stationary Machinery and Equipment
• Suitable For Use With: Non-Fused Rotary Disconnect Switch, Enclosed Non-Fused Disconnect
• Switch Amperage Rating: 400 A
• Manufacturer Part Number: TSH5-3B
