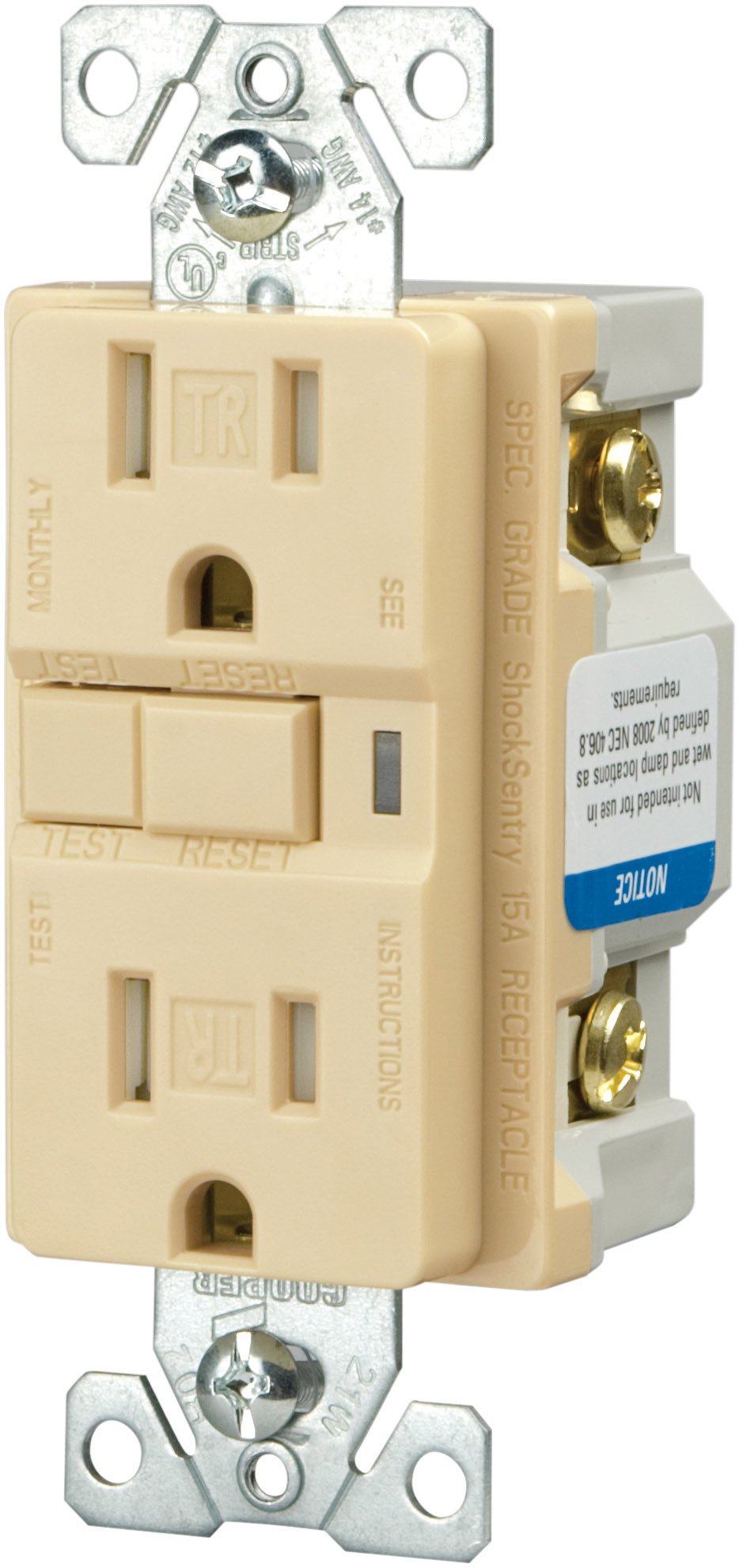

Eaton TRVGF15V Wiring Devices 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Straight Blade Duplex Receptacle

Product Description

The Eaton TRVGF15V Wiring Devices is a 15 Amp, 125 VAC, 2-Pole, 3-Wire NEMA 5-15R straight blade duplex receptacle. This GFCI duplex receptacle features a tamper-resistant design that meets NEC requirements. Ideal for living rooms, play rooms, bedrooms, garages, and any space where children may come in contact with electrical devices.

• Compliant with 2011 NEC Article 406.11 for tamper resistance
• Durable impact-resistant thermoplastic face and back body
• Features a wire stripper for #14 and #12 wire

Product Highlights

This Eaton GFCI receptacle provides a permanent solution for protection against electrical shock. It features a visual indicator light and extra-long mounting straps.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TRVGF15V

Technical Specifications

• GTIN: 00032664665745
• Type: Duplex
• Brand: EATON
• Width: 1.3
• Material: Nylon Top Housing, PVC Bottom Housing
• Enclosure: Tamper Resistant NEC Requirements
• Sub Brand: ARROW HART
• Product UPC: 03266466574
• 12-Digit UPC: 032664665745
• Applications: Specific Grade
• TC Connection: Screw
• Number of Poles: 2 Pole, 3 Wire
• Bottom Material: PVC
• Top Material: Nylon
• Configuration: 5-15R
• Wires: 3
• Grade: Specification Grade
• Approvals: UL (Canada and US); UL 498; UL 943; NOM 426
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Poles: 2
• Wiring: Back; Side
• Manufacturer: EATON
• Model / MPN: TRVGF15V
• Product Type: ELECTRICAL_OUTLET
• Frequency Rating: 60 Hz
• NEMA Rating: NEMA 5-15R
• Amperage Rating: 15 A
• Number of Wires: 3
• Temperature Rating: -35 to 66 deg C
• Terminal Type: Screw
• UNSPSC: 39121633
• Vendor SKU: TRVGF15V
• UPC: 032664665745
• Standard & Approvals: cULus Listed, NOM Certified, RoHS Complaint, UL 498, 943 File No. E601204 Listed
• Features & Benefits: ShockSentry lock-out function protects from miswired line load connections and GFCI circuitry damage Large visual indicator light provides quick visual reference of a tripped or end of life condition Grounding Back and side wire connection Nylon top housing, PVC bottom housing 14 - 10 AWG
