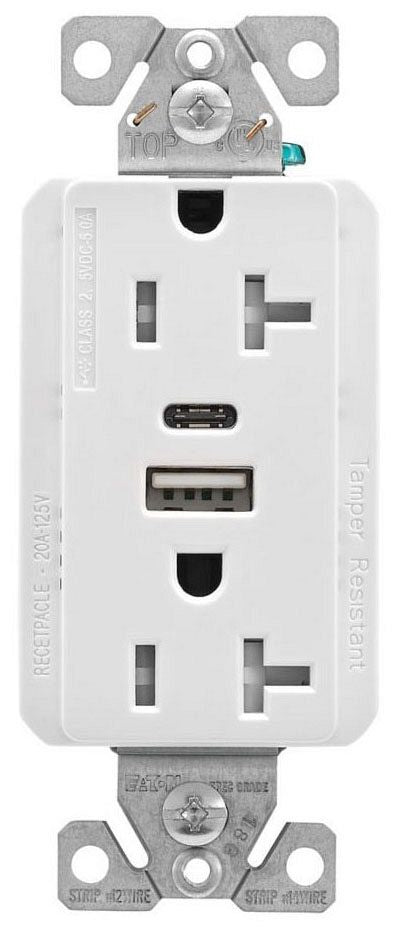

Eaton TRUSBAC20W-BOX Combination USB Type A and C Charger 20A 5-20R Receptacle

Product Description

The Eaton TRUSBAC20W-BOX is a combination USB Type A and C charger with a 20A 5-20R receptacle. This tamper-resistant device features a thermoplastic construction with brass contacts and is designed for flush mounting. It is a two-pole, three-wire device rated for 125V and suitable for commercial applications.

• Combination USB Type A and C Charger
• 20A 5-20R Receptacle
• Tamper resistant

Product Highlights

This Eaton combination USB charger offers both Type A and Type C ports, providing versatile charging options for various devices in commercial settings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TRUSBAC20W-BOX
• Country of Origin: CHN

Technical Specifications

• Type: Tamper-Resistant
• Brand: Eaton
• Color: White
• Length: 1.67 Inch
• Voltage: 125 VAC
• Amperage: 20 Amp
• Material: Thermoplastic
• Sub Brand: Eaton Wiring Devices
• Product UPC: 03266475594
• 12-Digit UPC: 032664755941
• Applications: For Commercial
• Mounting Type: Flush
• Conductor Size: 14-12 AWG
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Contact Material: Brass
• Temperature Rating: -20 to 60 degrees C
• Product Length/Depth: 1.4 in
• Product Height: 4.19 in
• Product Width: 1.3 in
• Certifications: NOM cULus Listed
• Product Type: Combination USB charger with duplex receptacle
• Amperage Rating: 20A
• Voltage rating: 125 V
• Features: Tamper resistant 5A Charging
• Wiring method: Screw terminals
• Packaging type: Retail Box
• Style: Decorator
• Allowable wire size: Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum
• NEMA configuration: 5-20R
• Torque rating: 14 lbf-inch
• Combination type: USB
• Design type: Receptacle
• Receptacle type: Two-pole, three-wire, grounding
• Compatible Devices: All
• Total Power Outlets: 2
• Power Plug Type: Type A - 2 pin (North American)
• Connector Type: Usb Type C
• Connectivity Technology: USB
• Wattage: 20 watts
• Control Style: 2-Pole
• Maximum Amperage: 20 Amp
• Maximum Voltage: 125V
• Tamper Resistant: Yes
• Product Dimensions: 4.19-in X 1.30-in X 1.67-in
