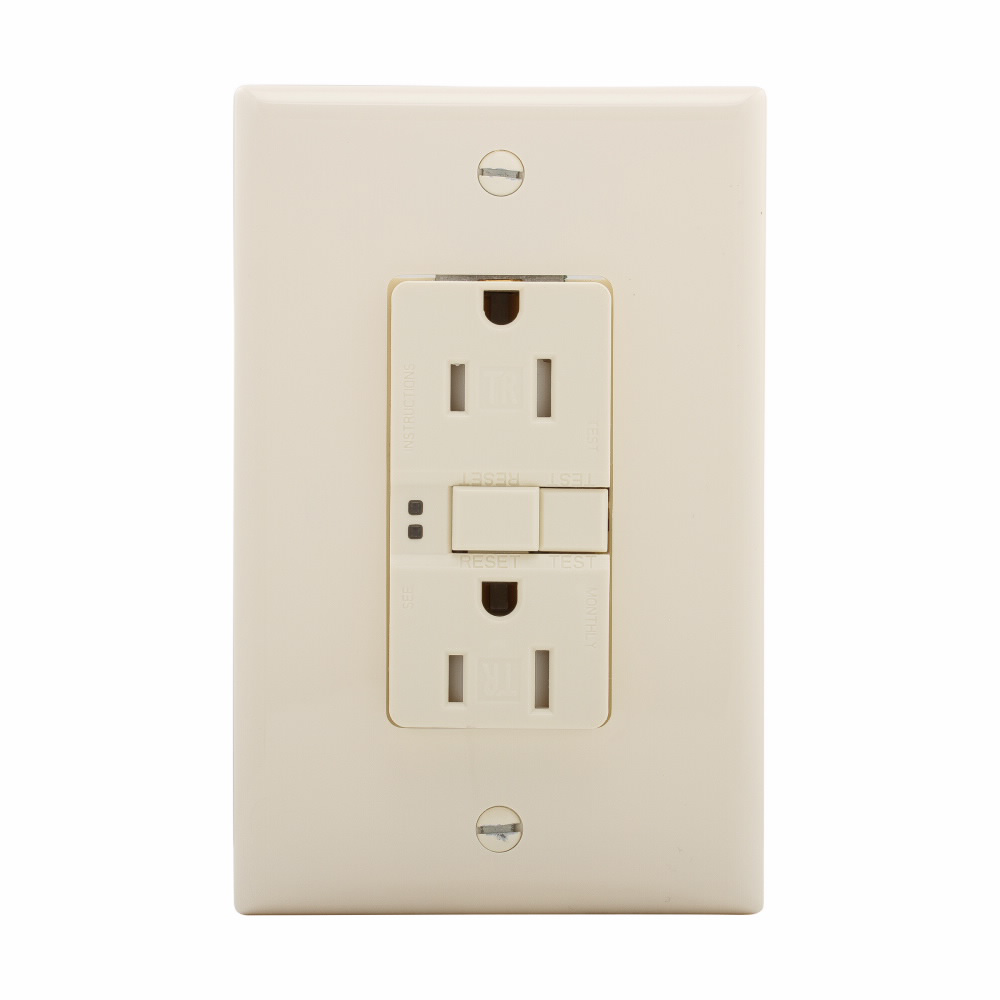

Eaton TRSGF15W-M EWD TRSGF15W-M GFCI TR ST Dup 15A 1

Product Description

The Eaton TRSGF15W-M is a ground fault circuit interrupter receptacle designed for safety and usability in residential settings. With a rated capacity of fifteen amps and a voltage of one hundred twenty-five volts, this mid-size receptacle features both back and side wiring options. It is tamper-resistant and constructed from durable PVC material.

• Self-test GFCI for reliable safety
• Two-pole, three-wire construction
• Brass contact material for enhanced conductivity

Product Highlights

This Eaton GFCI receptacle is ideal for areas where moisture is a concern, such as kitchens and bathrooms. It ensures protection against electrical shock and is easy to install.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: CWD

Technical Specifications

• MPN: TRSGF15W-M
• Amperage: 15 A
• Voltage: 125 V
• Color: White
• Width: 3.288 in
• Height: 6.072 in
• Length: 2.055 in
• Weight: 0.4 lb
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -31 to 150.8 deg F
• Application: Residential
• Standard & Approvals: cULus Listed, NOM Certified
