Eaton TRSGF15V Wiring GFCI Self-Test 15A -125V Tamper Resistant Duplex Receptacle with Standard Size Wallplate

Product Description

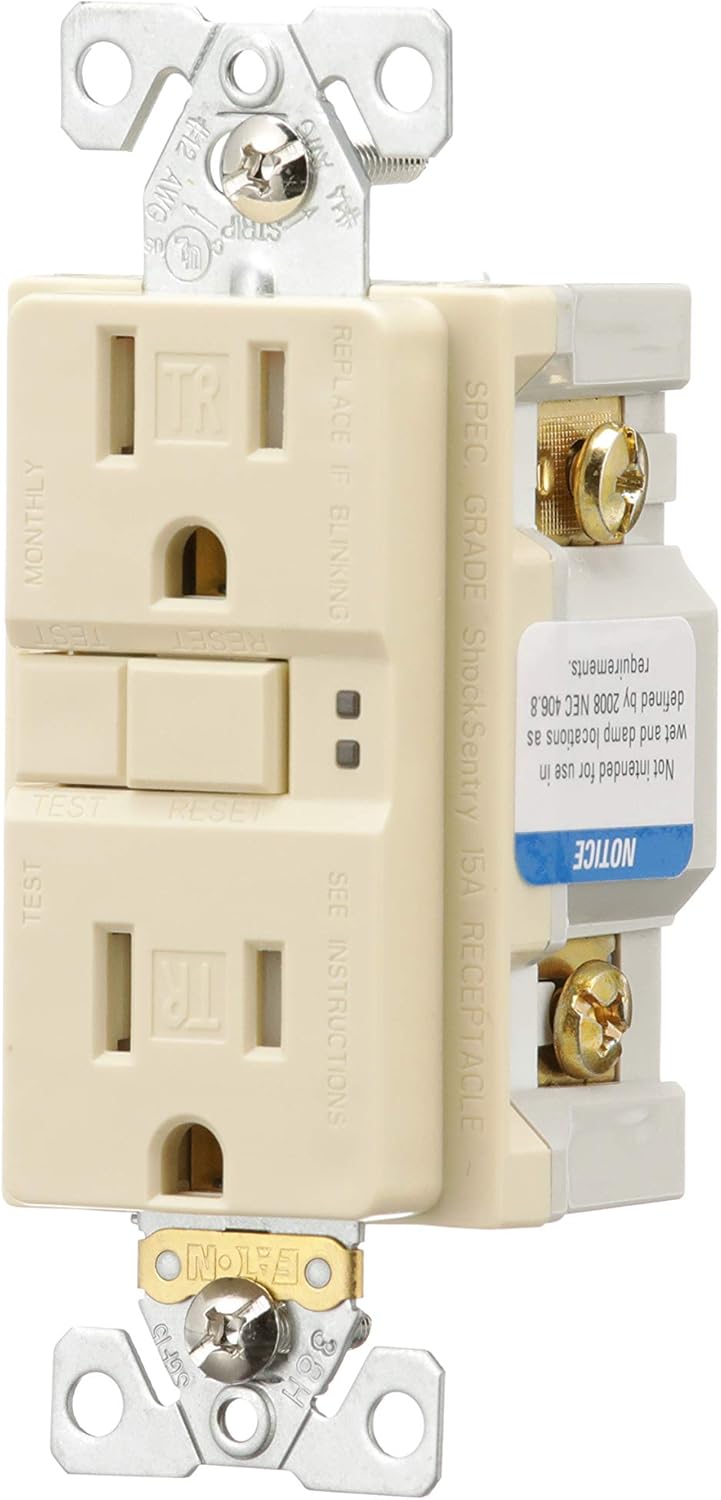

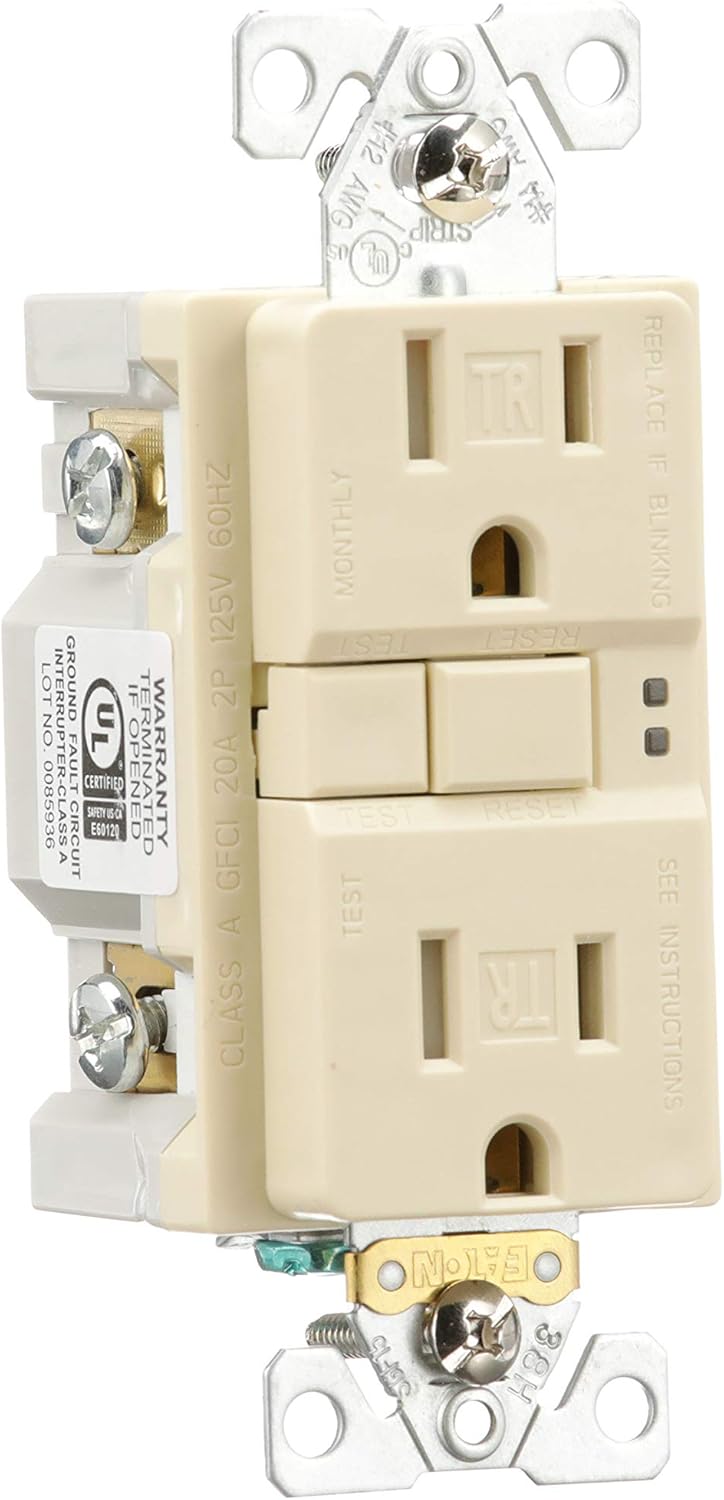

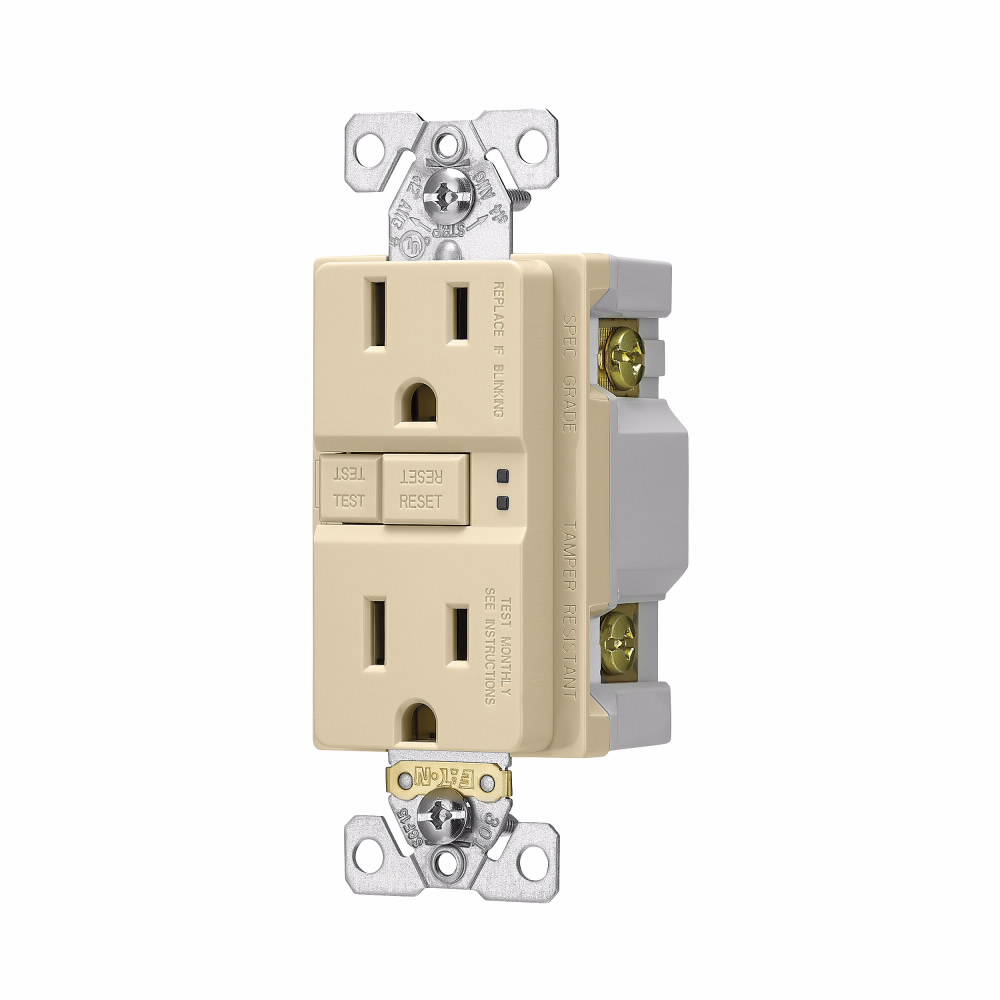

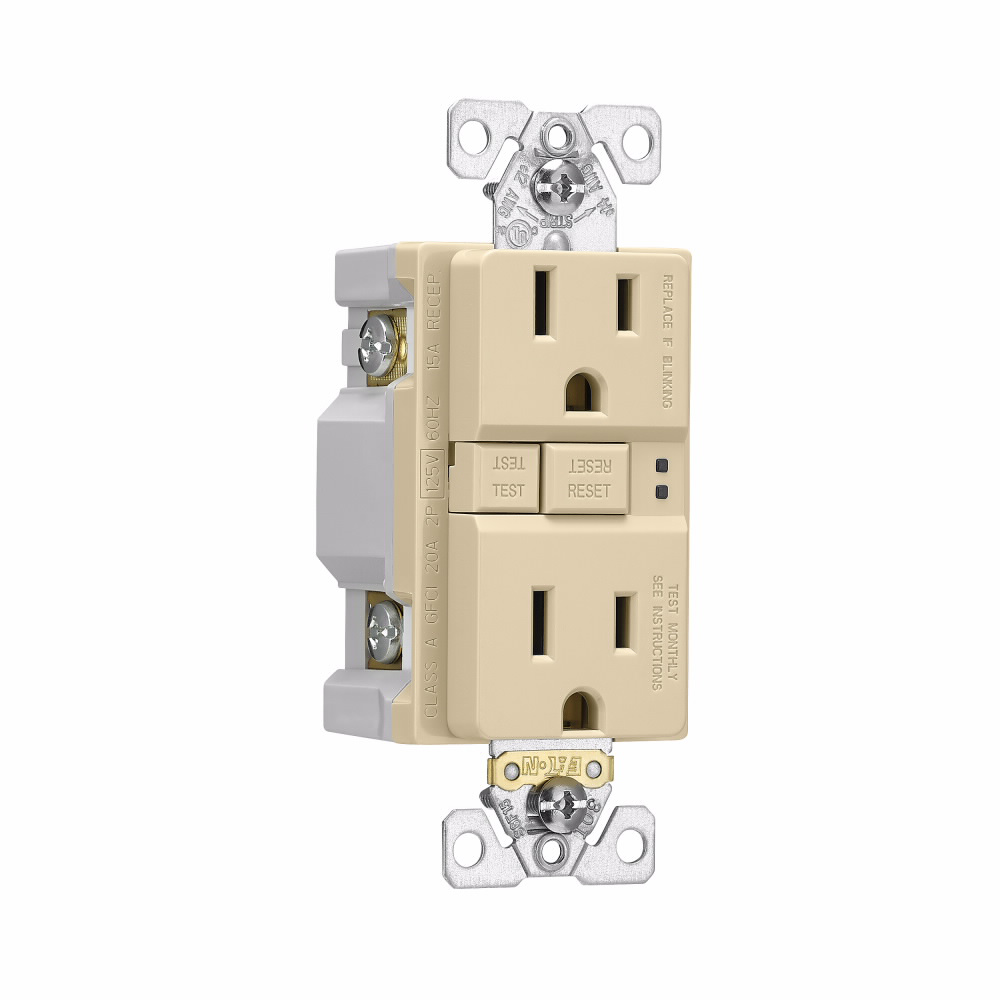

The Eaton TRSGF15V Wiring GFCI Self-Test 15A -125V Tamper Resistant Duplex Receptacle provides protection from electrical shocks caused by ground faults. This GFCI receptacle performs periodic self-tests to ensure the integrity of GFCI protection. It incorporates a safety lock-out function to protect against mis-wired line-load connections and GFCI circuitry damage.

• Self-Test functionality ensures GFCI protection
• Tamper Resistant shutters prevent foreign objects from being inserted
• Duplex Receptacle with Standard Size Wallplate included

Product Highlights

This Eaton GFCI receptacle is UL listed and meets safety standards. It features a visual trip indicator and provides protection against dangerous electrical shocks.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TRSGF15V
• Country of Origin: CHN

Technical Specifications

• Color: Ivory
• Voltage: 120 Volts
• Certification: UL
• Total Power Outlets: 2
• Frequency Rating: 60 Hz
• Grade: Specification
• Material: Polypropylene/PVC/Thermoplastic
• NEMA Rating: NEMA 5-15R
• Series: TRSGF
• Temperature Rating: -31 to 150.8 deg F
• Terminal Type: Screw
• Type: Duplex Grounding Self-Test Tamper Resistant
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Brand: Eaton
• Manufacturer: EATON
• Model / MPN: TRSGF15V
• Product Type: ELECTRICAL_OUTLET
• Application: Commercial/Residential
• Includes: Matching Thermoplastic Wallplate
• Standards/Approvals: ArrowLink|Build-to-Spec|CSA Certified|cULus Listed to UL 498 and UL 943 File No E60120|NEC 2014 Article 406.12|NoM 426|UL 94 V-2 Flammability Rated
• Circuit interrupter type: GFCI
• Device type: Receptacle
• Face/body material: PVC

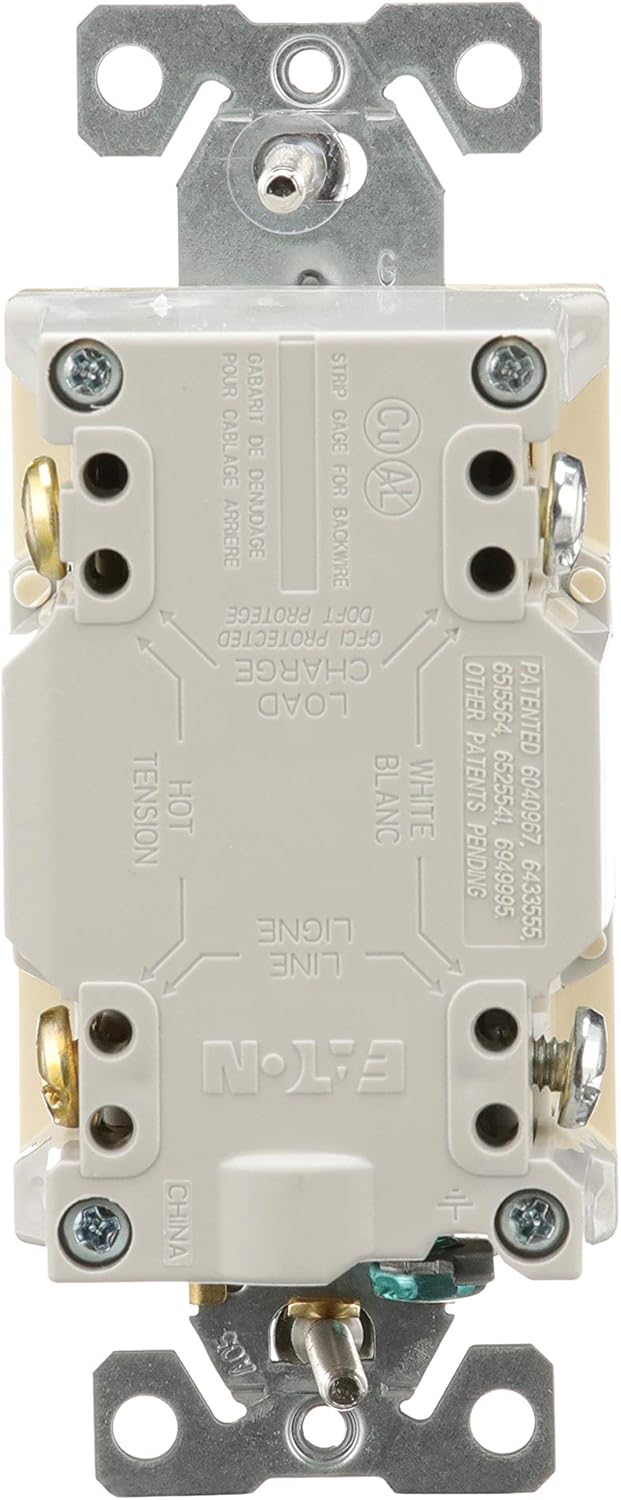

• Wiring method: Back and side wire
• Features: Tamper resistant
• Mounting method: Flush
• Allowable wire size: #14 - 10 AWG
• Contact material: Brass
• NEMA configuration: 5-15R
• Environmental conditions: Tamper resistant
• Receptacle type: Two-pole, three-wire, grounding
• Product Name: Eaton GFCI receptacle
• Catalog Number: TRSGF15V
• UPC: 032664739897
• Product Length/Depth: 2.813 in
• Product Height: 4.625 in
• Product Width: 2 in
• Torque rating: 16 lbf-inch
• Country of Origin: United States
