Product Description

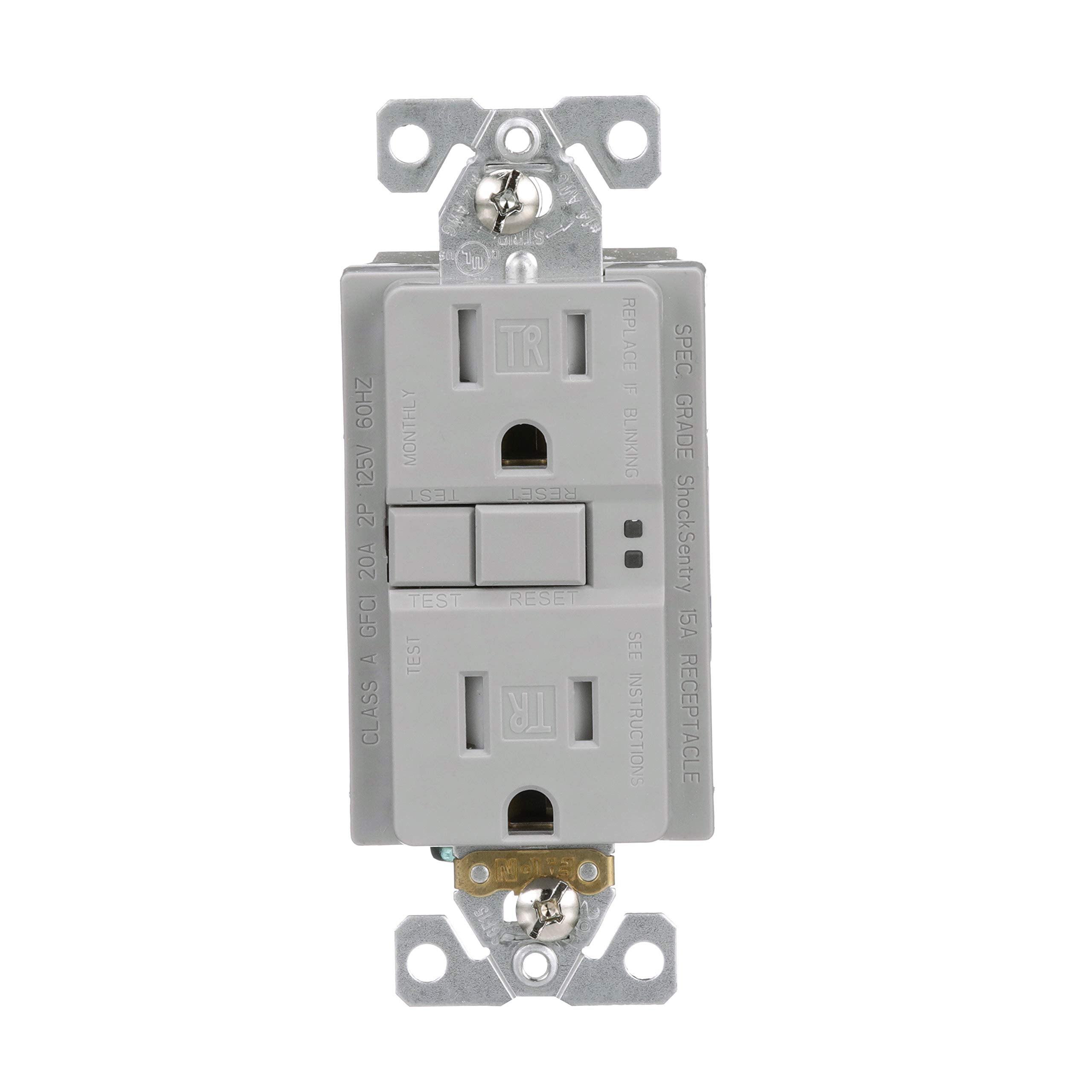

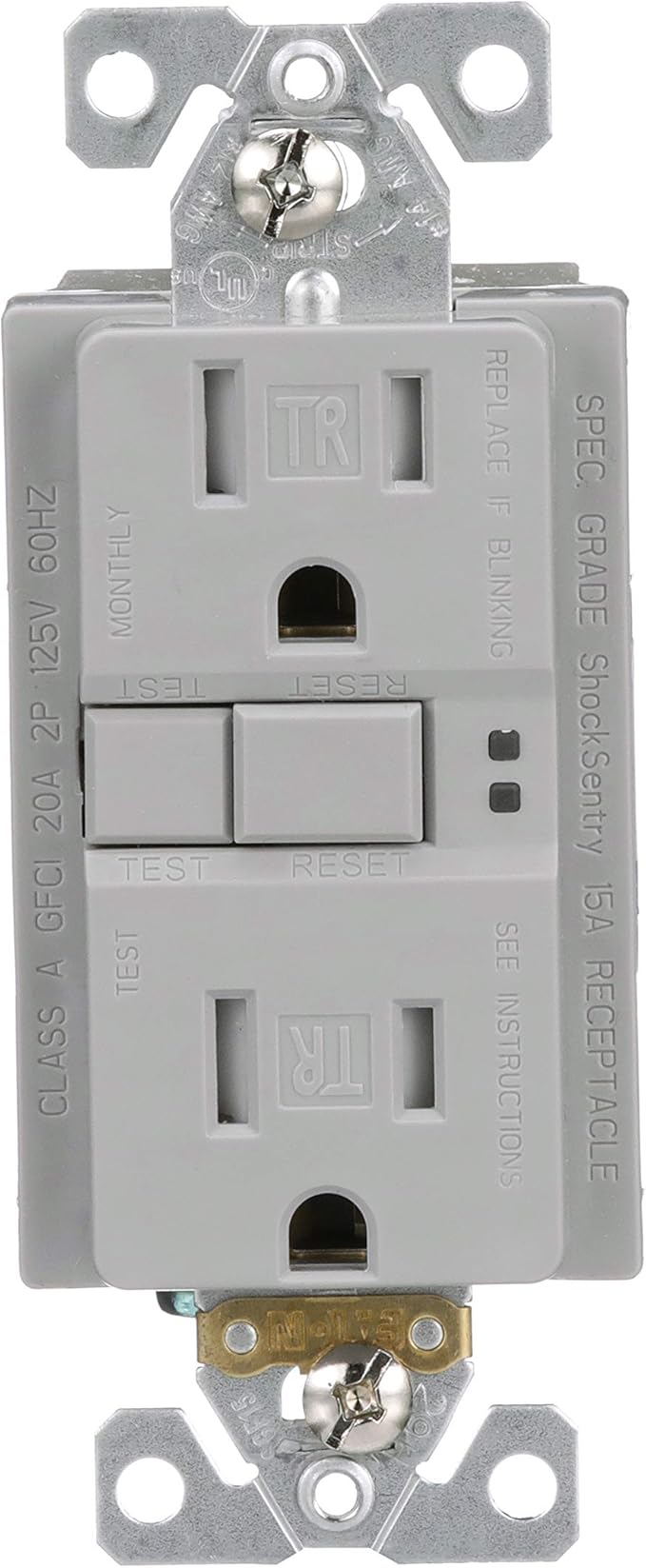

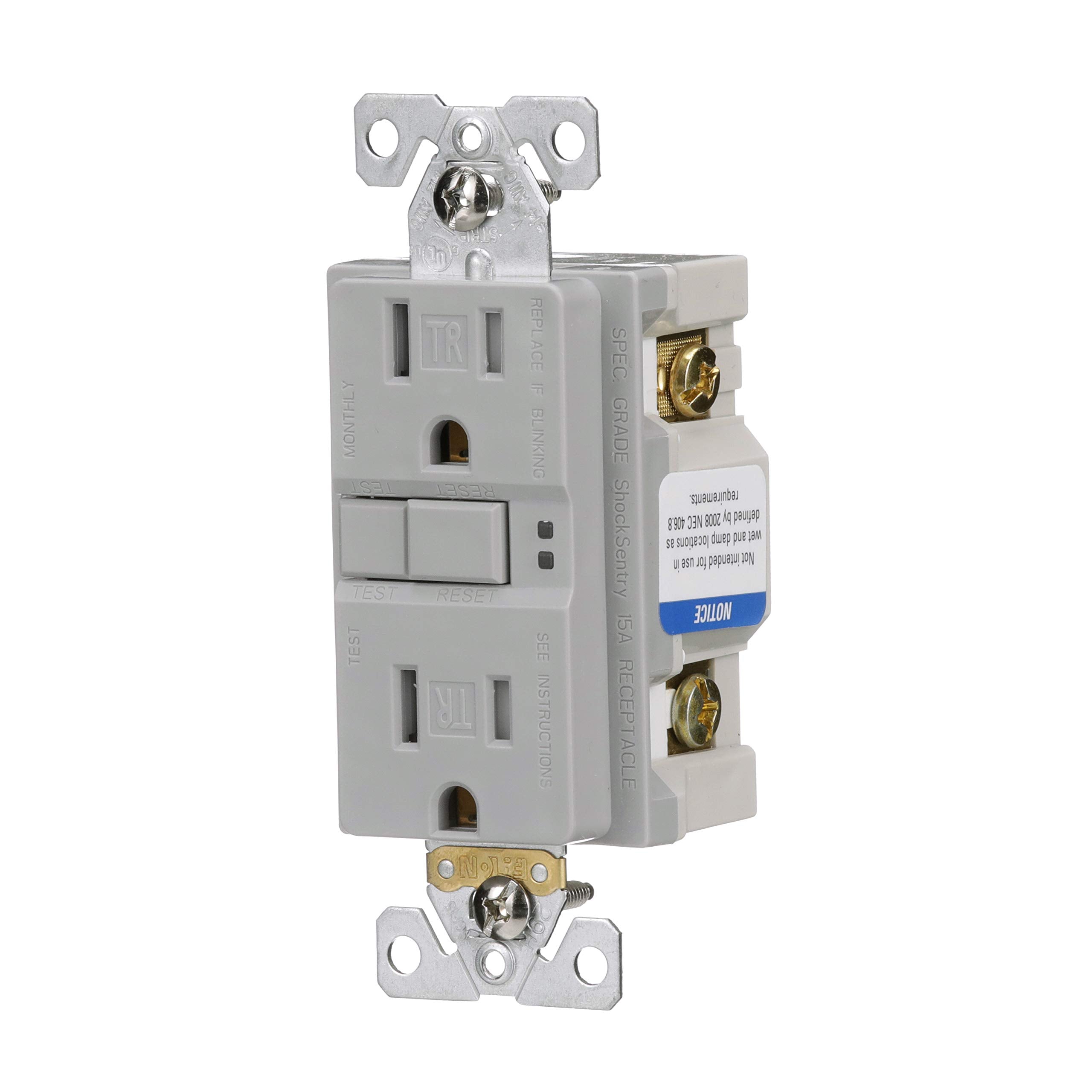

The Eaton TRSGF15GY GFCI receptacle is tamper resistant and features a self-test function. Rated for 15A, 125V, it is suitable for residential and commercial applications. The device protects against electrical shocks caused by ground faults and includes a built-in safety shutter system to prevent insertion of foreign objects. It is designed for back and side wiring with conductor sizes from 14 to 10 AWG.
- GFCI protection
- Tamper resistant
- Self-test function
Product Highlights
Provides protection from electrical shocks. Includes tamper resistant shutters and self-test functionality for safety.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: TRSGF15GY
-
Country of Origin: CHN
Technical Specifications
-
NEMA: 5-15R
-
Type: Self-test
-
Brand: Eaton
-
Color: Gray
-
Height: 4-5/8 Inch
-
Length: 2.813 Inch
-
Voltage: 125 Volt
-
Amperage: 15 Amp
-
Material: Copper
-
Grounding: Grounding
-
Sub Brand: Eaton Wiring Devices
-
Applications: GFCI Protection
-
Conductor Size: 14-10 AWG
-
Connection Type: Grounding
-
Number of Poles: 2 Pole
-
Number of Wires: 3 Wire
-
Contact Material: Brass
-
Environmental Conditions: Tamper Resistant
-
Manufacturer: EATON
-
Model / MPN: TRSGF15GY
-
Number of Items: 1.0
-
Product Type: ELECTRICAL_OUTLET
-
Product Group: Home Improvement
-
Product Length/Depth: 2.813 in
-
Product Height: 4.625 in
-
Product Width: 2 in
-
Certifications: NOM, cULus Listed
-
Device type: Receptacle
-
Amperage Rating: 15A
-
Voltage rating: 125V
-
Circuit interrupter type: GFCI
-
Features: Tamper resistant
-
Application: ResidentialCommercial
-
Wiring method: Back and side wire
-
Allowable wire size: #14 - 10 AWG
-
Torque rating: 16 lbf-inch
-
Number of wires: Three-wire
-
Mounting method: Flush
-
Number of poles: Two-pole
-
Face/body material: PVC Polycarbonate
-
Receptacle type: Two-pole, three-wire, grounding
-
Maximum Amperage: 15A
-
Finish: Gray
-
Model: TRSGF15
-
Outlet Style: Double
-
Additional Features: Self-Testing
-
Grade: Commercial Specification Grade
-
Ground: GFCI Ground Fault
-
Phase: 1 Phase
-
Poles: 2
-
Terminal Type(s): Back and Side Wired
-
Wires: 3
-
Termination Type: Terminal Screws
-
Installation Area: Indoor
-
Compatible Devices: All
-
Material Type: Polycarbonate
-
Total Power Outlets: 2
-
Power Plug Type: No Plug
-
Connector Type: Plug In
-
Volts AC: 125
-
Amps: 15
