Product Description

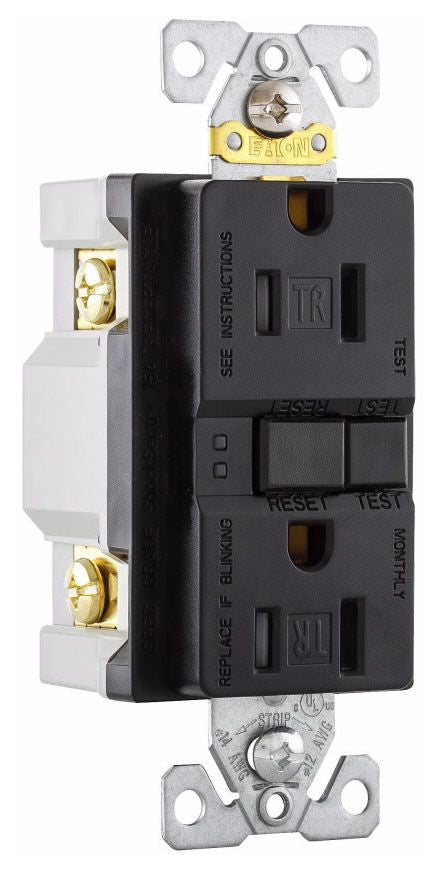

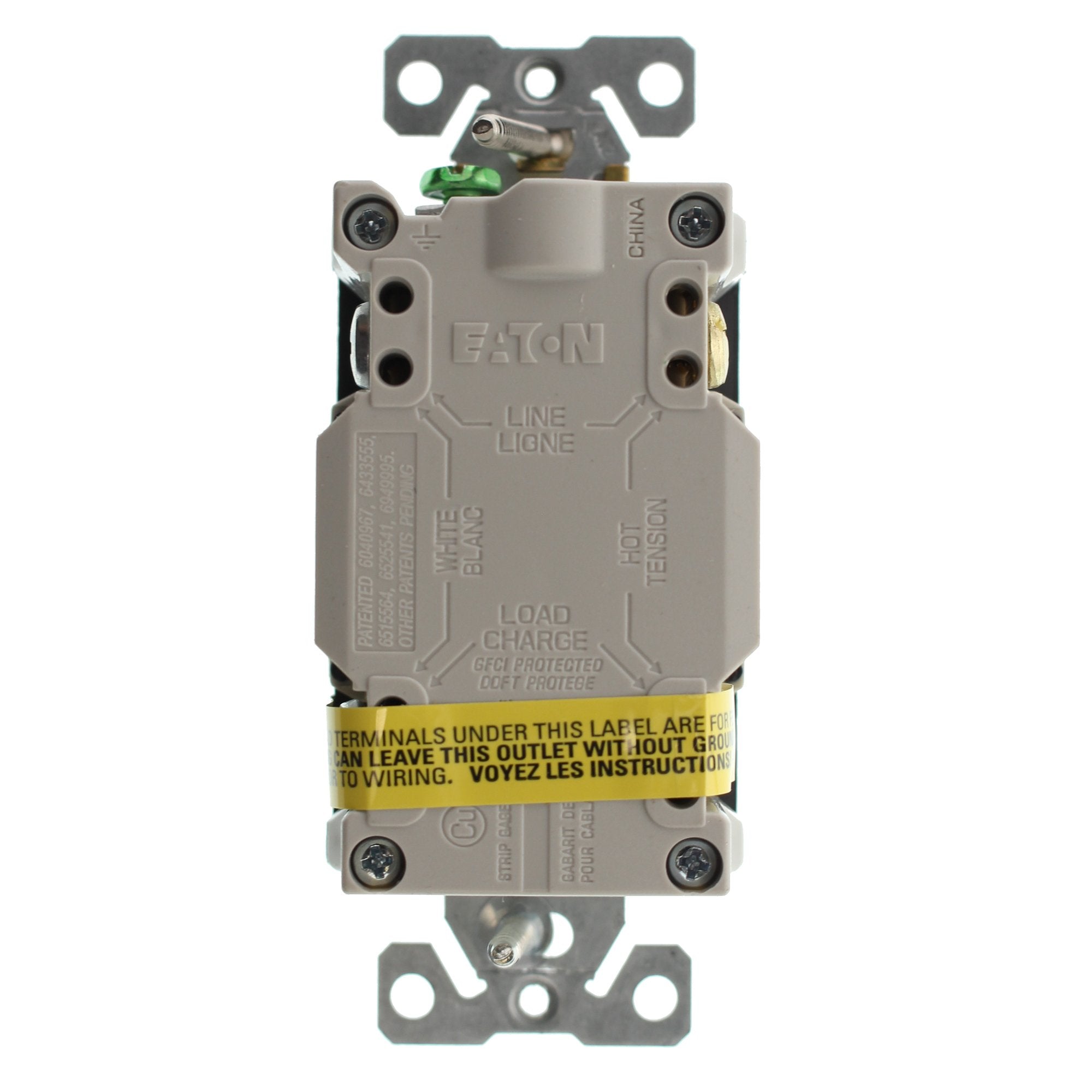

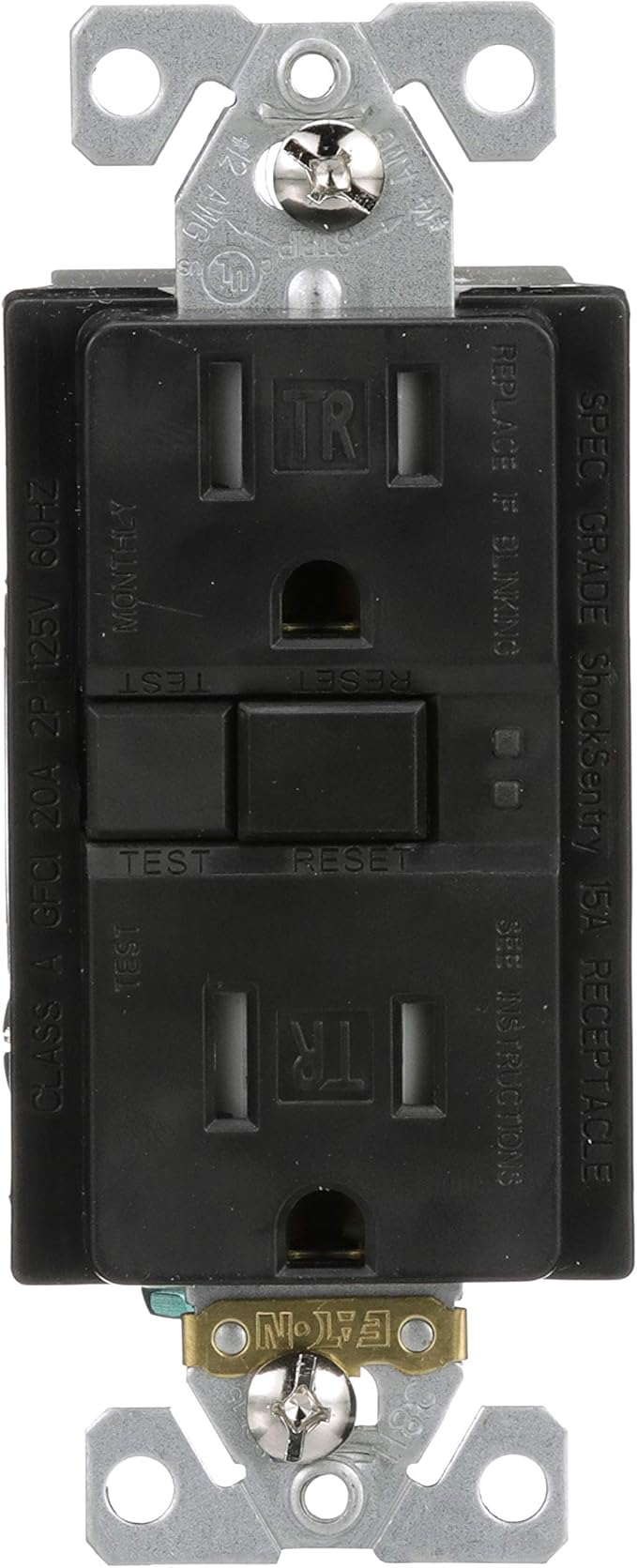

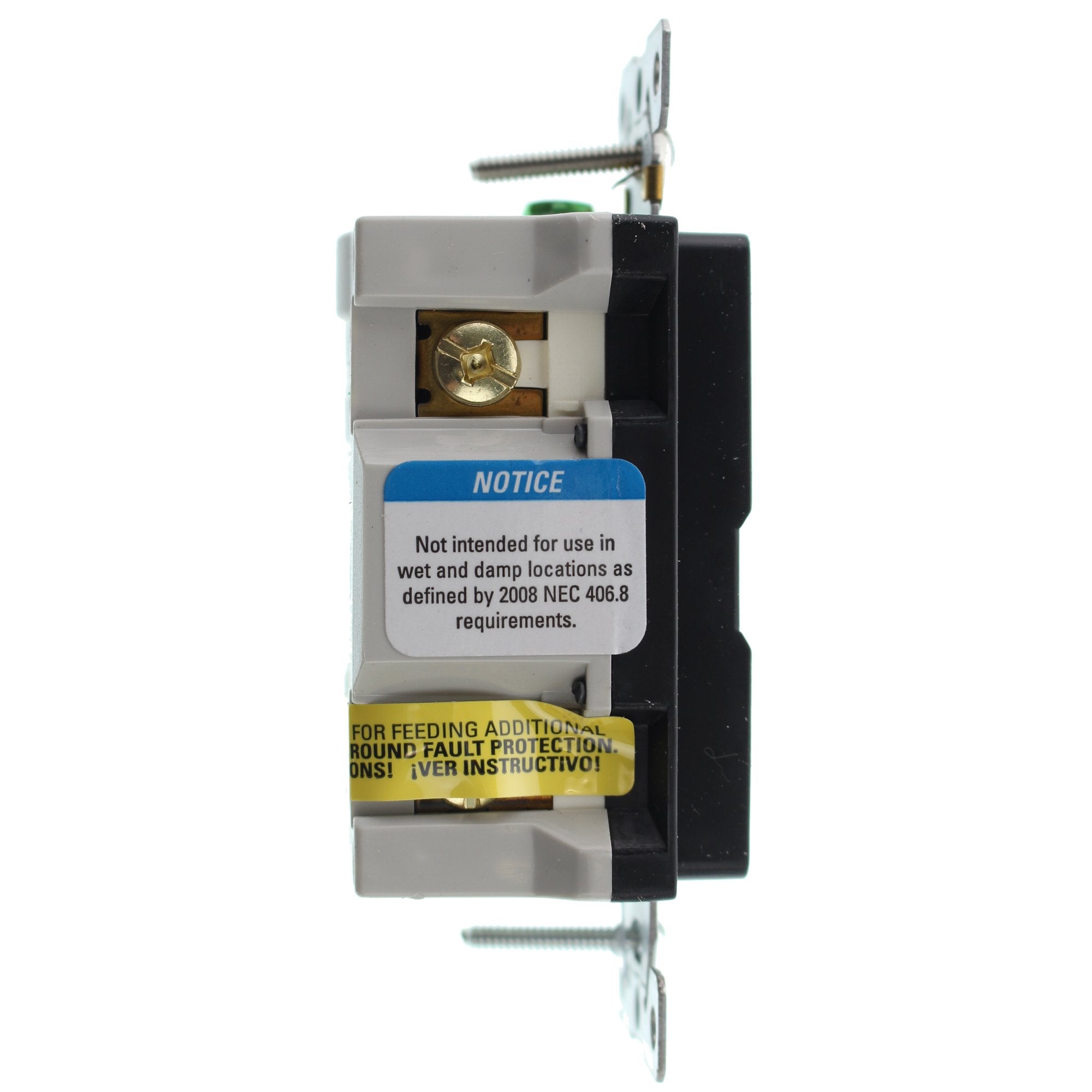

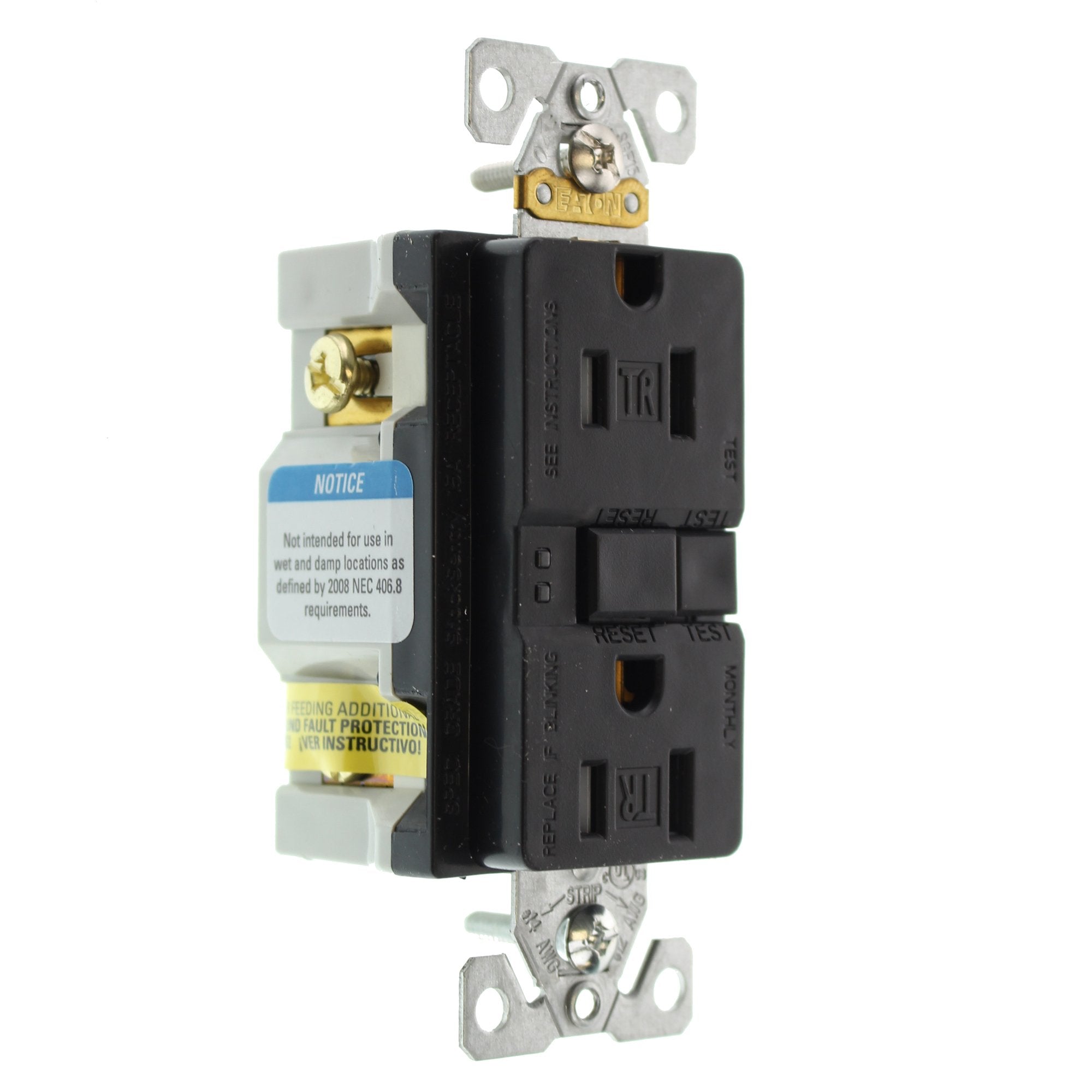

The Eaton TRSGF15BK Arrow Hart Duplex Tamper-Resistant GFCI Receptacle is designed with user safety in mind. This 15A, 125 VAC receptacle is UL Listed and compliant with UL943 Class A GFCI and UL498 requirements. It features automatic self-testing and a safety lock-out function to protect against mis-wired connections and circuitry damage.
- Designed with user safety in mind
- Compliant with UL943 Class A GFCI requirements
- Self-Test GFCIs conduct automatic periodic tests
Product Highlights
Provides protection from electrical shocks. Features self-testing and tamper-resistant shutters for enhanced safety.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: TRSGF15BK
-
Country of Origin: CHN
Technical Specifications
-
Voltage Rating: 125 VAC
-
Amperage Rating: 15 A
-
Poles: 2
-
Wires: 3
-
Type: Duplex Tamper-Resistant GFCI Receptacle
-
Brand: Eaton
-
Manufacturer: EATON
-
Model / MPN: TRSGF15BK
-
Product Type: ELECTRICAL_OUTLET
-
Frequency Rating: 60 Hz
-
Temperature Rating: -35 to 66 deg C
-
Terminal Type: Back/Side Wire
-
Series: TRSGF
-
Standards/Approvals: cULus Listed to UL 498|UL 943|E60120|2011 NEC Article 406.11 Compliant|CSA Certified|NOM Certified
-
Material: Thermoplastic
-
NEMA Rating: NEMA 5-15R
-
Application: Commercial, Industrial and Institutional
-
Product Length/Depth: 2.813 in
-
Product Height: 4.625 in
-
Product Width: 2 in
-
Certifications: NOM, cULus Listed
-
Device type: Receptacle
-
Wiring method: Back and side wire
-
Allowable wire size: #14 - 10 AWG
-
NEMA configuration: 5-15R
-
Torque rating: 16 lbf-inch
-
Environmental conditions: Tamper resistant
-
Number of wires: Three-wire
-
Mounting method: Flush
-
Face/body material: PVC, Polycarbonate
-
Receptacle type: Two-pole, three-wire, grounding
-
Total Power Outlets: 2
-
Power Plug Type: No Plug
-
Connectivity Technology: Hardwired
-
Specification Met: UL
-
Current Type: AC
-
Maximum Amperage: 15A
-
Model: TRSGF15
-
Mounting Style: Flush
-
Outlet Style: Double
-
Number of Gangs: 1
-
Material Type: Polycarbonate
-
Additional Features: Self-Testing
-
Grade: Commercial Specification Grade
-
Ground: GFCI Ground Fault
-
Phase: 1 Phase
-
Terminal Type(s): Back and Side Wired
-
Mounting Type: Mounting Strap
-
Termination Type: Terminal Screws
-
Gender: Female
-
Installation Area: Indoor
-
Part Number: TRSGF15BK
-
Grade Type: Residential
-
Maximum Voltage: 125V
-
Outlet Type: Duplex
-
Tamper Resistant: Yes
-
Weather Resistant: No
-
UPC: 032664739866
