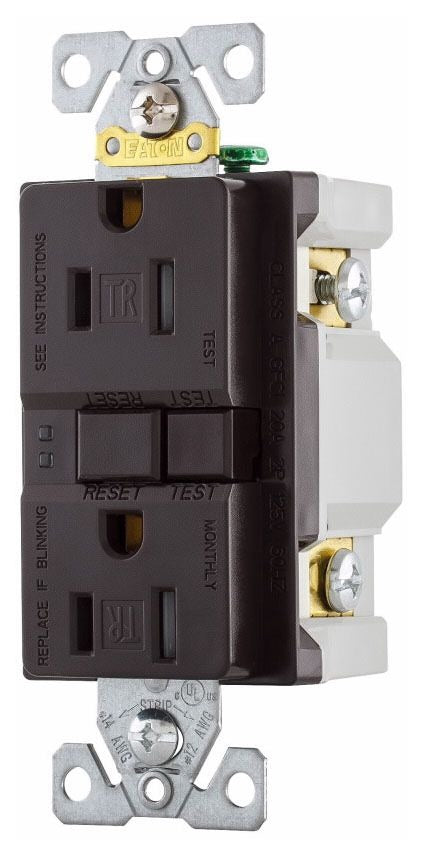

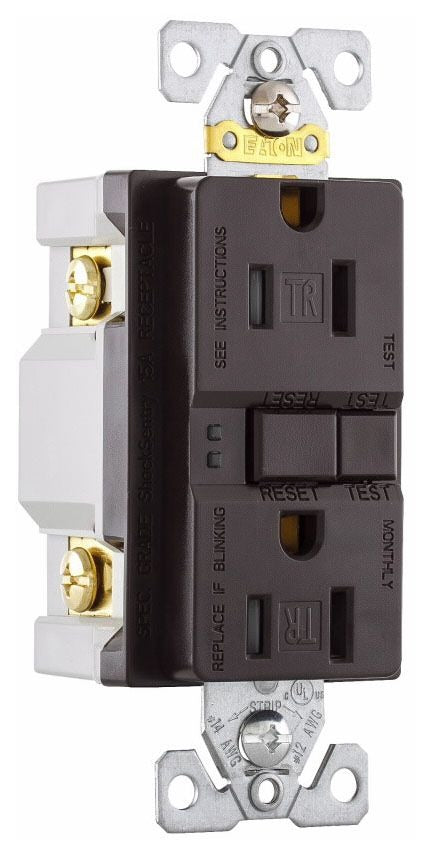

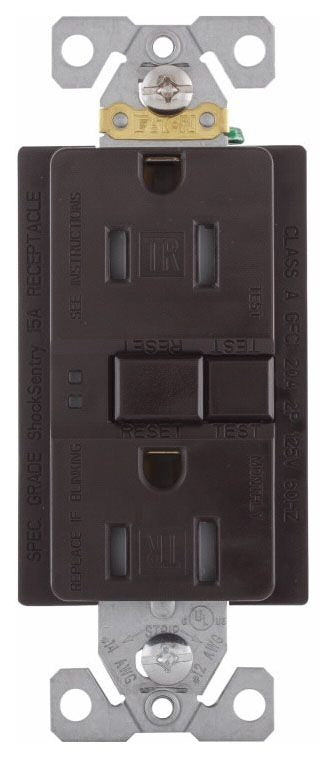

Eaton TRSGF15B Gfci Duplex Receptacle 15 A 125 V (Duplex Feed-Through) TRSGF15B

Product Description

The Eaton TRSGF15B is a GFCI duplex receptacle that provides ground-fault protection for 15 A, 125 V AC circuits in a feed-through configuration. It accepts 5-15R plugs, is two-pole and three-wire, and supports back and side wiring for 14 to 10 AWG conductors. The unit has a polypropylene top and PVC bottom, is tamper resistant, and is rated for -35 to 66 degrees C with UL 94 V-2 flammability.

• GFCI protection for 15 A, 125 V AC circuits; receptacle configuration 5-15R; duplex feed-through design
• Back and side wiring compatible with 14 to 10 AWG; two-pole, three-wire construction; polypropylene top and PVC bottom
• Tamper resistant design; approvals: UL 498/943 (US and Canada), CSA, NOM 426; operating temperature -35 to 66 degrees C

Product Highlights

Feed-through GFCI duplex receptacle, tamper resistant, back and side wiring for 14–10 AWG, UL/CSA/NOM approved.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TRSGF15B
• Country of Origin: China
