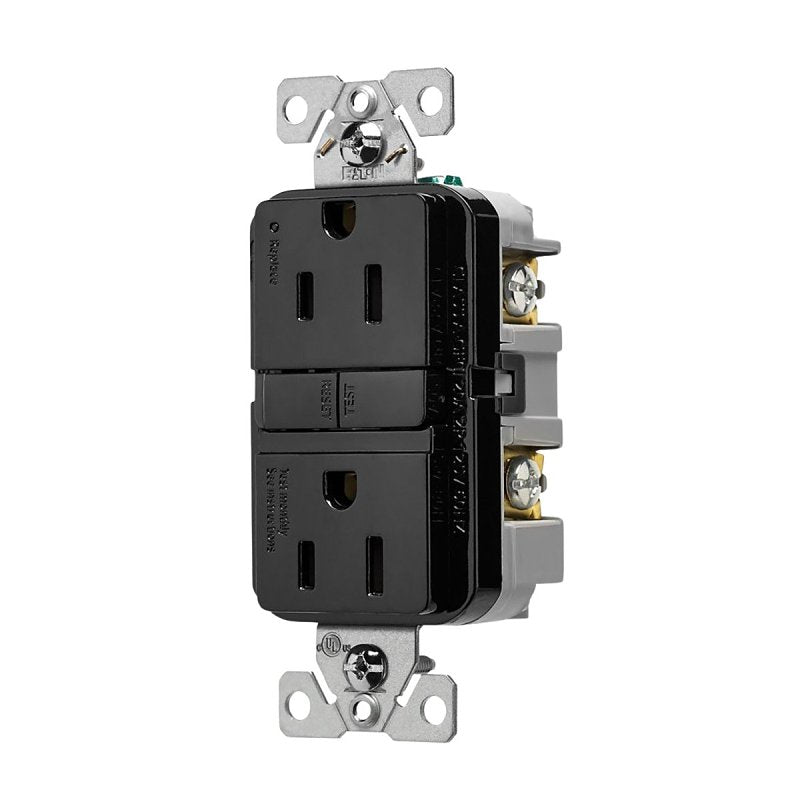

Eaton TRGF15BK Slim GFCI Receptacle 15A 125V

Product Description

The Eaton TRGF15BK slim GFCI receptacle is designed for quick installation, ease-of-use, and safety. This tamper-resistant, self-test GFCI has a slim design and is compliant with the latest UL943 and UL498 Safety Standards. It supports back and side wiring with an allowable wire size of #14-10 AWG.

• Slim design
• Self-test
• Tamper resistant

Product Highlights

Offers a slim depth for quick installation and a crisp, visually appealing design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TRGF15BK
• Country of Origin: CHN

Technical Specifications

• Catalog Number: TRGF15BK
• UPC: 032664013003
• Product Length/Depth: 1.03 in
• Product Height: 4.19 in
• Product Width: 1.69 in
• Certifications: cULus Listed NOM
• Product Type: Slim GFCI receptacle
• Special features: Slim design
• Type: Self-test
• Amperage Rating: 15A
• Voltage rating: 125V
• Circuit interrupter type: GFCI
• Packaging type: ED Box
• Features: Tamper resistant
• Wiring method: Back and side wire
• Allowable wire size: #14-10 AWG
• NEMA configuration: 5-15R
• Torque rating: 16 lbf-in
• Voltage: 125 V
• Amperage: 15 A
• NEMA Rating: 5-15R
• Socket Type: GFCI
• Wiring Type: Back, Side
• Number of Poles: 2
• Short Circuit Current Rating: 10 kA
• Grounding Type: Self-Grounding
• Number of Wires: 3
• Wire Size: 14 to 10 AWG
• Operating Temperature: -35 to 66 deg C
• Material: Polycarbonate/PVC/Thermoplastic
• Dimensions: 4.19 in H x 1.69 in W x 1.03 in D
