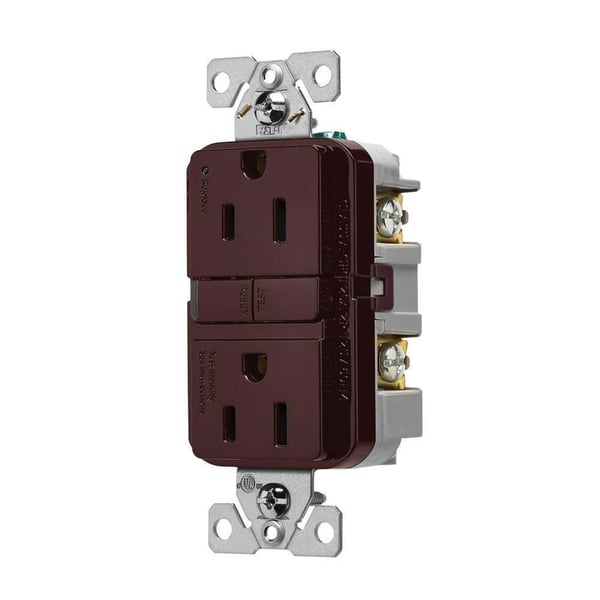

Eaton TRGF15B Slim GFCI Receptacle 15A 125V

Product Description

The Eaton TRGF15B slim GFCI receptacle is designed for quick installation, ease-of-use, and safety. This tamper-resistant, self-test GFCI has a slim design and complies with the latest UL943 and UL498 Safety Standards. It is a power connector receptacle with female sockets NEMA 5-15R for free hanging (in-line) use.

• Slim design
• Self-test functionality
• Tamper resistant

Product Highlights

Offers quick installation and a slim design that is both visually appealing and intuitive. Compliant with UL safety standards.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TRGF15B
• Country of Origin: CHN

Technical Specifications

• Catalog Number: TRGF15B
• UPC: 032664012990
• Product Length/Depth: 1.03 in
• Product Height: 4.19 in
• Product Width: 1.69 in
• Certifications: cULus Listed NOM
• Product Type: Slim GFCI receptacle
• Special features: Slim design
• Type: Self-test
• Amperage Rating: 15A
• Voltage Rating: 125V
• Circuit interrupter type: GFCI
• Packaging type: ED Box
• Features: Tamper resistant
• Wiring method: Back and side wire
• Allowable wire size: #14-10 AWG
• NEMA configuration: 5-15R
• Torque rating: 16 lbf-in
• Brand: Eaton Wiring Devices
• MPN: One Size TRGF15B
• Country of Origin: United States
• Connector Style: NEMA 5-15R
• Connector Type: Receptacle, Female Sockets
• Current Rating (Amps): 15A
• Number of Positions: 3 per connection (2)
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Material Flammability Rating: UL94 V-2
• Ingress Protection: -
