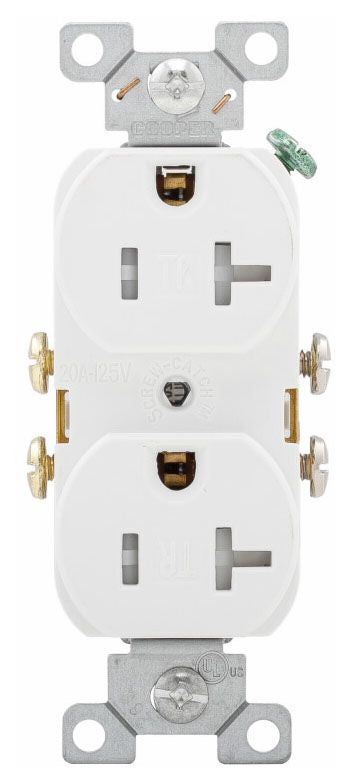

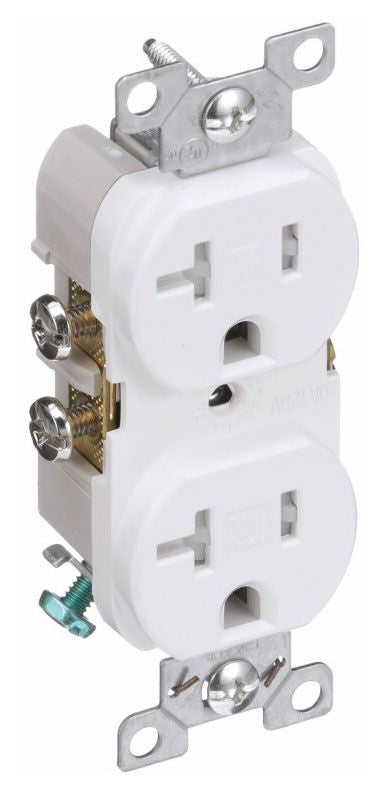

Eaton TRCR20W Straight Blade Receptacle 20A

Product Description

The EATON TRCR20W straight blade receptacle covers residential, hospital, industrial, construction, and commercial applications. This duplex heavy-duty tamper-resistant receptacle is rated at 125 VAC and 20 A. It features side wire/screw terminals and a durable impact-resistant thermoplastic face and back body.

• Heavy duty grade receptacles are designed and built for heavier use and feature enhanced ground contacts
• Tamper-resistant receptacles provide compliance with 2014 NEC Article 406.12
• Durable impact-resistant thermoplastic face and back body is virtually unbreakable and also chemical-resistant

Product Highlights

The Eaton TRCR20W is ideal for environments requiring a robust and tamper-resistant electrical connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TRCR20W
• Country of Origin: CHN

Technical Specifications

• Grade: Commercial, Heavy Duty
• Material: PVC
• NEMA Rating: NEMA 5-20R
• Series: TRCR
• Temperature Rating: -4 to 140 deg F
• Terminal Type: Side Wire/Screw
• Type: Duplex Heavy Duty Tamper-Resistant
• Voltage Rating: 125 VAC
• Current Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Configuration: 5-20R
• Ground Type: Grounding
• Wiring: Side
• Flammability Rating: UL 94 V-2
• Wire Size: 10 AWG
• Application: Indoor and Non-Residential Applications
• Allowable wire size: Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Mounting method: Flush
• Connection type: Screw
• Face/body material: Impact-resistant nylon face, PVC body
• Receptacle type: Duplex
• Operation Method: Outlet
• Maximum Amperage: 20 A
• Model: TRCR20W-BX-LW
• MPN: TRCR20W-BX-LW
• Outlet Configuration: Duplex
• Country of Origin: China
• Product Length/Depth: 1.24 in
• Product Height: 4 in
• Product Width: 0.79 in
• Certifications: cULus Listed, NOM
• Product Type: Commercial specification grade
• Device type: Receptacle
• Design type: Straight blade
• Contact material: Brass
• Features: Tamper resistant, Auto-grounding
• Device grade: Commercial
• Style type: Standard
• Torque rating: 14 lbf-inch
