Product Description

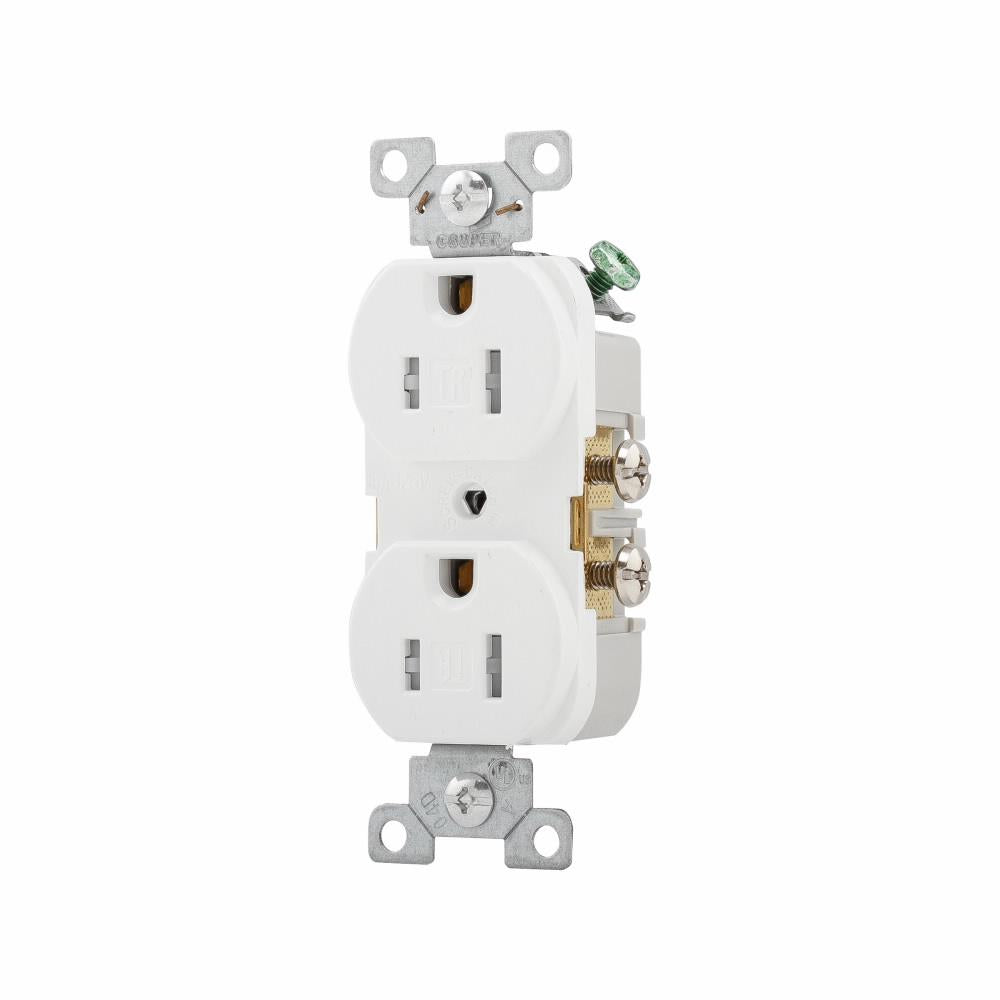

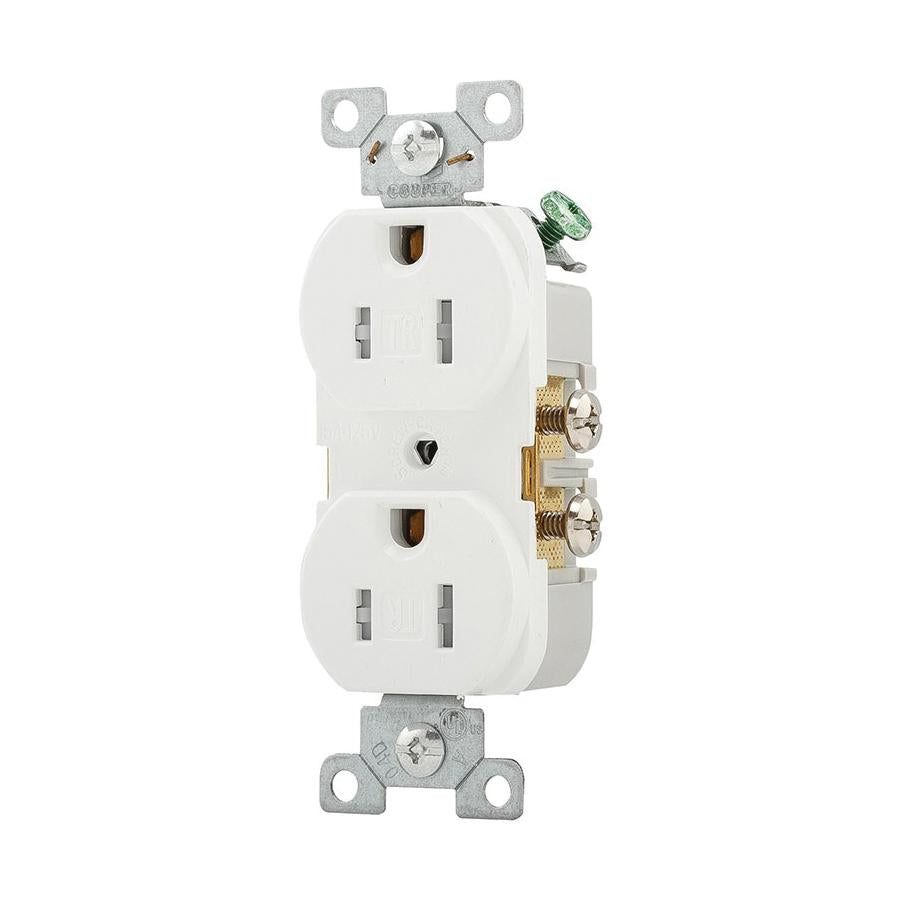

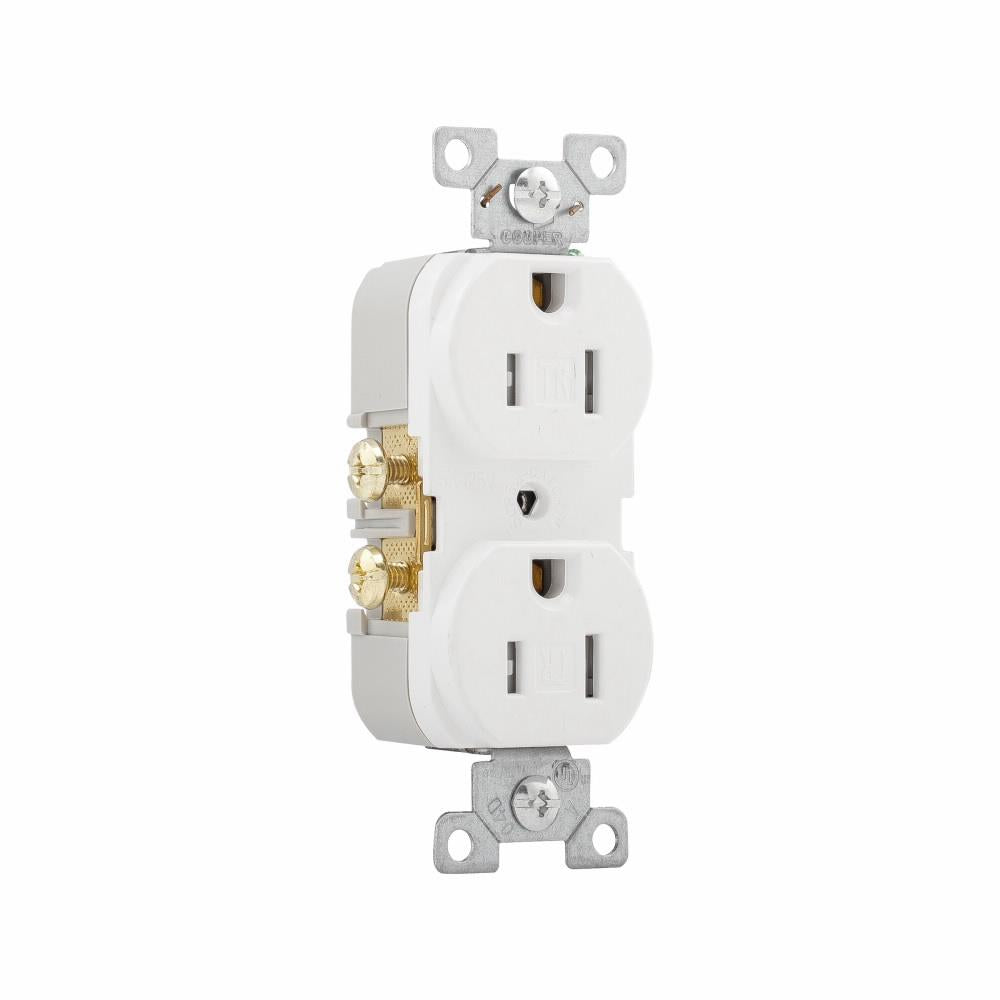

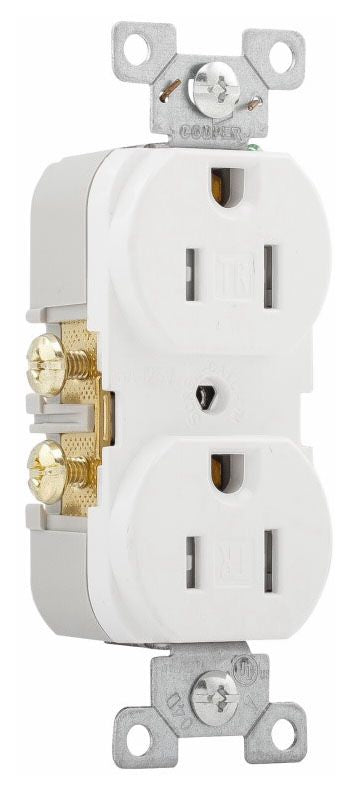

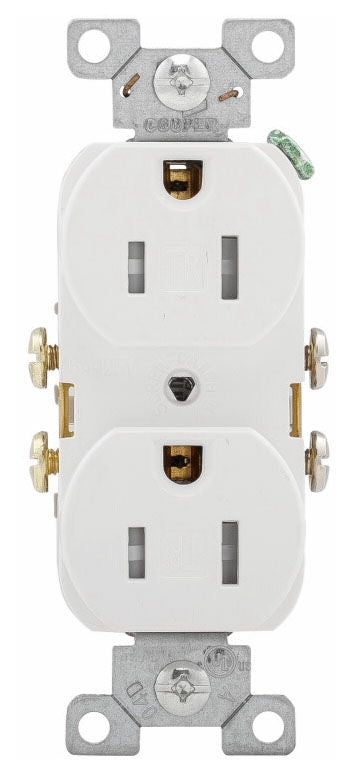

The EATON TRCR15W is a straight blade, duplex heavy-duty, tamper-resistant receptacle. This commercial-grade receptacle is designed for heavier use and features enhanced ground contacts. It is constructed with a durable, impact-resistant thermoplastic face and PVC body. It is suitable for residential, commercial, and industrial applications.
- Compliant with 2014 NEC Article 406.12 for tamper-resistant receptacles in dwelling units.
- Side wire terminals accept up to 10 AWG solid wire.
- Automatic grounding system eliminates the need for bonding jumper in grounded metal enclosures.
Product Highlights
The EATON TRCR15W receptacle is ideal for any application. It features a heavy-duty grade, tamper-resistant design, and durable construction.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: TRCR15W
-
Country of Origin: CHN
Technical Specifications
-
Grade: Commercial
-
Material: PVC
-
NEMA Rating: NEMA 5-15R
-
Series: TRCR15
-
Temperature Rating: -4 to 140 deg F
-
Terminal Type: Side Wire/Screw
-
Type: Duplex Heavy Duty Tamper-Resistant
-
Voltage Rating: 125 VAC
-
Amperage Rating: 15 A
-
Number of Poles: 2
-
Number of Wires: 3
-
Configuration: 5-15R
-
Ground Type: Grounding
-
Wiring: Side
-
Approval: UL (Canada and US), UL 498, NOM 426
-
Flammability Rating: UL 94 V-2
-
Wire Size: 10 AWG
-
Certifications: cULus Listed, NOM
-
Product Type: Commercial specification grade
-
Device type: Receptacle
-
Receptacle type: Duplex
-
Contact material: Brass
-
Features: Tamper resistant, Auto-grounding
-
Application: Commercial
-
Device grade: Commercial
-
Wiring method: Side wire
-
Mounting method: Flush
-
Number of poles: Two-pole
-
Style type: Standard
-
Packaging type: Core pack
-
Connection type: Screw
-
Allowable wire size: Side Wiring: #10-14 Copper or Copper Clad Aluminum
-
Torque rating: 14 lbf-inch
-
Design type: Straight blade
-
Face/body material: PVC body, Impact-resistant nylon face
