Eaton TR8300V Recp Hg Tr Dup 20A 125V

Product Description

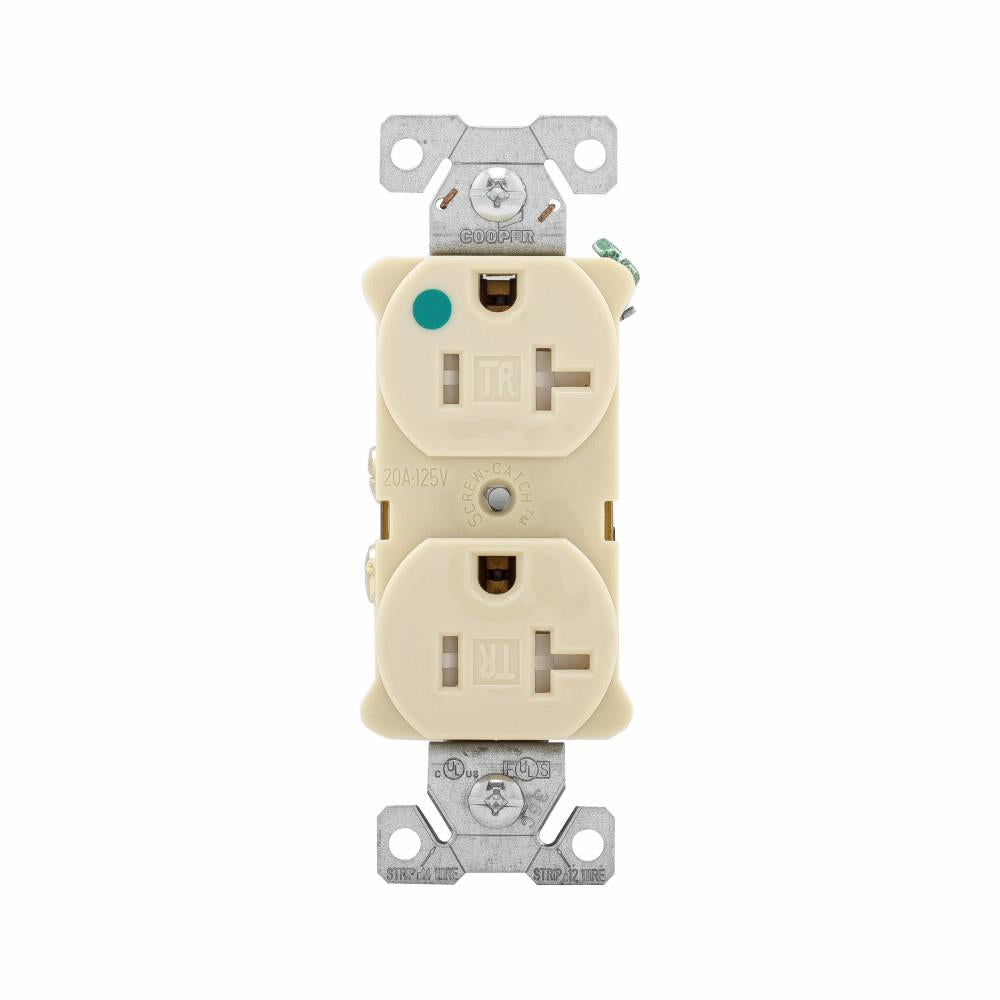

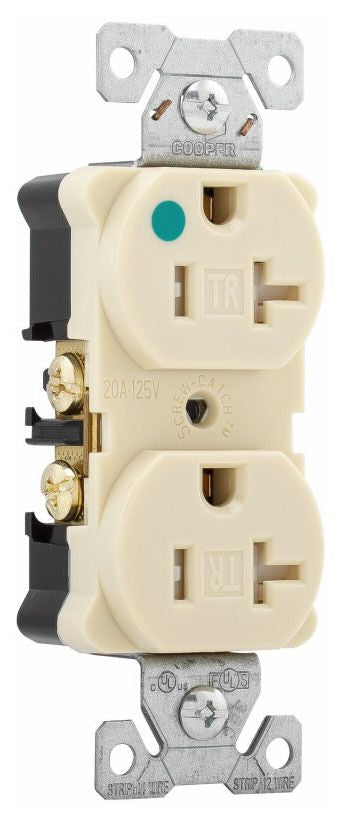

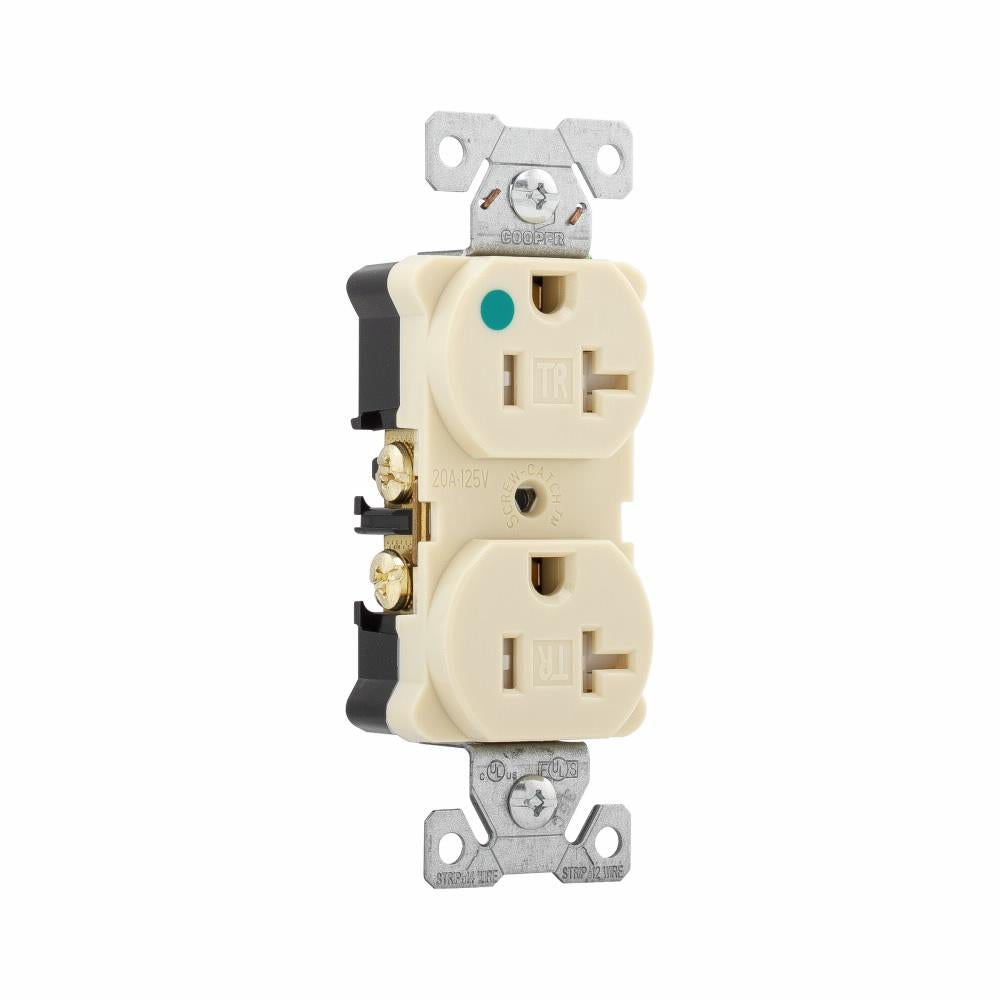

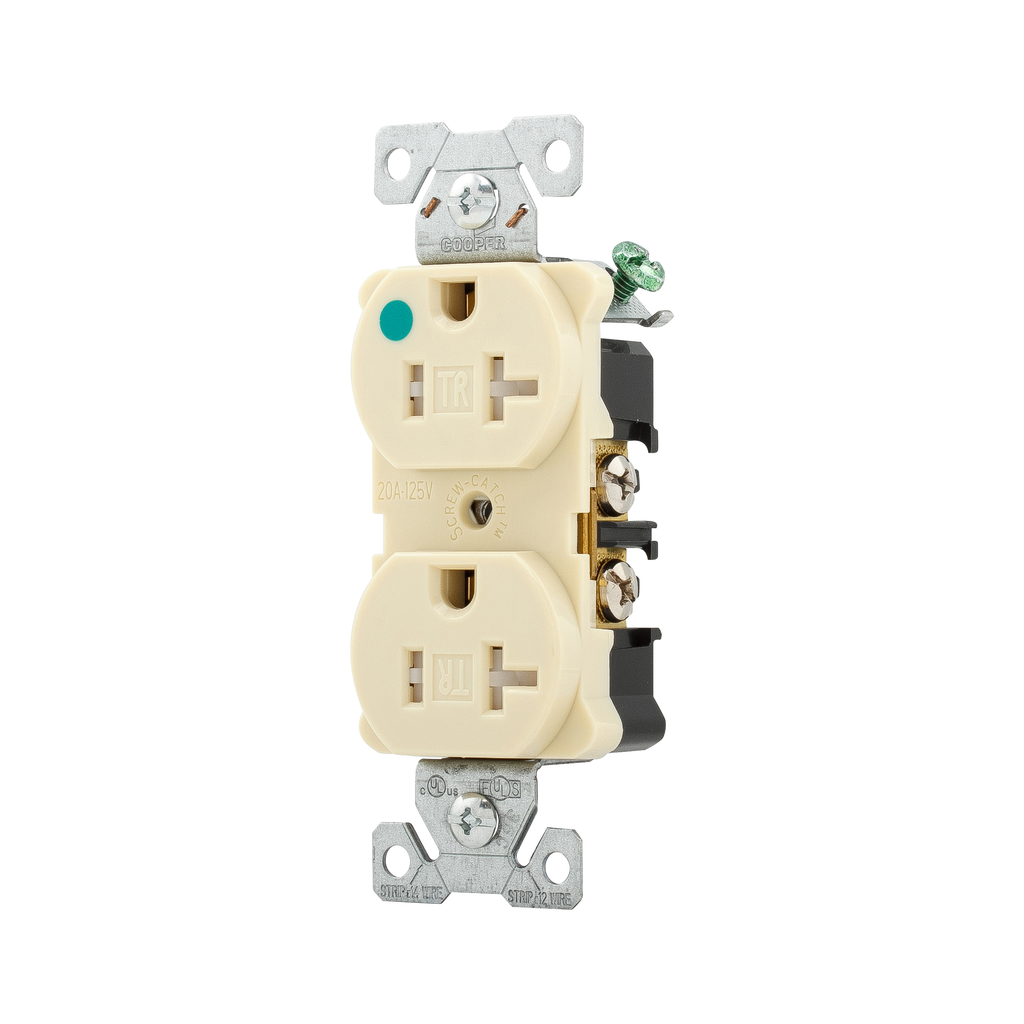

The Eaton TR8300V Arrow Hart heavy-duty hospital grade duplex receptacle is rated for 125V and 20A. Constructed with an impact-resistant nylon face and a PVC body, it supports back and side wiring with #14-10 AWG. This receptacle is suitable for industrial use and provides a consistent means of connectivity where downtime can be critical.

• Heavy-duty hospital grade
• Tamper-Resistant
• Impact-Resistant

Product Highlights

This receptacle features a NEMA 5-20R configuration, a flush mounting type, and is UL and CSA approved. It is ideal for healthcare and industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR8300V
• Country of Origin: CHN

Technical Specifications

• NEMA Rating: NEMA 5-20R
• Type: Duplex, Straight Blade
• Brand: Eaton
• Grade: Hospital
• Width: 0.84 in
• Height: 4.19 Inch
• Length: 1.3 Inch
• Voltage Rating: 125 Volt AC
• Amperage Rating: 20 Amp
• Material: Nylon
• Sub Brand: Eaton Wiring Devices
• Wire Size: 14-10 AWG
• Applications: For Industrial Use
• Mounting Type: Flush
• Conductor Size: 14-10 AWG
• Connection Type: Screw
• Number of Poles: 2
• Number of Wires: 3
• Contact Material: Brass
• Temperature Rating: -20 to 60 degrees C
• Environmental Conditions: Hospital Grade
• Series: TR8300
• Terminal Type: Screw
• Flammability Rating: UL 94-V2
• Application: Industrial Receptacle Applications
• NEMA Configuration: 5-20R
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Special Properties: Tamper Resistant
• Constructional Feature: Chemical/Impact/Tamper Resistant
• Configuration: NEMA 5-20R
• Ground Type: Grounding
• Wiring: Back, Side
• Approval: UL (Canada and US), UL 498, NOM 426
• RoHS Compliant: True
• Overall Dimension: 1.3 Inch Width x 0.84 Inch Depth x 4.19 Inch Height
• Design type: Straight blade
• Face/body material: PVC body, Impact-resistant nylon face
• Receptacle type: Duplex
• Allowable wire size: Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum
