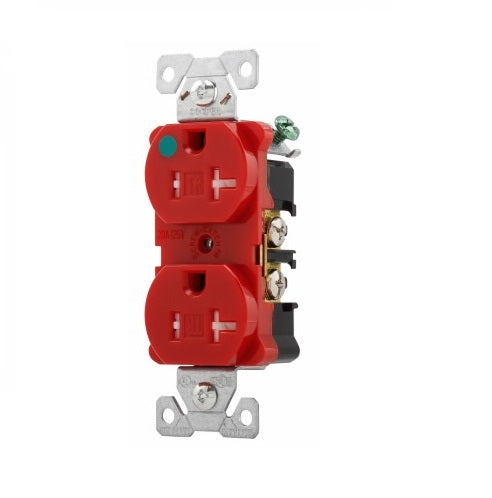

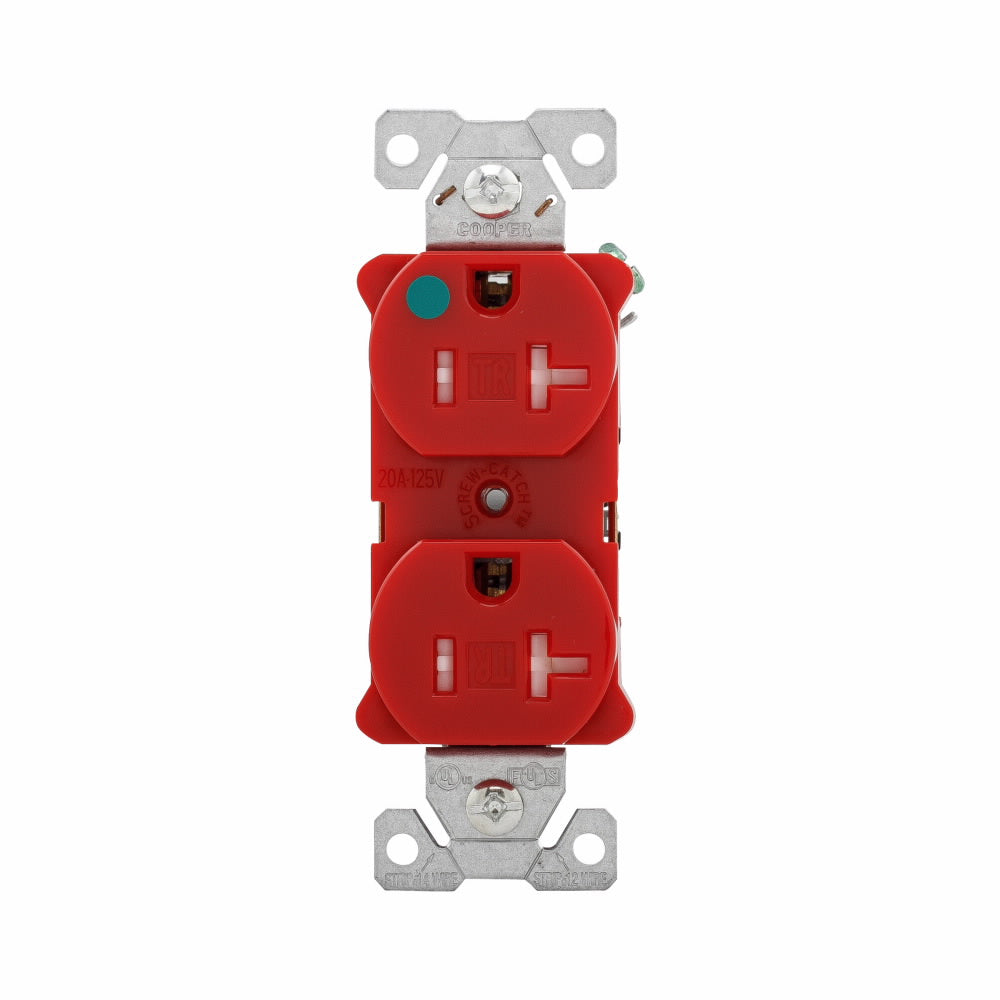

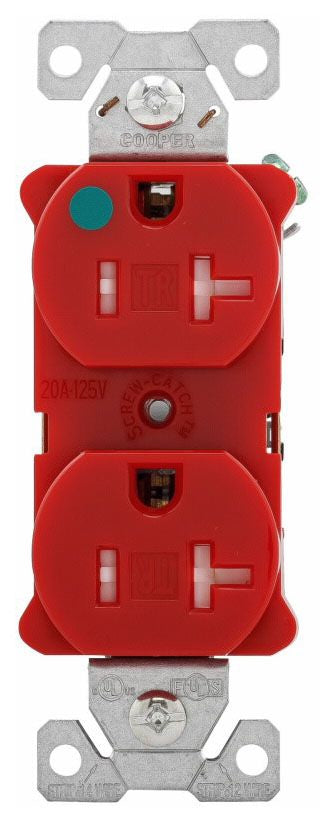

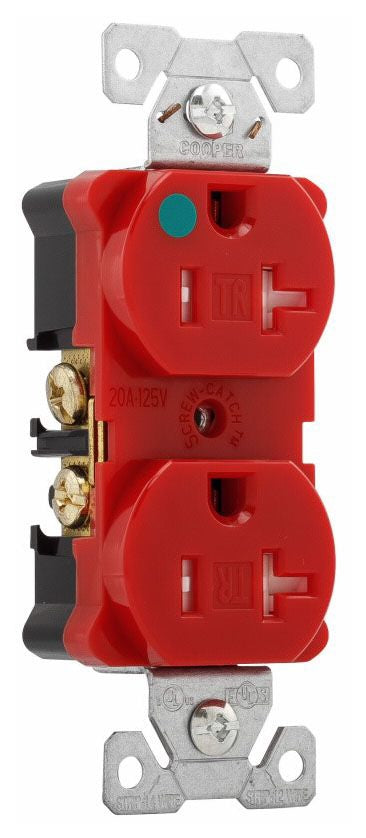

Eaton TR8300RD straight blade receptacle 20 amp

Product Description

The Eaton TR8300RD is a hospital specification grade straight blade tamper-resistant receptacle with back and side wiring. This Arrow Hart series receptacle meets UL 498 and Federal Specification W-C-596 requirements. It provides compliance with 2011 NEC Article 406.12. Designed for industrial and hospital applications.

• Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
• Long, broad mounting strap helps reach large panel cut-outs for code compliance
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure

Product Highlights

This Eaton straight blade receptacle is a tamper-resistant, industrial/hospital grade receptacle with a NEMA 5-20R rating.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR8300RD
• Country of Origin: CHN

Technical Specifications

• Grade: Industrial/Hospital
• Material: Polycarbonate
• NEMA Rating: NEMA 5-20R
• Series: TR8300
• Temperature Rating: -20 to 90 Deg C
• Terminal Type: Screw
• Type: Compact Duplex Tamper-Resistant
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Application: Healthcare
• Standards/Approvals: UL 498|UL File No. E15058|cULus Listed|Federal Specification W-C-596G|CSA C22.2 File No. 42|CSA File No. 6914|CSA File No. 6233 01|NOM 426 Certified|UL 94 V-2 Flammability Rated
• Configuration: NEMA 5-20R
• Ground Type: Grounding
• Wiring: Back, Side
• RoHS Compliant: True
• Wire Size: 14 to 10 AWG
• Connection Type: Screw
• Mounting Type: Flush
• Flammability Rating: UL 94-V2
• Device type: Receptacle
• Contact material: Brass
• Features: Tamper resistant, Auto-grounding
• Device grade: Heavy-duty hospital grade
• Wiring method: Back and side
• Number of poles: Two-pole
• Style type: Standard
• Packaging type: Core pack
• Allowable wire size: Side or Back Wiring :#10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: PVC body, Impact-resistant nylon face
• Receptacle type: Duplex
• Certifications: cULus Listed, NOM, Federal Specification Classification W-C-596F
• Product Type: Heavy-duty hospital grade
• Maximum Amperage: 20 Amp
• Maximum Voltage: 125V
• Tamper Resistant: Yes
• Plate Design: Duplex Outlet
• Mounting Style: Cable
• Outlet Configuration: Duplex
• Resistance Properties: Tamper Resistant
