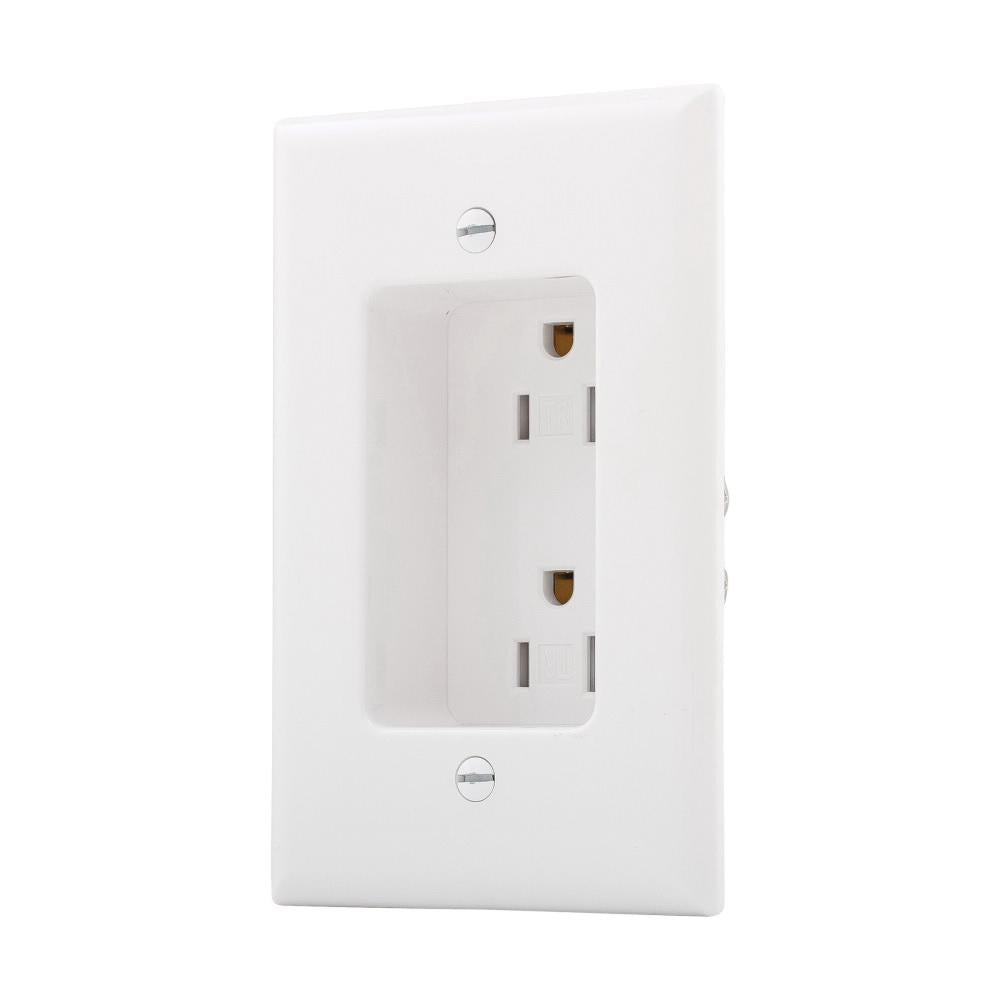

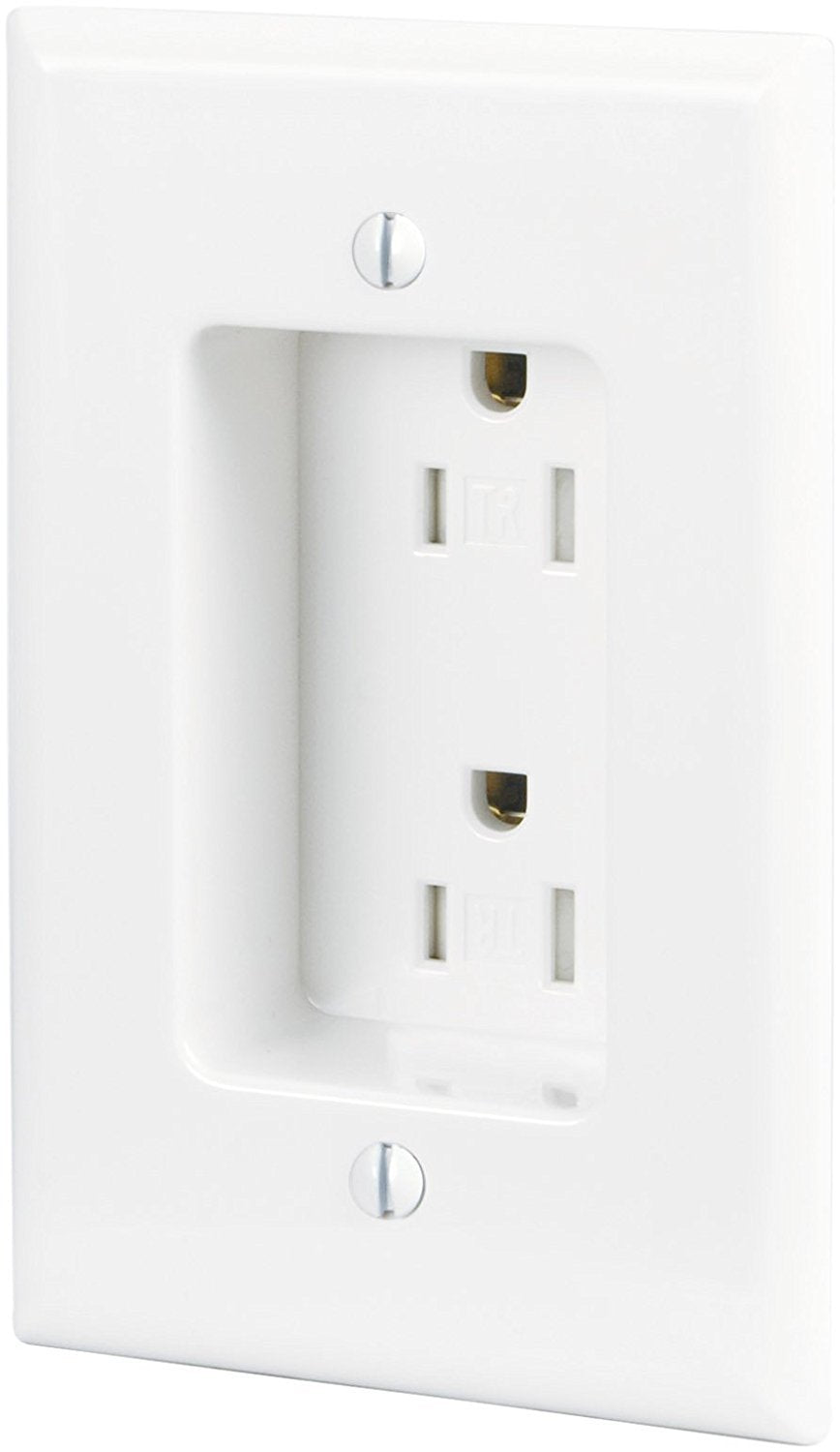

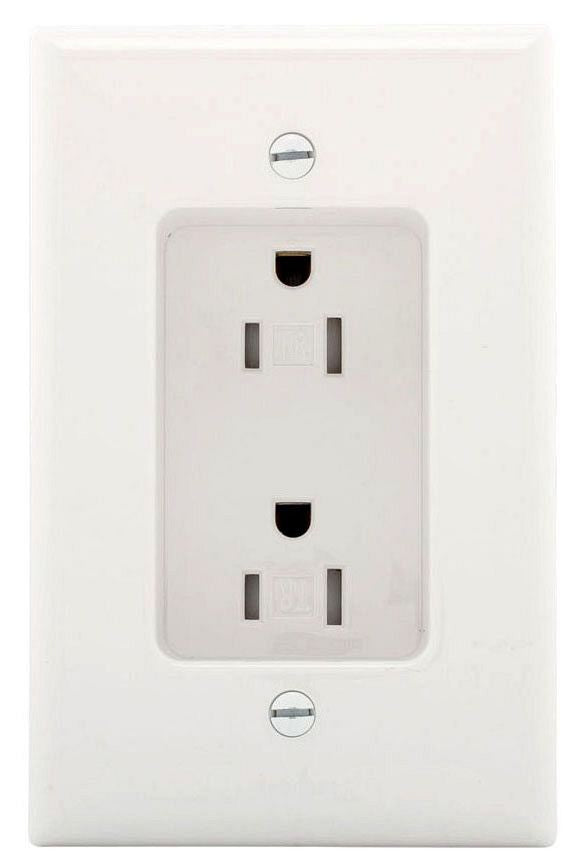

Eaton TR780W-BOX Receptacle 15A 125V

Product Description

The EATON TR780W-BOX is a tamper-resistant single and duplex receptacle that complies with 2011 NEC article 406.12. Featuring a durable, impact-resistant thermoplastic face and back body, it is designed to be virtually unbreakable. The receptacle has terminal screws backed out and ready to wire, with extra-long and wide mounting straps.

• Compliant with 2014 NEC Article 406.12 for tamper-resistant receptacles.
• Features a patented built-in wire stripper for 14 and 12 AWG wire.
• Side wire terminals accept up to 10 AWG solid wire and push-in terminals accept 14 AWG solid wire.

Product Highlights

This receptacle is ideal for residential use, offering safety and durability with easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR780W-BOX
• Country of Origin: CHN

Technical Specifications

• Grade: Residential
• Material: Thermoplastic
• NEMA Rating: NEMA 5-15R
• Series: TR780
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Back/Side Wire
• Type: Duplex/Single Recessed Tamper-Resistant
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Manufacturer: EATON
• Model / MPN: TR780W-BOX
• Application: Power and Indoor Applications
• Standards/Approvals: cULus/UL Listed|NOM Certified
• Wiring: Push And Side
• Mount: Flush
• AWG: 14-10
• Product Type: ELECTRICAL_OUTLET
• Contact material: Brass
• Mounting method: Flush
• Style type: Recessed
• Connection type: Screw
• Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Impact-resistant thermoplastic face and back body
• Receptacle type: Duplex
