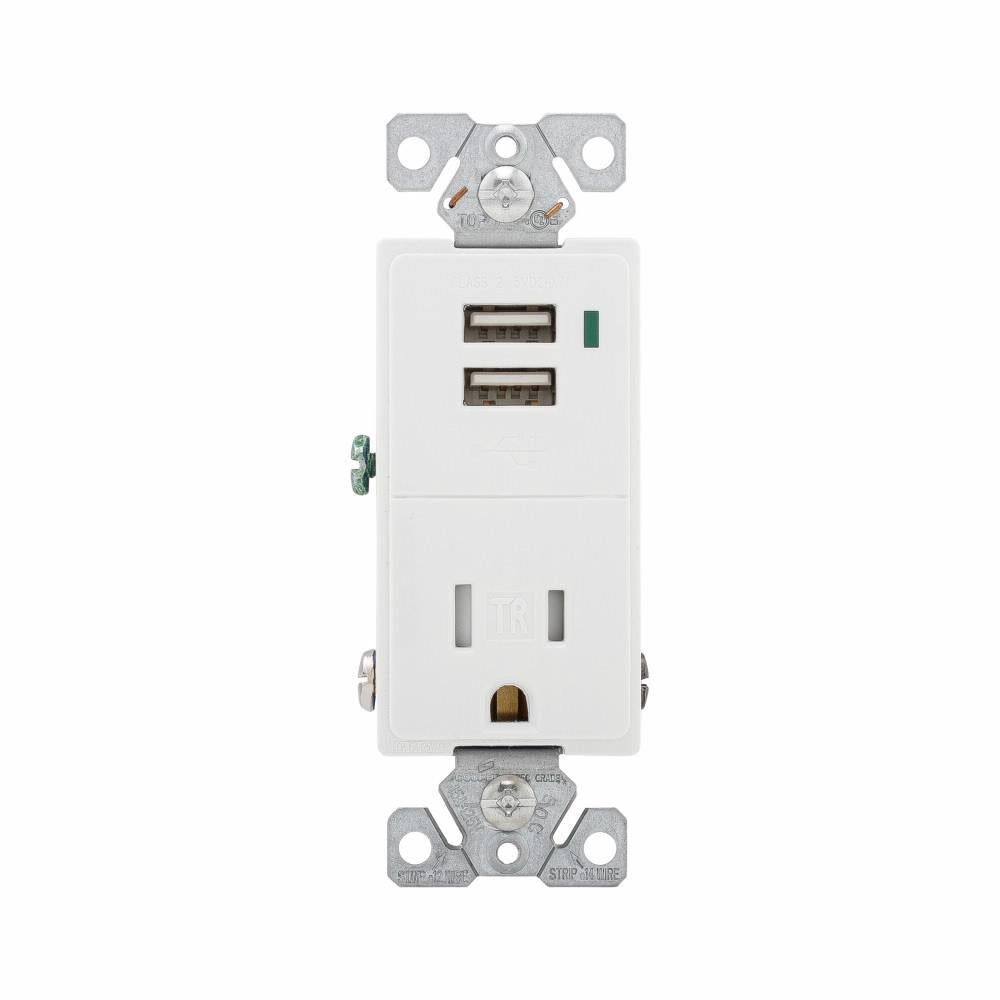

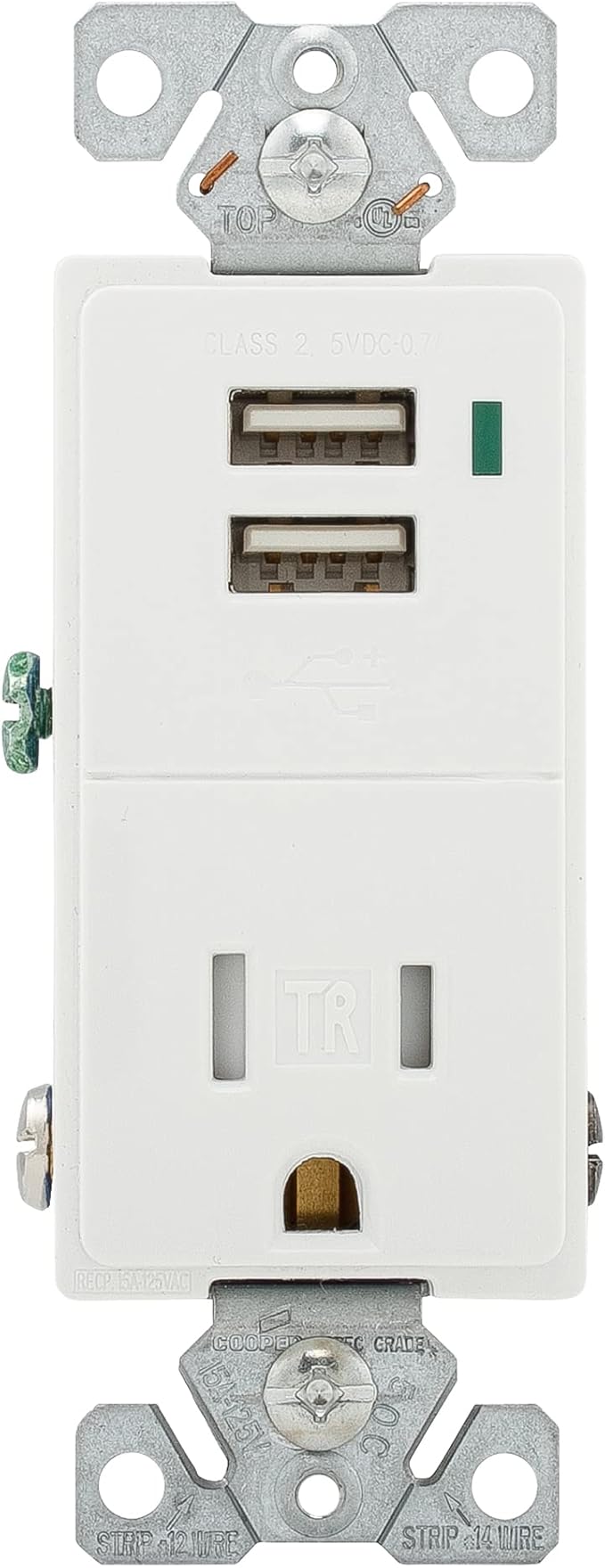

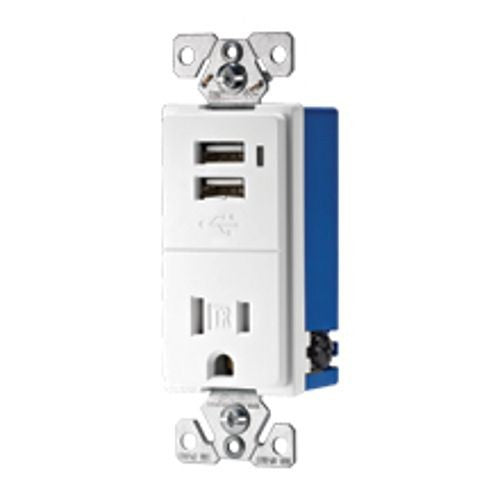

Eaton TR7740W-BOX Combination USB Charger with Tamper Resistant Receptacle 15A 125V

Product Description

The Eaton TR7740W-BOX combination USB charger with tamper-resistant receptacle allows users to charge electronic devices directly from a standard outlet without adapters. It contains UL-approved tamper-resistant shutters, complying with NEC Article 406.12. The standard AC receptacle includes dual USB charging ports. It replaces a standard duplex receptacle.

• Compact design features standard AC receptacle with dual USB charging ports
• USB ports charge any electronic device that is capable of being charged via a 5 VDC power adapter
• LED indicator light notifies user that device is charging

Product Highlights

This combination USB charger receptacle provides a convenient and safe way to charge devices. Features tamper resistance and easy installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR7740W-BOX
• Country of Origin: CHN

Technical Specifications

• Grade: Standard
• Insulation: Glass Filled Nylon
• Material: Glass Filled Nylon
• Mounting: Flush
• Type: Tamper-Resistant Combination Grounding
• USB Quantity: 2
• USB Rating: 700 mA at 5 VDC
• Wire Size: 14 to 12 AWG
• Wiring Method: Back/Side Wired
• Electrical Ratings: 15 A at 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Total Power Outlets: 1
• Voltage: 125 Volts
• Amperage: 15 Amps
• Connector Type: USB
• Connectivity Technology: USB
• Specification Met: NEMA, UL
• Catalog ID: EAGTR7740W-BOX
• Application: Airports, Homes, Hotels, Lounges and Coffee Houses, OEM Applications and Offices
• Standard & Approvals: cULus Listed, NOM Certified, RoHS Compliant, UL L1310 Listed, UL 498 Listed, UL 498 Listed
• Number of Ports: 2
• Outlet Configuration: Single
• Mounting Style: Screw
• Number of Outlets: 1
• Outlet Style: Combination, Single
• Suitable For: Ceiling, Interior, Wall
• Port Type: USB Charging
• Maximum Amperage: 15A
• Features: Indicator Light, Double USB Charging Ports
• Contact Material: Brass
• NEMA: 5-15R
• Receptacle Type: Grounding
• Style: Decorator
• Brand: Eaton
• Sub Brand: Eaton Wiring Devices
• Certifications: cULus Listed, NOM
• Volts DC: 5
• Volts AC: 125
