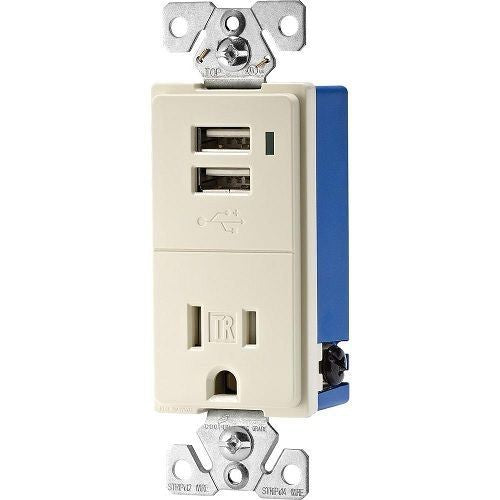

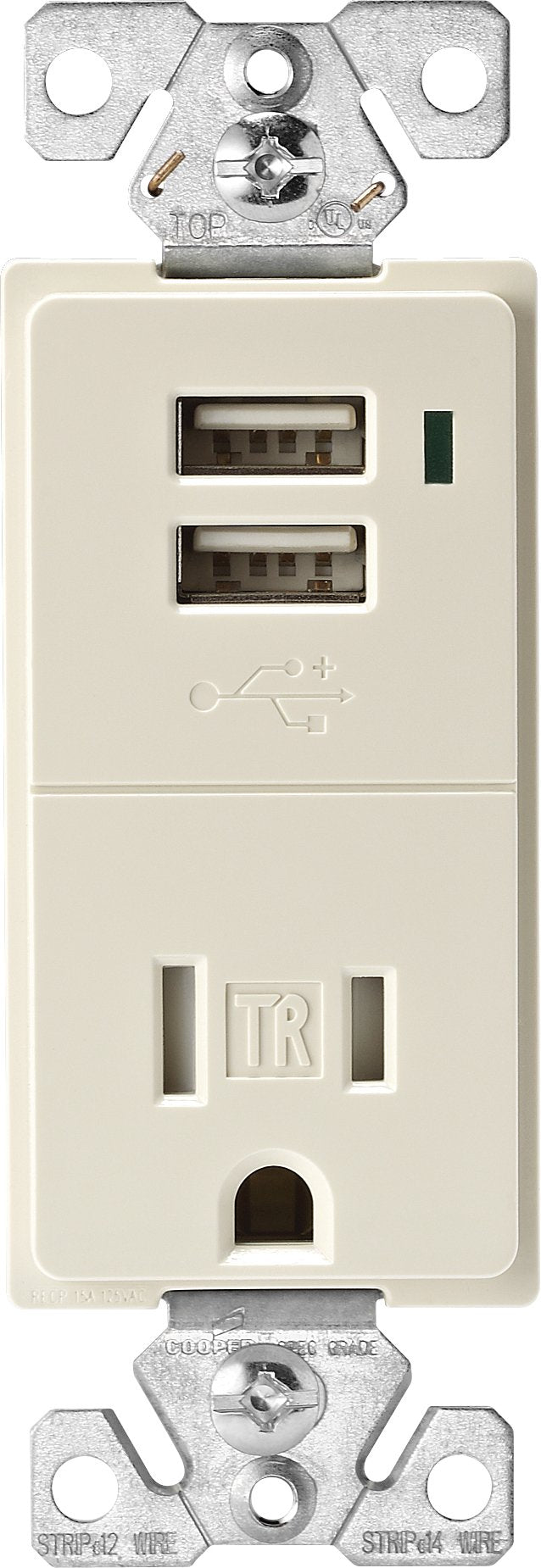

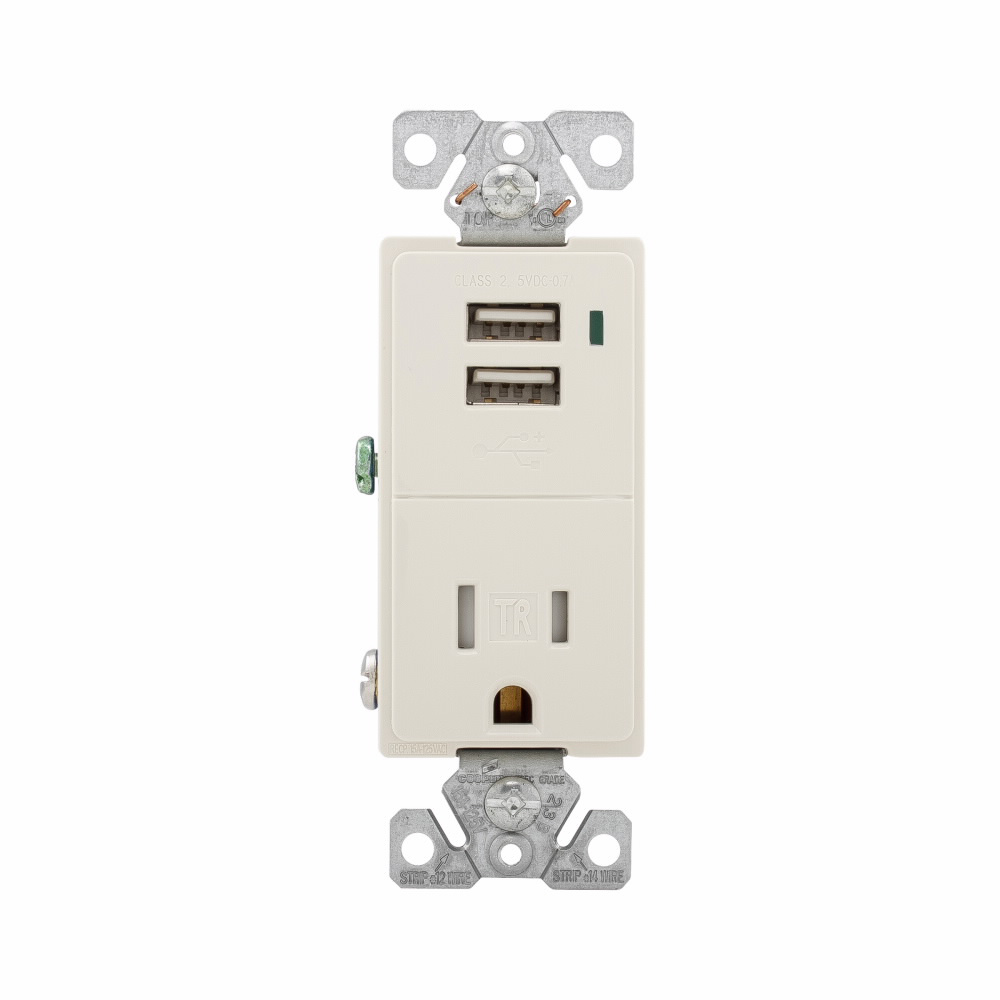

Eaton TR7740LA-BOX Combination USB Charger with Receptacle 15 Amp 125 VAC

Product Description

The Eaton TR7740LA-BOX is a combination USB charger with receptacle. This tamper-resistant device features a 15 Amp, 125 VAC rating and is designed for flush mounting. It includes a NEMA 5-15R configuration, two-pole, three-wire grounding, and a decorator thermoplastic construction.

• Combination USB charger with receptacle
• Tamper resistant
• Flush mount

Product Highlights

Offers convenient USB charging alongside a standard AC outlet, enhancing functionality and safety in residential and commercial settings.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR7740LA-BOX
• Country of Origin: US

Technical Specifications

• NEMA: 5-15R
• Type: Residential
• Brand: Eaton
• Width: 1.75 in
• Height: 1.88 Inch
• Length: 4-1/2 Inch
• Voltage: 125 Volt
• Amperage: 15 Amp
• Material: Thermoplastic
• Standard: UL
• Sub Brand: Eaton Wiring Devices
• Wire Size: 14-12 AWG
• Mounting Type: Flush
• Conductor Size: 14-12 AWG
• Connection Type: Screw
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Temperature Rating: -20 to 60 degrees C
• Manufacturer: EATON
• Model / MPN: TR7740LA-BOX
• Number of Items: 1.0
• Product Type: ELECTRICAL_OUTLET
• Product Group: Home Improvement
• Compatible Devices: All
• Total Power Outlets: 3
• Connector Type: USB
• Connectivity Technology: USB
• Specification Met: UL
• Mounting: Flush
• USB Quantity: 2
• Application: Airports, Homes, Hotels, Lounges and Coffee Houses, OEM Applications and Offices
• Standard & Approvals: cULus Listed, NOM Certified, RoHS Compliant, UL L1310 Listed, UL 498 Listed
• Wiring Method: Back and Side Wire
• USB Rating: 5 VDC 700 mA
• Electrical Rating: 125 VAC 15 A, 5 VDC 0.7 A
• Catalog ID: EAGTR7740LA-BOX
• Insulation: Nylon
• Grade: Standard
• MODEL: TR7740LA-BOX
