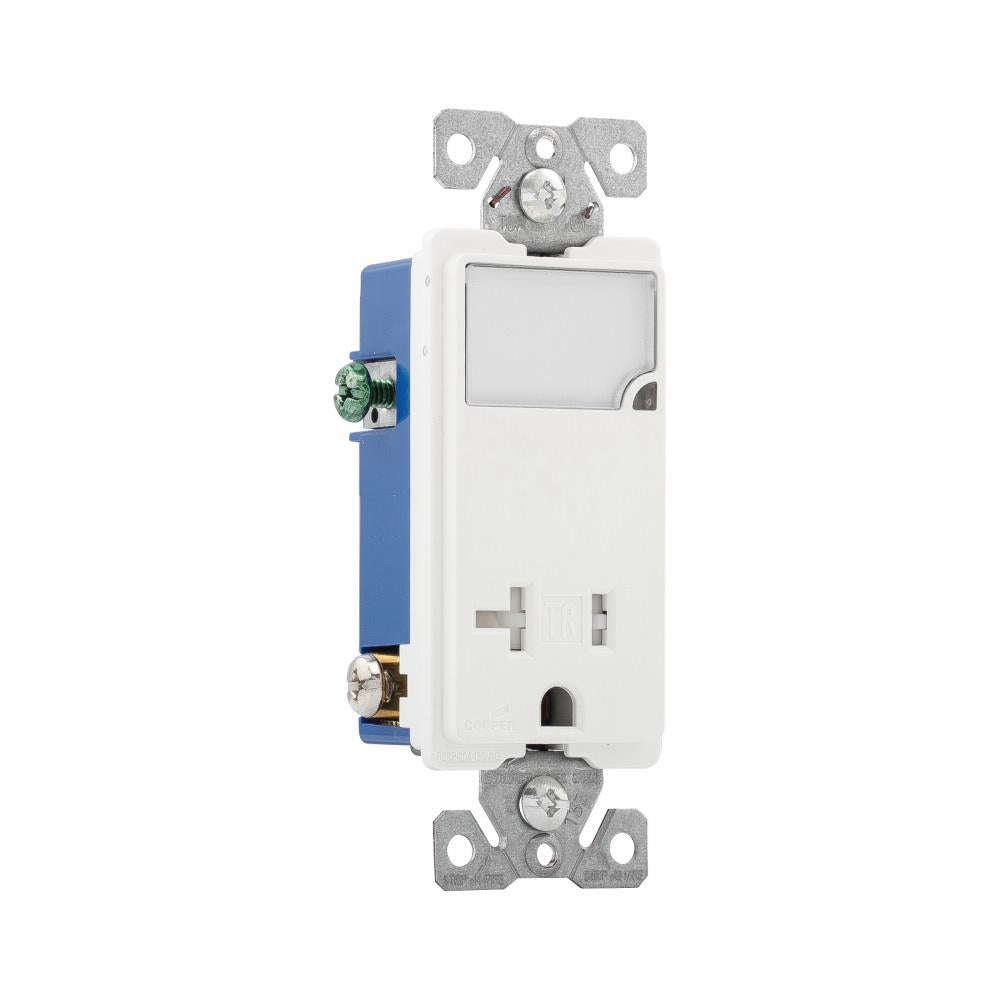

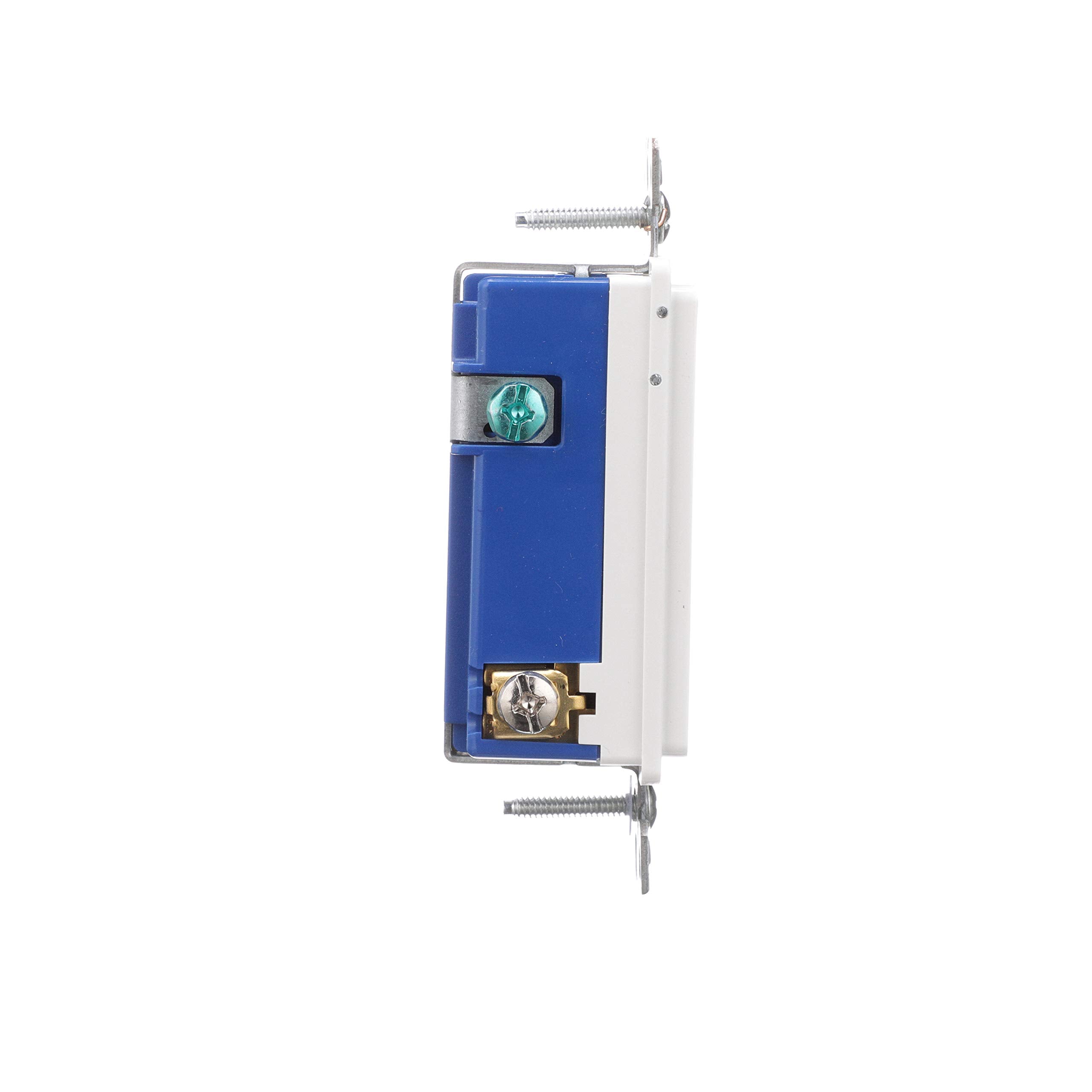

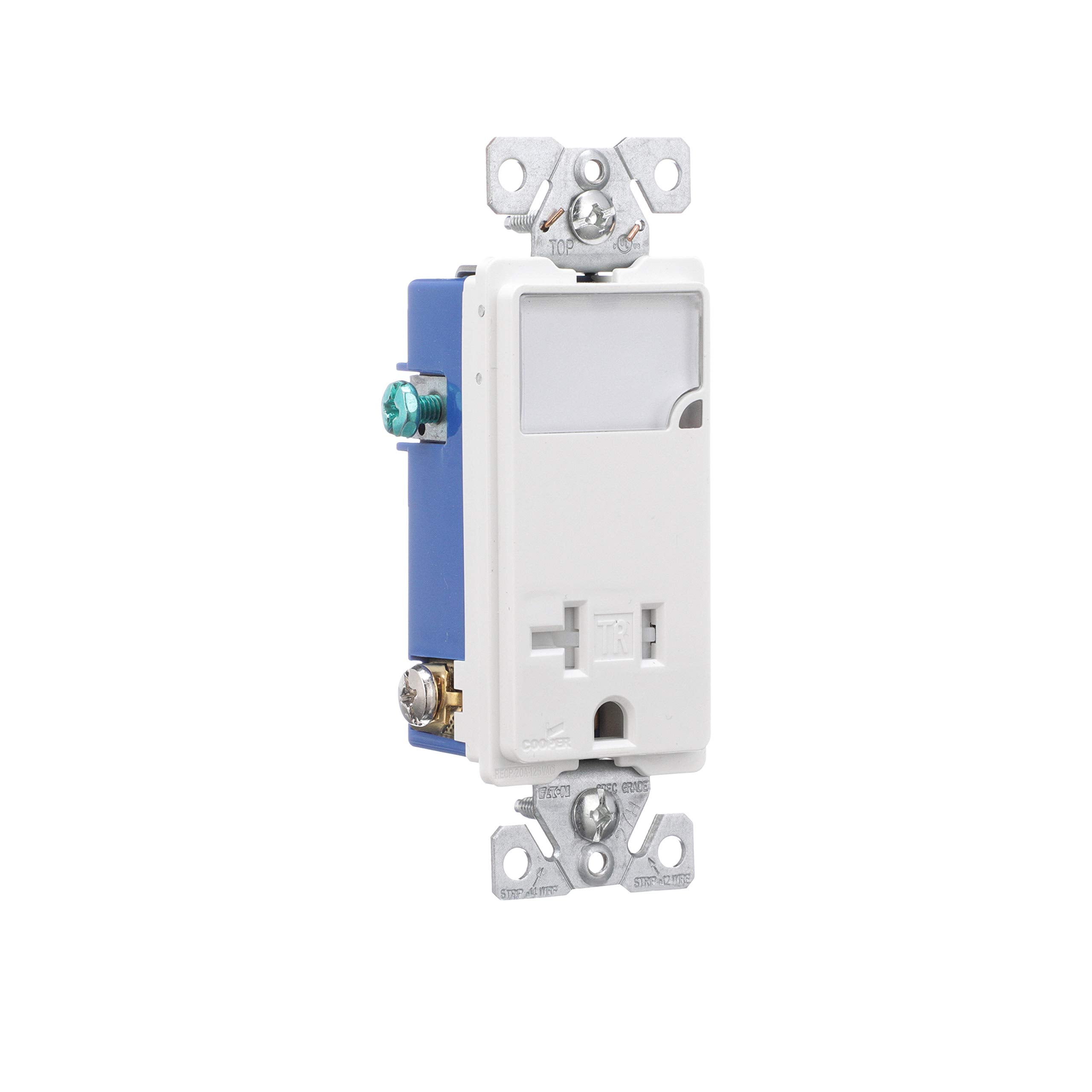

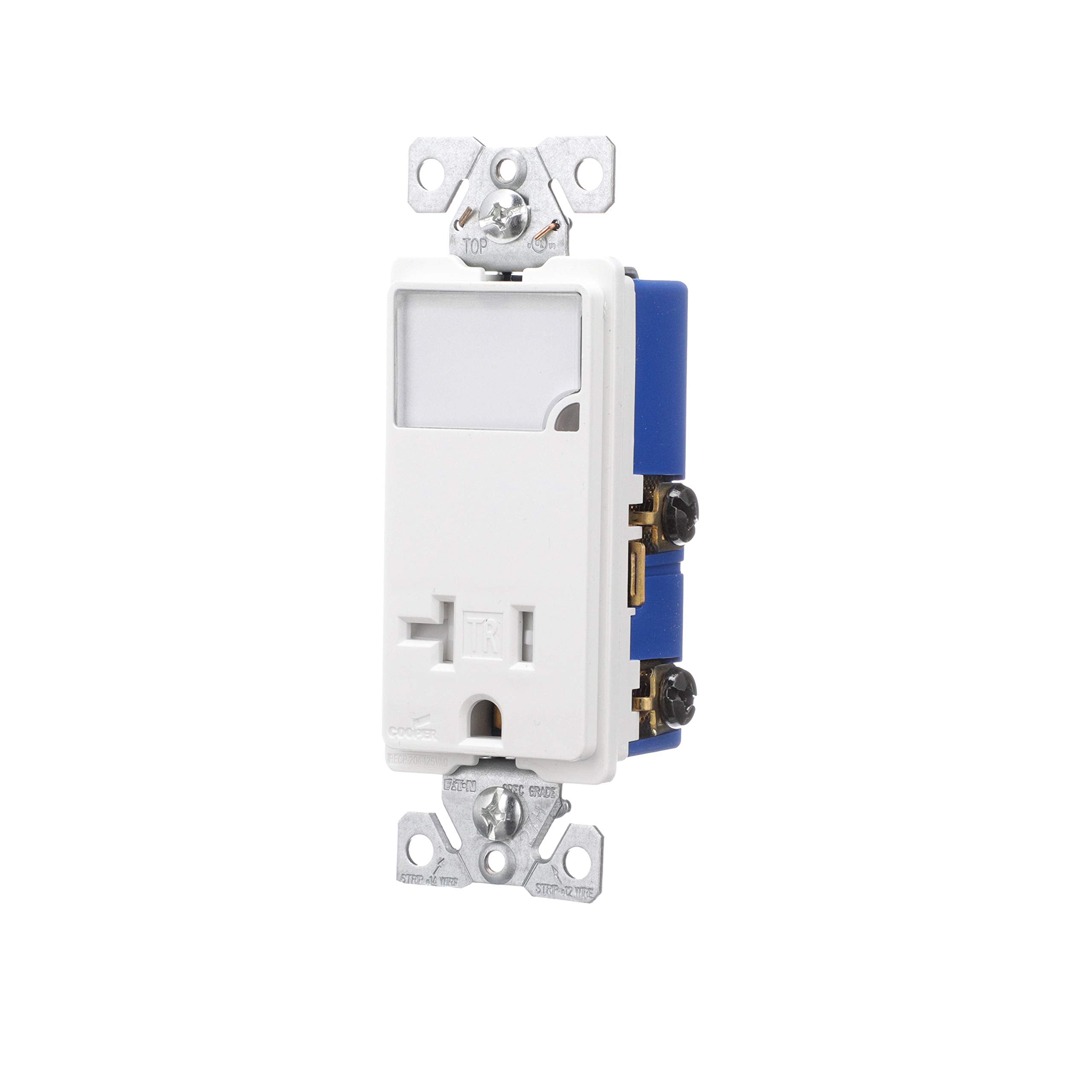

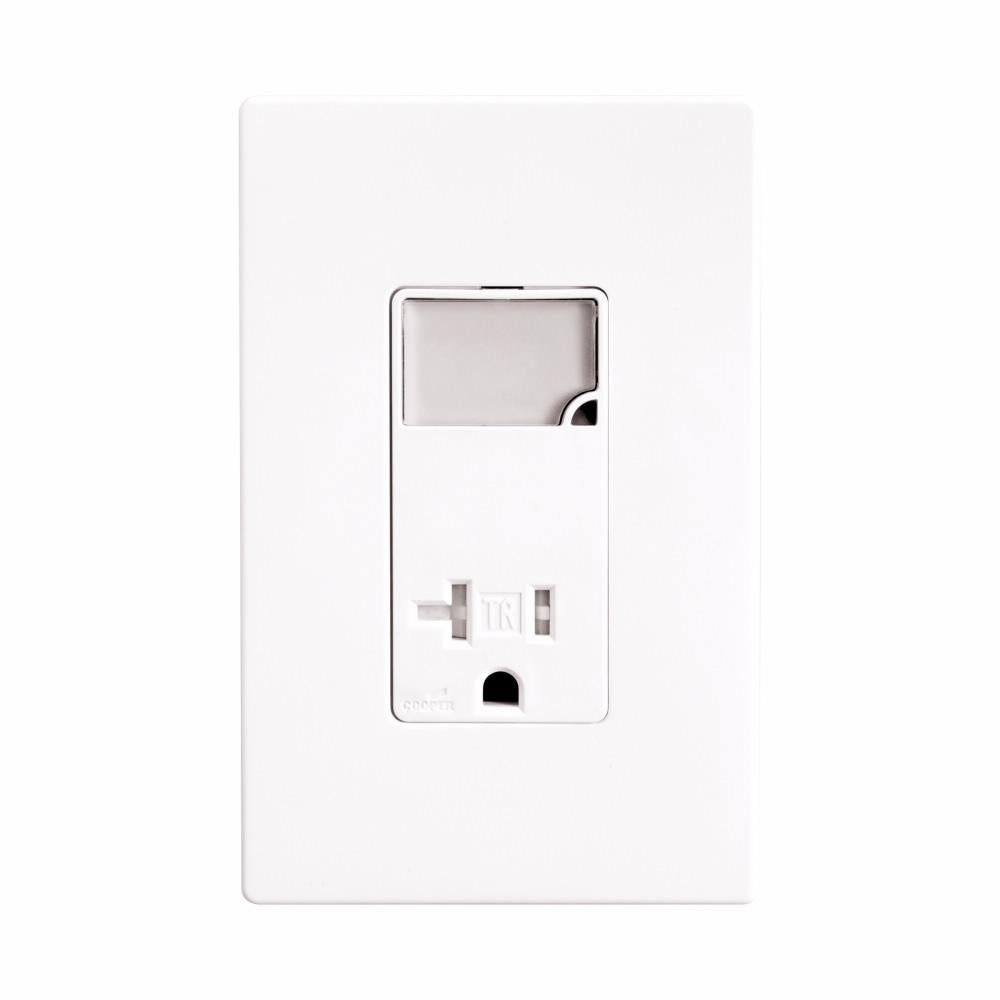

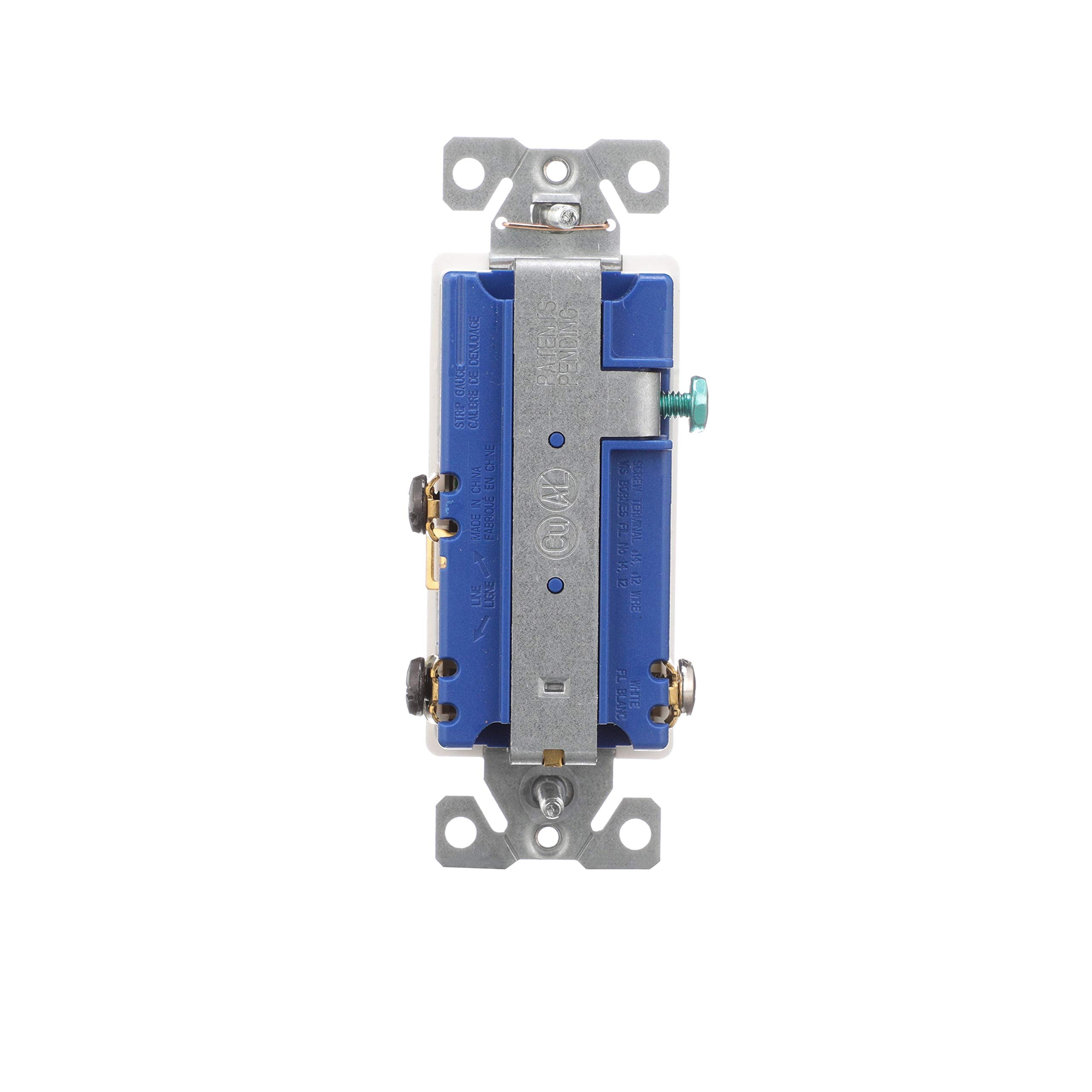

Eaton TR7736W-BOX Combination Nightlight with Tamper Resistant Receptacle 1 W

Product Description

The EATON TR7736W-BOX dimmable LED nightlight combination with tamper-resistant receptacle is suitable for bathrooms, hallways, stairs, and landings. This flush mount LED nightlight combination device provides added safety and comfort along with TR receptacle functionality. The nightlight features low-wattage LED lamps, dimmable to the desired light level. It has a single NEMA 5-15R 2-Pole, 3-Wire receptacle.

• Combination nightlight/receptacle features UL listed tamper resistant shutters that prevent the insertion of foreign objects.
• Ambient light sensor turns the nightlight on when ambient light is low and off when ambient light is high.
• Night lights are dimmable to desired light level.

Product Highlights

This combination nightlight receptacle is tamper-resistant and features long-lasting, energy-efficient LED bulbs rated for 50000 hours of lamp life. It has an automatic grounding system and a convenient built-in wire stripper for faster installation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR7736W-BOX

Technical Specifications

• Amperage Rating: 20 A
• Average Life: 50000 hr
• Lumens: 140 Lumens
• Mounting Type: Flush
• Type: Single receptacle with nightlight
• Lamp Type: LED
• Fixture Wattage: 1 W
• Voltage Rating: 120 to 277 VAC
• Housing Finish: White
• Manufacturer: EATON
• Model / MPN: TR7736W-BOX
• Certifications: cULus Listed
• Product Type: Combination nightlight with receptacle
• Contact material: Brass
• Features: Tamper resistant Dimmable
• Wiring method: Screw terminals
• Number of wires: Three-wire
• Number of poles: Two-pole
• Material: Thermoplastic
• Style: Decorator
• Allowable wire size: #12-14 AWG
• Combination type: Night light
• Design type: Receptacle
• Receptacle type: Two-pole, three-wire, grounding
