Eaton TR7735W 3-Wire Receptacle Combo Nightlight with Tamper Resistant 2-Pole

Product Description

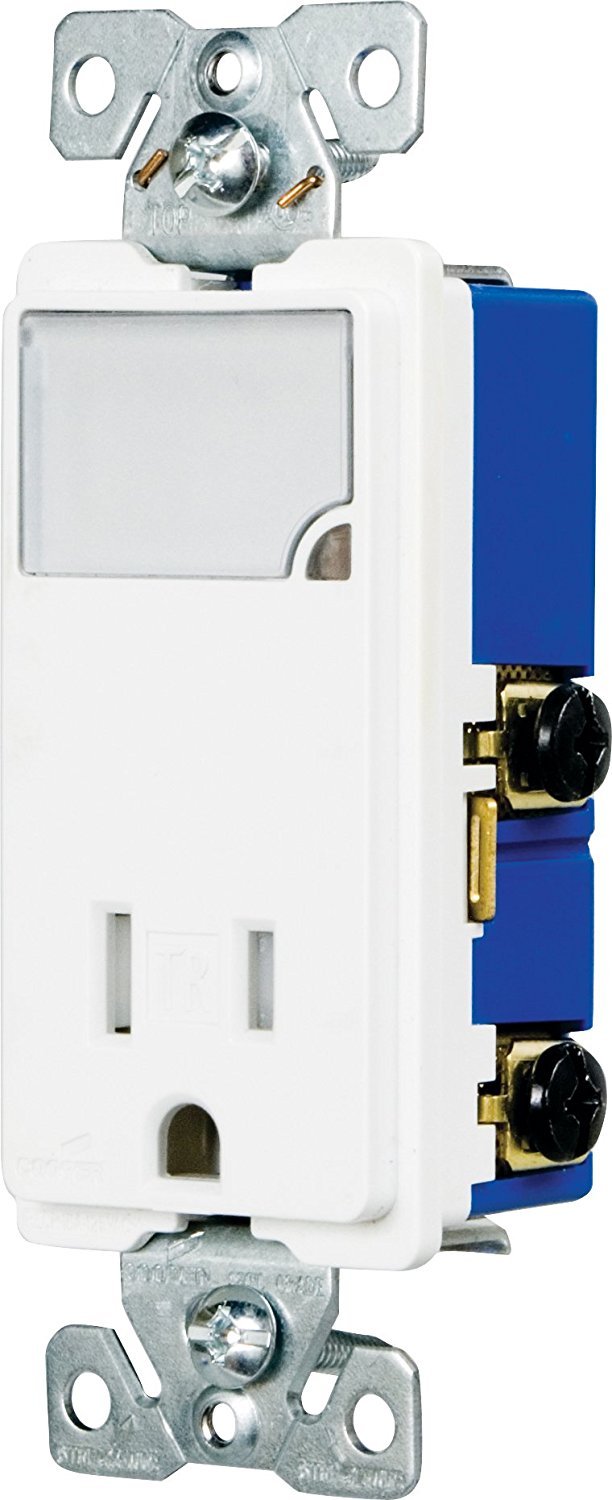

The Eaton TR7735W Combo Nightlight with Tamper Resistant 2-Pole, 3-Wire Receptacle is ideal for bathrooms, hallways, stairs, and landings. The nightlight uses 1-watt with 120-volts while the receptacle operates with 15-amps with 125-volts. It features an ambient light sensor and uses long-lasting energy efficient LED bulbs rated for 50,000-hour lamp life.

• Nightlight uses 1-watt with 120-volts while the receptacle operates with 15-amps with 125-volts
• Features an ambient light sensor that turns the nightlight on when the ambient light is low, and off when the ambient light is high
• Uses long-lasting energy efficient LED bulbs that are rated for 50,000-hour lamp life

Product Highlights

This combo night light and receptacle features UL listed shutters to prevent the insertion of foreign objects and full dimming with 3-preset levels.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR7735W

Technical Specifications

• Manufacturer: EATON
• Brand: Eaton
• Model / MPN: TR7735W-BOX
• Number of Items: 1.0
• Total_power outlets: 1
• Catalog Number: TR7735W-BOX
• UPC: 032664727689
• Product Length/Depth: 2 in
• Product Height: 4.25 in
• Product Width: 2 in
• Certifications: cULus Listed
• Type: Single receptacle with nightlight
• Amperage Rating: 15A
• Voltage rating: 125 V
• Contact material: Brass
• Features: Tamper resistant Dimmable
• Wiring method: Screw terminals
• Number of wires: Three-wire
• Mounting method: Flush
• Number of poles: Two-pole
• Packaging type: Retail Box
• Material: PVC
• Style: Decorator
• Wattage: 1W
• Allowable wire size: #12-14 AWG
• NEMA configuration: 5-15R
• Torque rating: 14 lbf-inch
• Combination type: Night light
• Design type: Receptacle
• Receptacle type: Two-pole, three-wire, grounding
• Current Rating: 15 A
• Dielectric Strength: 2000 V
• Operating Temperature: -20 to 60 deg C
• Terminal Type: Screw
• Wire Size: 14 to 12 AWG
• Wiring Type: Back and Side
• Model: TR7735W-BOX
