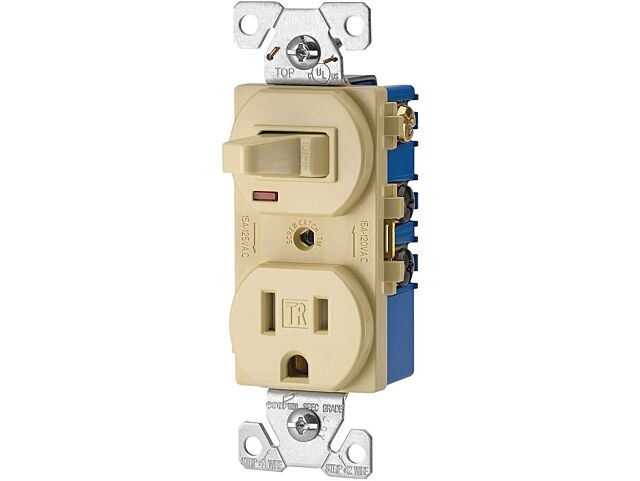

Eaton TR274V commercial grade combination switch 15A

Product Description

The Eaton TR274V commercial grade combination switch features a tamper-resistant, auto-ground design and a neon pilot light. Rated for 15A, it supports #14 - #12 AWG wiring and includes a 120V switch with a 125V receptacle. Constructed with back and side wiring, a maintained closure, and a brass contact type, it's made from thermoplastic and PVC materials.

• Tamper resistant
• Auto-ground
• Neon pilot

Product Highlights

This commercial-grade combination switch offers a durable and safe solution for power and switching needs in commercial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: EATON-TR274V

Technical Specifications

• Product Name: Eaton commercial grade combination switch
• Catalog Number: TR274V
• UPC: 032664750250
• Product Length/Depth: 1.3 in
• Product Height: 4.19 in
• Product Width: 1.08 in
• Compliances: RoHS Compliant
• Certifications: NOM, cULus Listed
• Product Type: Commercial grade combination switch
• NEMA Rating: 5-15R
• Special features: Tamper resistant, auto-ground
• Type: Standard
• Amperage Rating: 15A
• Voltage rating: 120V switch, 125V receptacle
• NEMA configuration: 5-15R
• Number of poles: Single-pole
• Configuration: Receptacle, Toggle switch
• Illumination: Neon pilot
• Application: Commercial
• Device grade: Commercial
• Wiring method: Back and side
• Contact type: Brass
• Switch type: Single-pole
• Mounting method: Flush
• Closure type: Maintained
• Connector type: Screw
• Material: PVC, Thermoplastic
• Allowable wire size: #14-12 AWG
• Operating temperature: -20 to 60 °C
• Torque rating: 12-14 lbf-inch
• Style type: Duplex
• Actuator: Toggle
• Voltage: 120 Volts
• Maximum Amperage: 15 Amp
• Maximum Voltage: 125V
• Outlet Type: Duplex
• Tamper Resistant: Yes
