Product Description

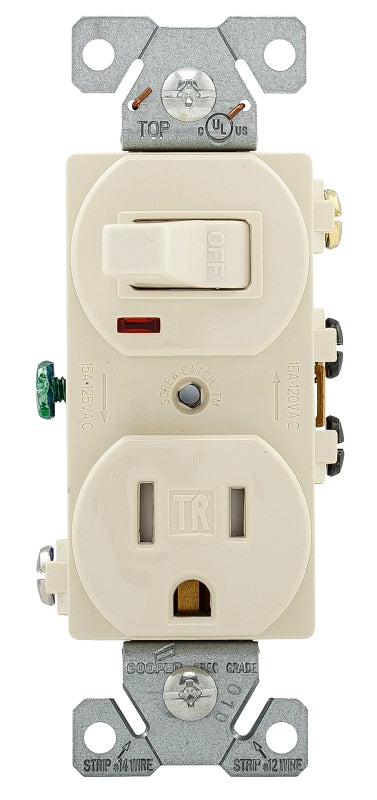

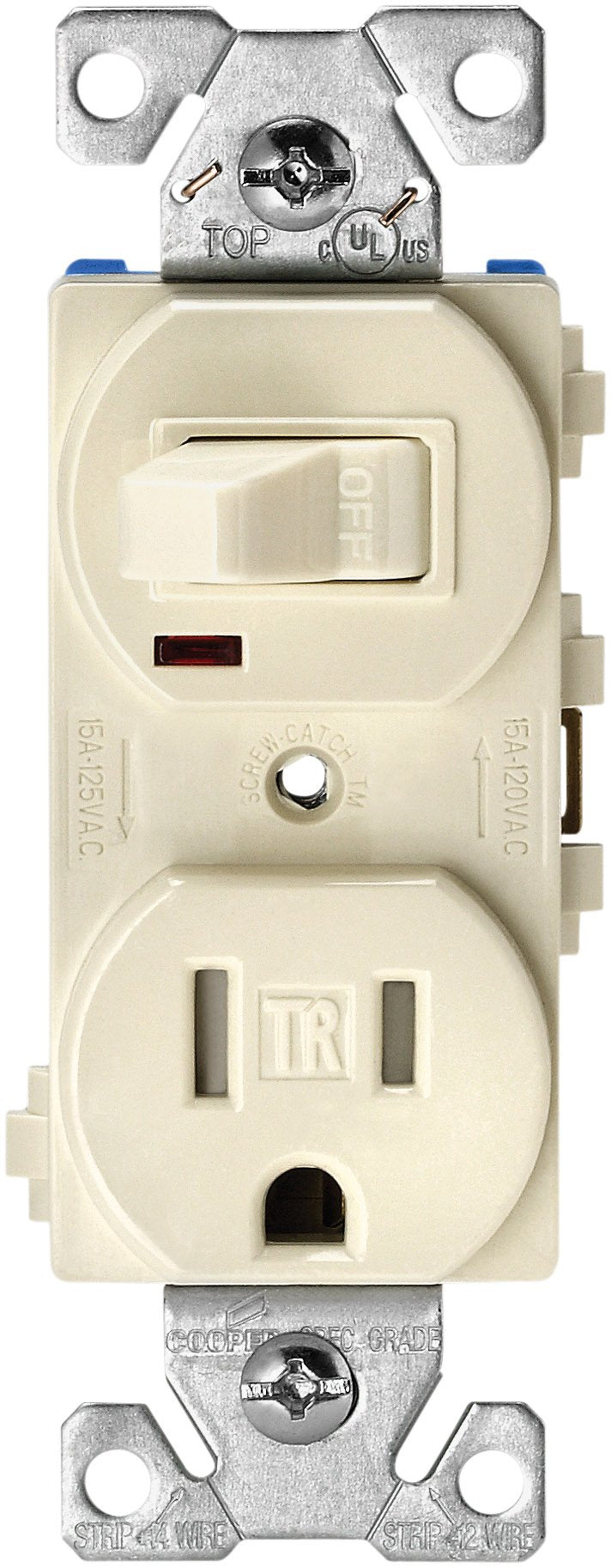

The Eaton TR274LA 3-Wire Receptacle Combo Single-Pole Switch with Tamper Resistant 2-Pole is a combination switch with a receptacle. It features a single-pole switch and a tamper-resistant 2-pole receptacle. The switch is UL certified and designed for surface mounting. It has a total of one power outlet and is compatible with all devices.
- 3-Wire Receptacle Combo
- Single-Pole Switch
- Tamper Resistant 2-Pole
Product Highlights
This combination switch with receptacle offers a single-pole switch and a tamper-resistant 2-pole receptacle for versatile use.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: TR274LA
-
Country of Origin: China
Technical Specifications
-
Voltage: 120v/125v
-
Material: Alloy Steel
-
Switch Type: Single Pole
-
Switch Style: Toggle
-
Certification: UL
-
Mounting Type: Surface Mount
-
Compatible Devices: All
-
Batteries Required?: No
-
Total Power Outlets: 1
-
Manufacturer: EATON
-
Model / MPN: TR274LA
-
Application: Indoor Applications
-
Dielectric Strength: 2000 VAC
-
Electrical Ratings: 15 A, 125 VAC
-
Grade: Commercial
-
Grounding Style: Automatic
-
Number of Poles: 1/2
-
Number of Wires: 3
-
Standards/Approvals: UL 20/498 File No. E18704|cULus Listed|NOM 426
-
Terminal Type: Screw
-
Type: Duplex Tamper-Resistant Toggle Straight Blade
-
Enclosure: NEMA 5-15R
-
GTIN: 00032664722271
-
Amperage Rating: 15 A
-
Insulation Type: PVC
-
Wire Size: 14 to 12 AWG
-
Electrical Rating: 125 VAC 15 A
-
UPC: 032664722271
-
UNSPSC: 39121406
-
NEMA Rating: 5-15R
-
Poles: 1
-
Amperage: 15
-
Wiring: Back And Side
-
Product Type: Commercial Grade Combination Switch
-
AWG: 14-12
-
Product Name: Eaton commercial grade combination switch
-
Catalog Number: TR274LA
-
Product Length/Depth: 1.3 in
-
Product Height: 4.19 in
-
Product Width: 1.08 in
-
Product Weight: 0.242 lb
-
Compliances: RoHS Compliant
-
Certifications: cULus Listed NOM
-
Special features: Tamper resistant, auto-ground
-
Voltage rating: 120V switch, 125V receptacle
-
NEMA configuration: 5-15R
-
Number of poles: Single-pole
-
Configuration: Receptacle Toggle switch
-
Illumination: Neon pilot
-
Device grade: Commercial
-
Wiring method: Back and side
-
Contact type: Brass
-
Switch type: Single-pole
-
Mounting method: Flush
-
Closure type: Maintained
-
Connector type: Screw
-
Operating temperature: -20 to 60 °C
-
Torque rating: 12-14 lbf-inch
-
Style type: Duplex
-
Actuator: Toggle
-
Contact Material: Brass
-
Operating Temperature: -20 to 60 deg C
-
Wiring Type: Back, Side
-
Current Rating: 15 A
-
Operation Method: On/Off
-
Port Type: Light Switch
-
Outlet Style: Single
-
Control Style: Switch
-
Outlet Configuration: Single
-
Suitable For: Wall, Interior
-
Country of Origin: China
-
Power Plug Type: Type A - 2 pin (North American)
-
Specification Met: UL
