Product Description

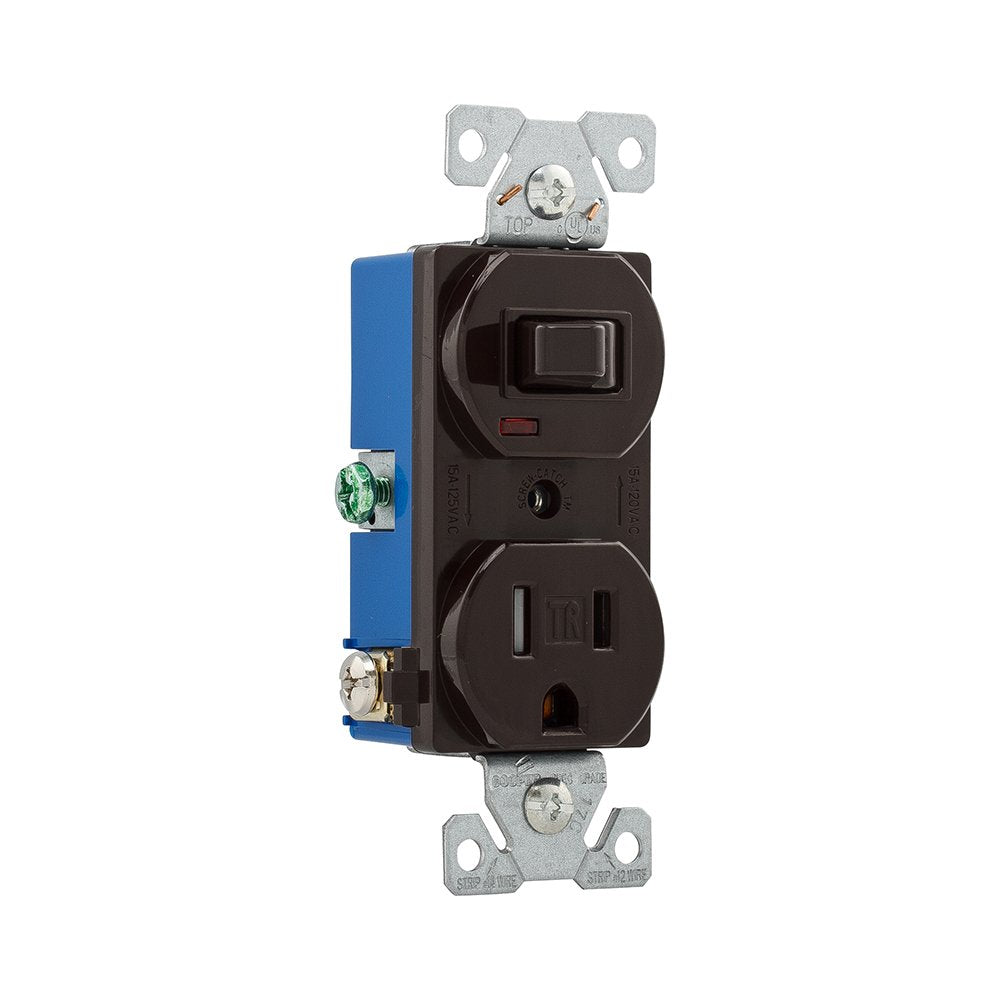

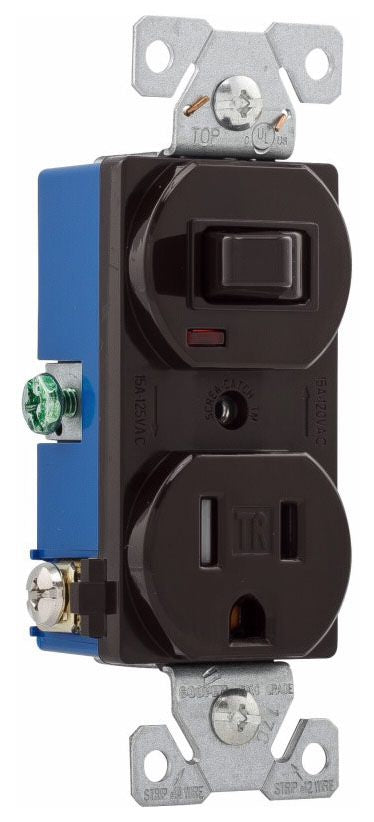

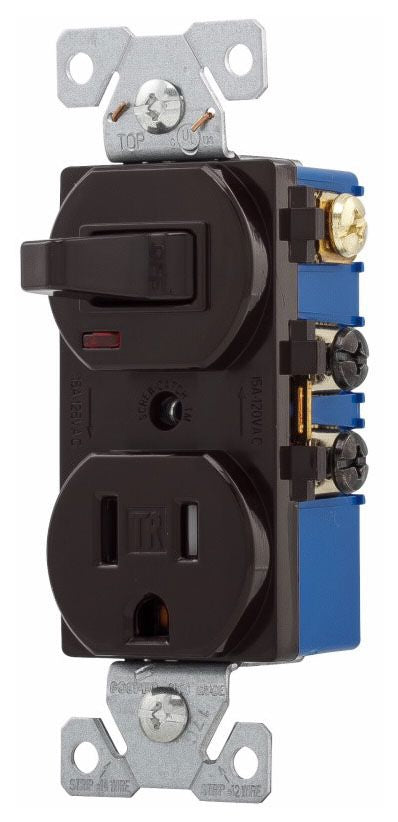

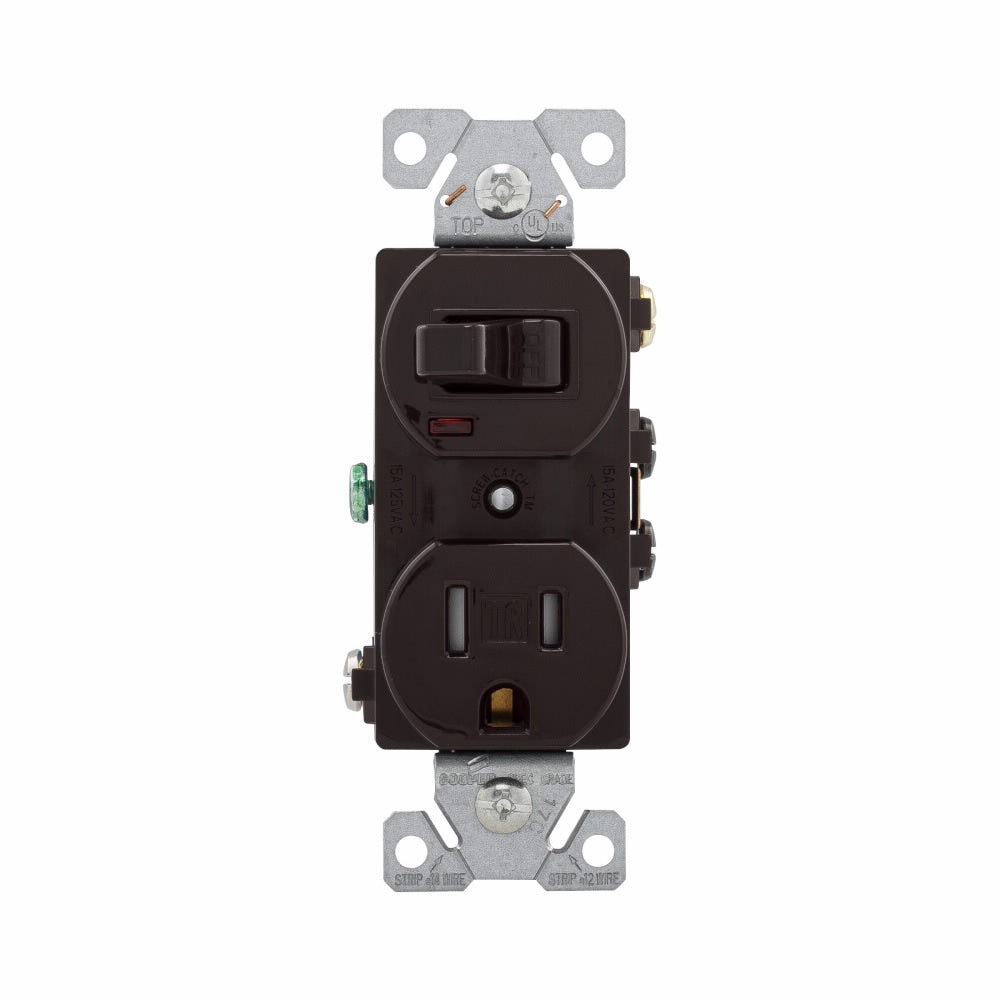

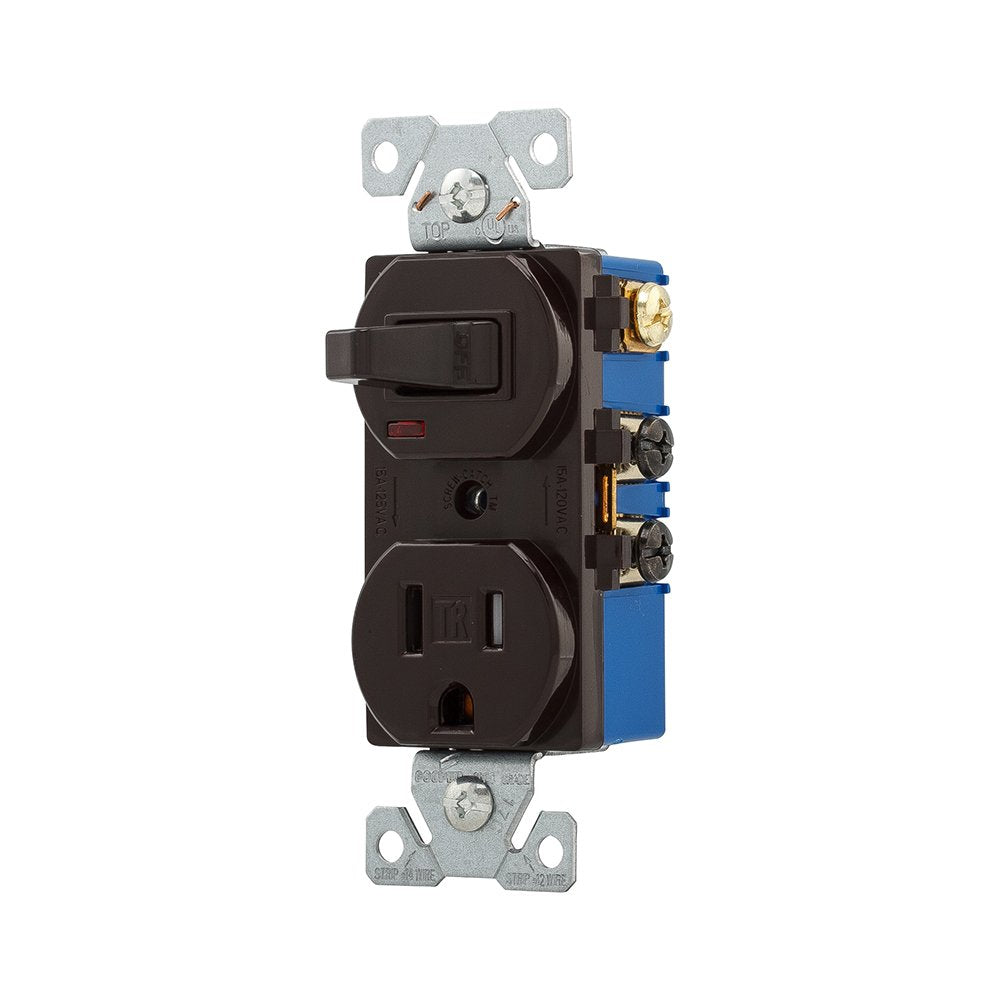

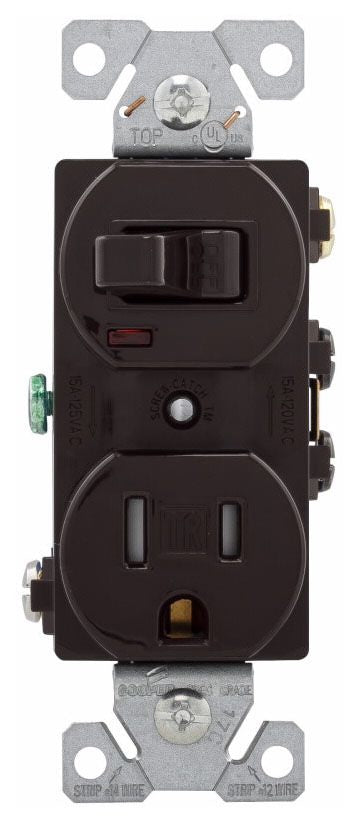

The EATON TR274B Arrow Hart Tr274 is a duplex combination switch/receptacle, designed for 2 pole, 3 wire configurations. It operates at 120 V with a current rating of 15 A. Constructed with steel and resin, it features a screw connector type and an on-off operation mode. It meets UL specifications.
- Duplex combination switch/receptacle
- 2 Pole, 3 Wire configuration
- Current Rating: 15 Amps, Voltage: 120 Volts
Product Highlights
The EATON TR274B is a reliable duplex combination switch/receptacle suitable for various applications, featuring robust construction and meeting UL standards.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: TR274B
-
Country of Origin: CHN
Technical Specifications
-
Color: Brown
-
Voltage: 120v/125v
-
Material: Steel,Resin
-
Connector Type: Nema 5-15
-
Current Rating: 15 Amps
-
Operation Mode: ON-OFF
-
Specification Met: Ul
-
AC Adapter Current: 15 Amps
-
Batteries Included?: No
-
Batteries Required?: No
-
Type: Duplex
-
Switch Type: 120 VAC 15 Ampere Single Pole Toggle
-
Receptacle Type: NEMA 5-15R 125 VAC 15 Ampere 2-Pole 3-Wire Grounding Straight Blade
-
Wiring: Back, Side
-
Wall Plate Included: No
-
Application: Commercial
-
Approval: UL (Canada and US), NOM 426
-
Temperature Rating: -4 to 140 Deg F
-
ROHS Compliant: True
-
Poles: 2 P
-
Outlet Type: Duplex Combination Switch/Receptacle
-
Tamper Resistant: Yes
-
Horsepower Rated: Yes
-
Flammability Rating: UL94 V0
-
Dielectric Strength: 2 kV
-
Electrical Ratings: 15 A at 125 VAC
-
Enclosure: NEMA 5-15R
-
Grade: Commercial/Residential
-
Grounding Style: Automatic
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: UL 20|UL 498|UL File No. E18704|cULus Listed|NEC Article 406.12|NOM 426 Certified
-
Terminal Type: Screw
-
Insulation Type: PVC
-
Wire Size: 14 to 12 AWG
-
Amperage Rating: 15 A
-
Mounting: Flush
-
Voltage Rating: 120 V Switch, 125 V Receptacle
-
Operating Temperature: -20 to 60 deg C
-
NEMA Rating: 5-15R
-
Product Type: Commercial Grade Combination Switch
-
AWG: 14-12
-
Total Power Outlets: 1
-
Power Plug Type: Type A - 2 pin (North American)
-
Product Length/Depth: 1.3 in
-
Product Height: 4.19 in
-
Product Width: 1.08 in
-
Compliances: RoHS Compliant
-
Certifications: NOM, cULus Listed
-
Special features: Tamper resistant, auto-ground
-
Configuration: Toggle switch Receptacle
-
Illumination: Neon pilot
-
Device grade: Commercial
-
Wiring method: Back and side
-
Contact type: Brass
-
Switch type: Single-pole
-
Closure type: Maintained
-
Actuator: Toggle
