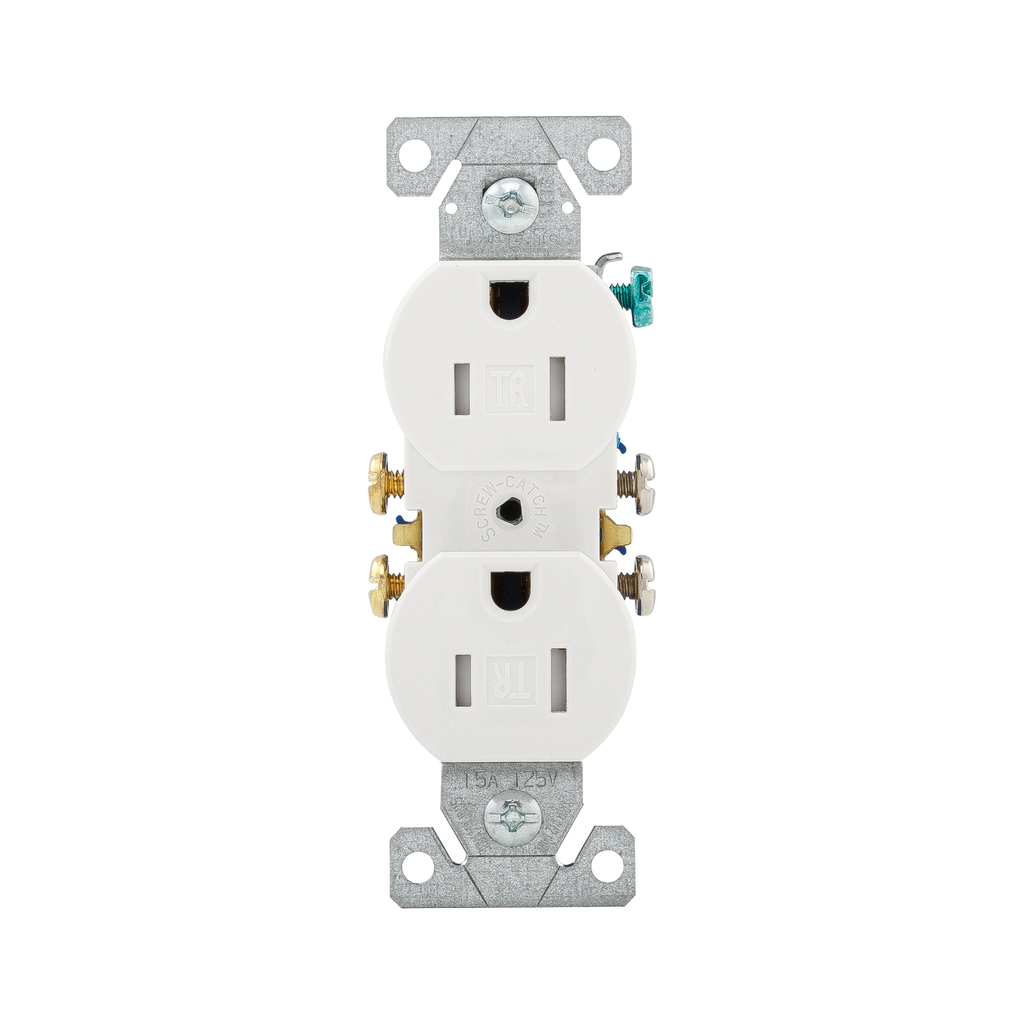

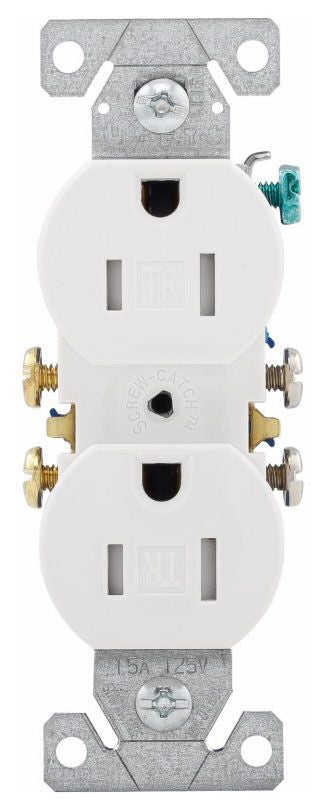

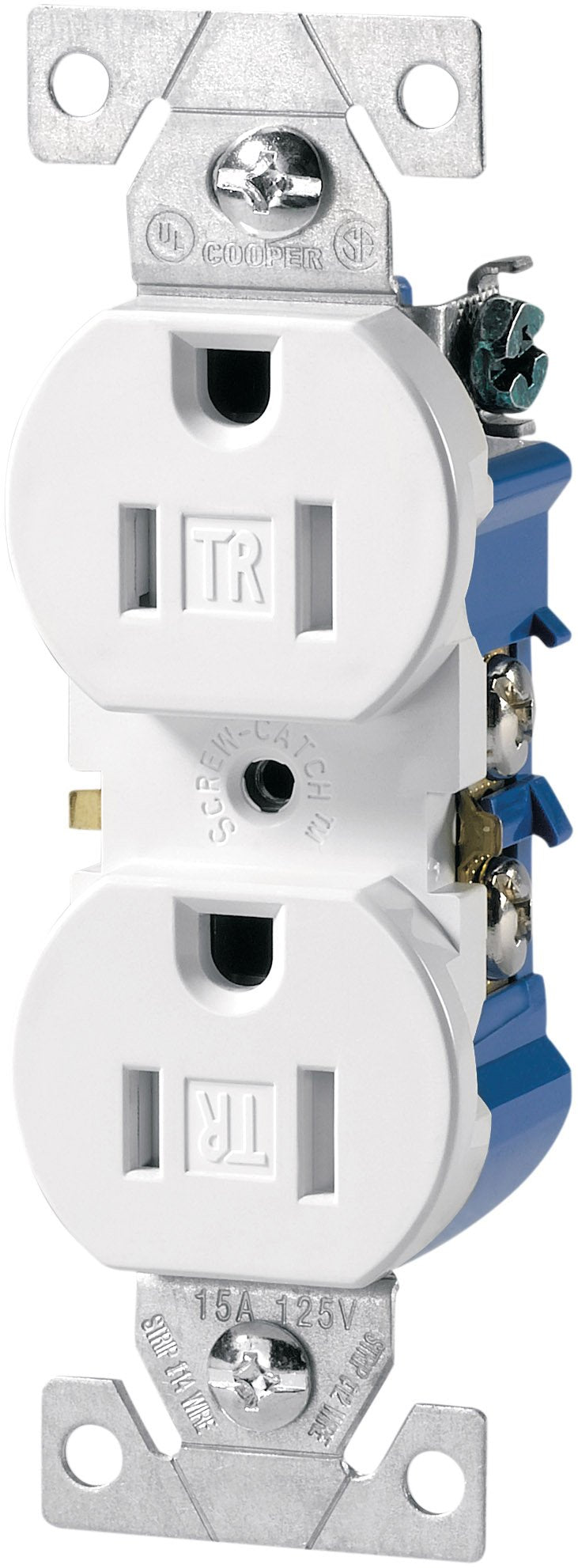

Eaton TR270W Duplex Grounding Receptacle, 270 watts

EATON
Brand: EATON
SKU: TR270W
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton TR270W Duplex Grounding Receptacle is rated at 125V and 270 watts. Constructed from polycarbonate, this receptacle is suitable for residential and standard-grade applications. It is a tamper-resistant grounding receptacle designed with a thermoplastic face and back body. It complies with 2011 NEC Article 406.12.

  • Complies with 2011 NEC Article 406.12
  • Constructed with a durable, impact-resistant thermoplastic face and back body
  • Features extra-long and extra-wide mounting straps

Product Highlights

This Eaton duplex receptacle provides a safe and durable wiring solution for residential applications, featuring tamper-resistant design and robust construction.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: TR270W
  • Country of Origin: United States
Technical Specifications
Voltage
125 Volts
Wattage
270 watts
Material
Polycarbonate
Amperage Rating
15 A
NEMA Rating
NEMA 5-15R
Number of Poles
2
Number of Wires
3
Temperature Rating
-4 to 158 deg F
Terminal Type
Screw
Type
Duplex Tamper-Resistant Grounding
Voltage Rating
125 VAC
Current Rating
15 Amp
Ground Type
Grounding
Wiring
Back, Side
Grade
Residential
Mounting Type
Flush
Flammability Rating
UL 94-V2
Application
New Residential Construction, Remodel/Retrofit Residential Construction, Apartment Buildings, Condominiums and Townhouses, Hotels, Motels, Inns and Suites With Kitchenettes, Retirement Communities, Nursing Homes and Assisted Living Facility Applications
Series
TR270
Overall Dimension
1.3 Inch Width x 0.69 Inch Depth x 4.19 Inch Height
Wire Size
14 to 10 AWG
Connection Type
Screw
Configuration
5-15R
Face Material
Impact-resistant thermoplastic
Allowable wire size
Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
Torque rating
14 lbf-inch
Design type
Straight blade
Receptacle type
Duplex
Product Length/Depth
1.24 in
Product Height
4 in
Product Width
0.79 in
Product Type
Residential grade
Device type
Receptacle
Number of wires
3
Number of poles
Two-pole
Style type
Standard
Packaging type
Core pack
TC Connection
Screw
Conductor Size
14-10 AWG
Dielectric Strength
2000 V
Length
1.24 Inch
