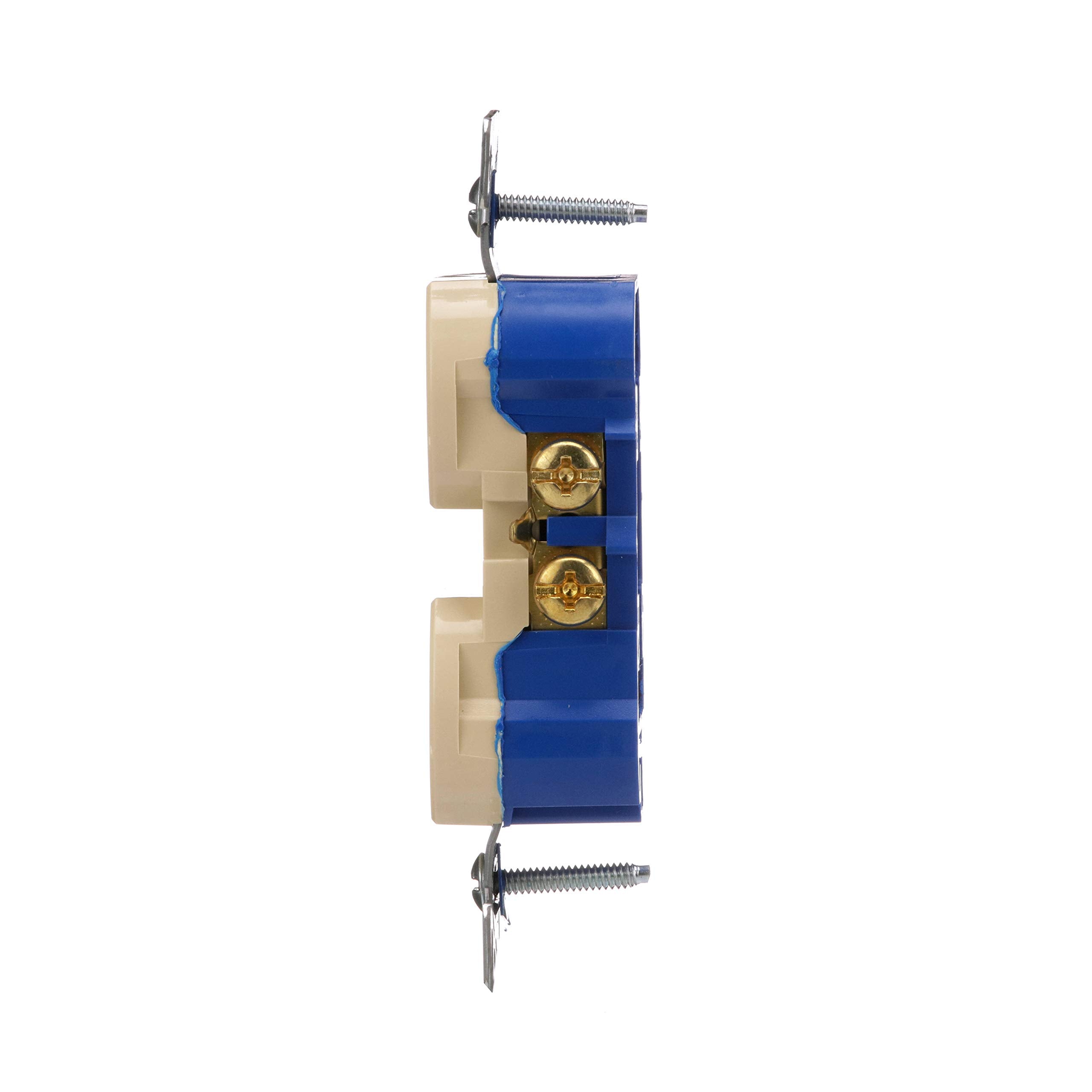

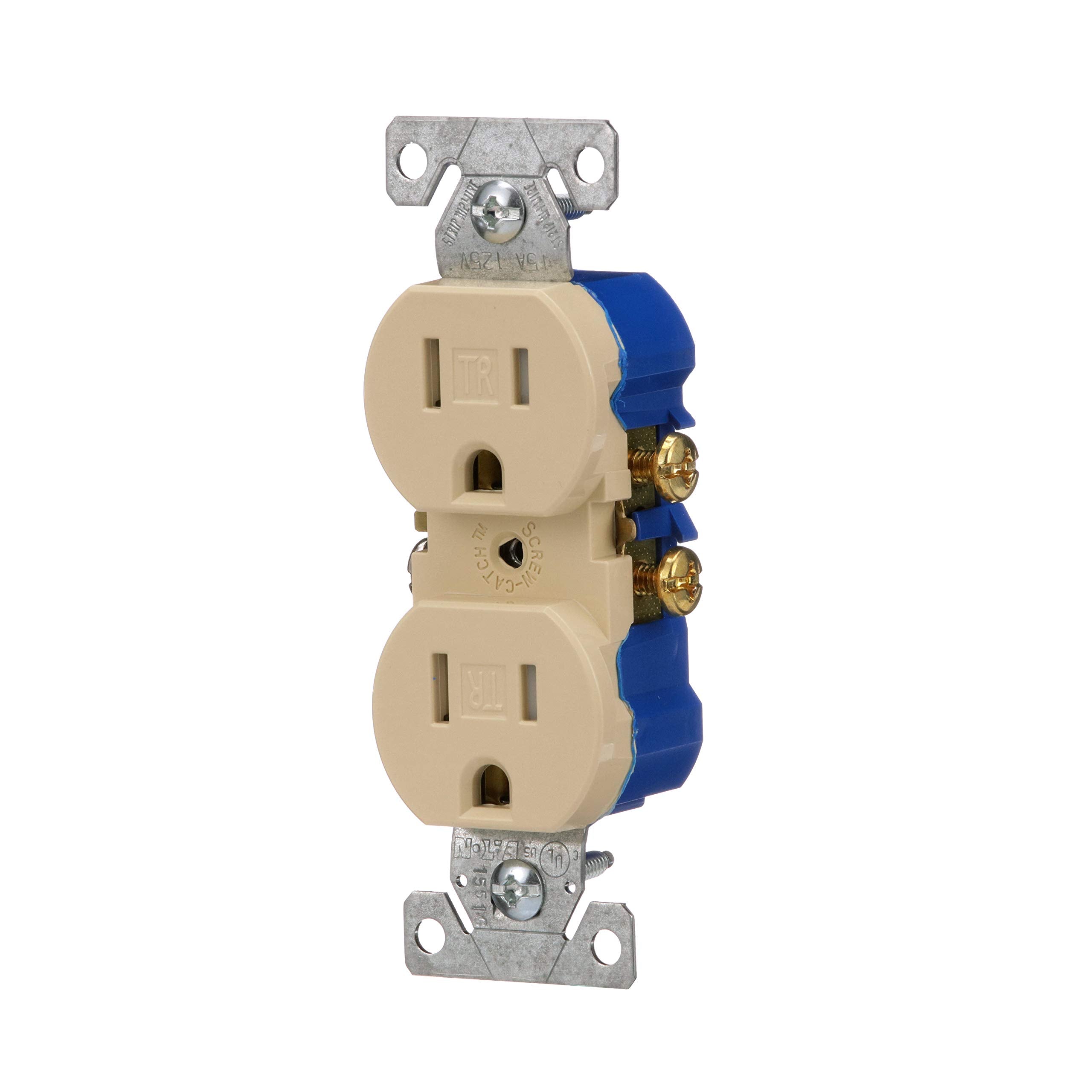

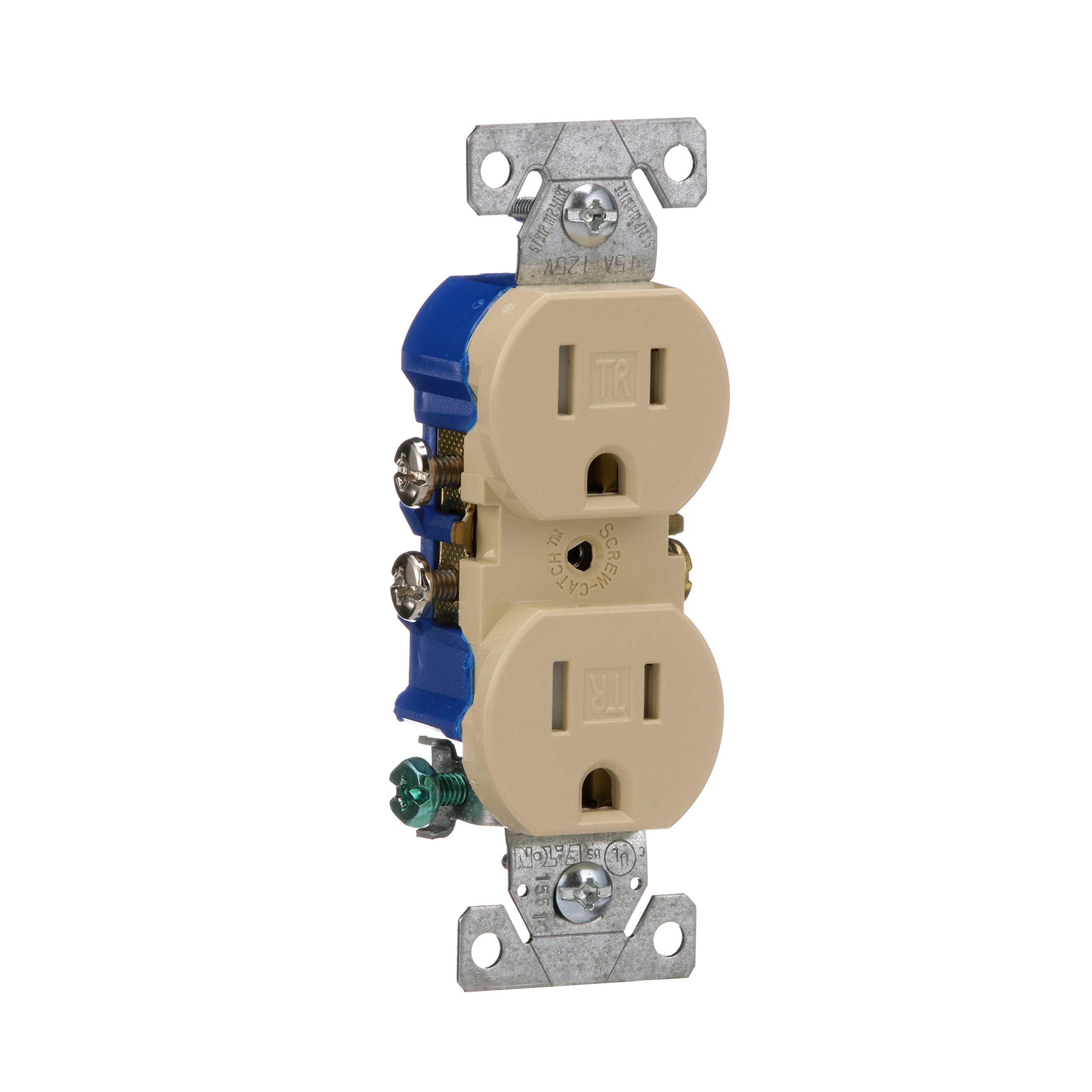

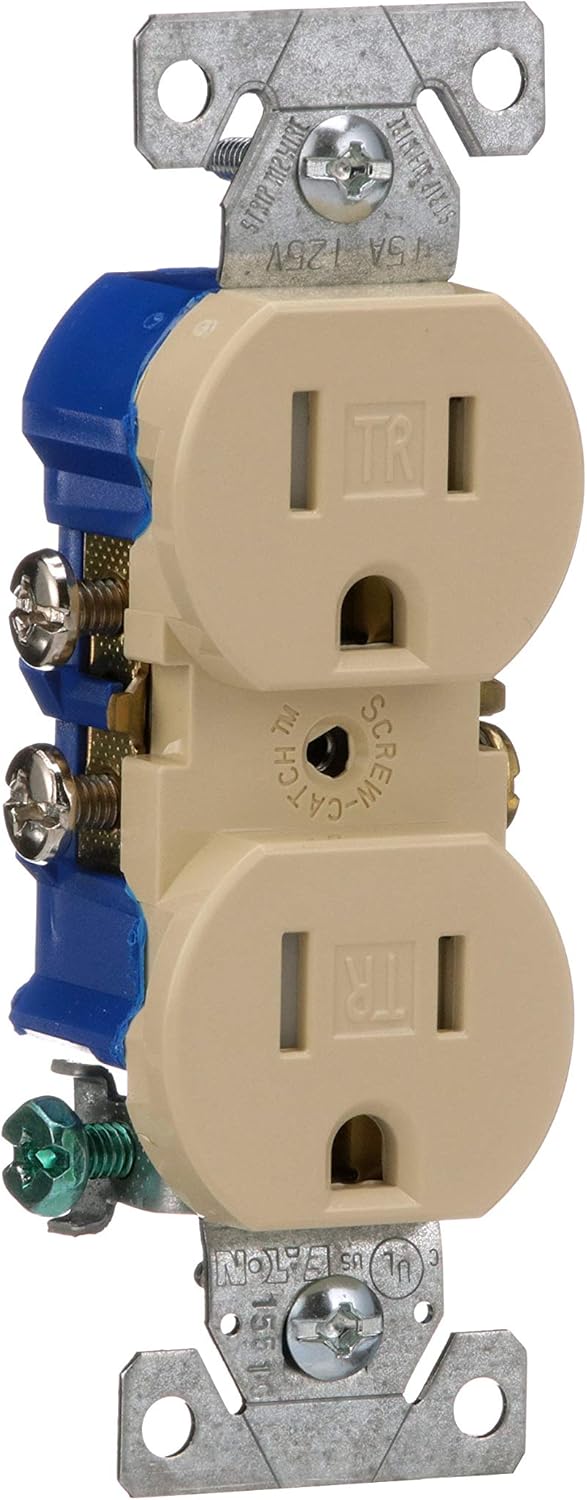

The EATON TR270V Tamper Resistant Duplex Receptacle is a 15 Amp receptacle made of thermoplastic material. This residential and commercial grade receptacle features a tamper-resistant design with a UL listed shutter system. It is suitable for use in living rooms, play rooms, bedrooms, and garages.
Tamper resistant design prevents insertion of foreign objects
Durable impact-resistant thermoplastic face and back body
Side-wire terminals accept up to #10 solid or stranded wire
Product Highlights
This duplex receptacle provides a permanent solution for protection against electrical shock.
Product Information
Standard Information
Brand: EATON
Manufacturer Part Number: TR270V
Country of Origin: USA
Technical Specifications
Color
Ivory
Voltage
120 Volts
Material
Plastic
NEMA
5-15R
Type
Tamper-Resistant, Standard
Brand
Eaton
Grade
Commercial/Residential
Width
.79 in
Height
4 Inch
Length
1.24 Inch
Amperage
15 Amp
Grounding
Grounding
Wire Size
14-10 AWG
Applications
For Residential Use
Mounting Type
Flush
Conductor Size
14-10 AWG
Connection Type
Push-In and Side Wire
Number of Poles
2 Pole
Number of Wires
3 Wire
Contact Material
Brass
Temperature Rating
-20 to 60 degrees C
Dielectric Strength
2000 V
Insulation Material
Nylon
Voltage Rating
125 V
Current Rating
15 Ampere
Feature
Tamper Resistant
Wiring
Side Wiring
Constructional Feature
Tamper/Impact Resistant
Configuration
NEMA 5-15R
Approval
UL (Canada and US), UL 498, NOM 426
RoHS Compliant
True
Torque Rating
14 Inch-Pound
Flammability Rating
UL 94V-2

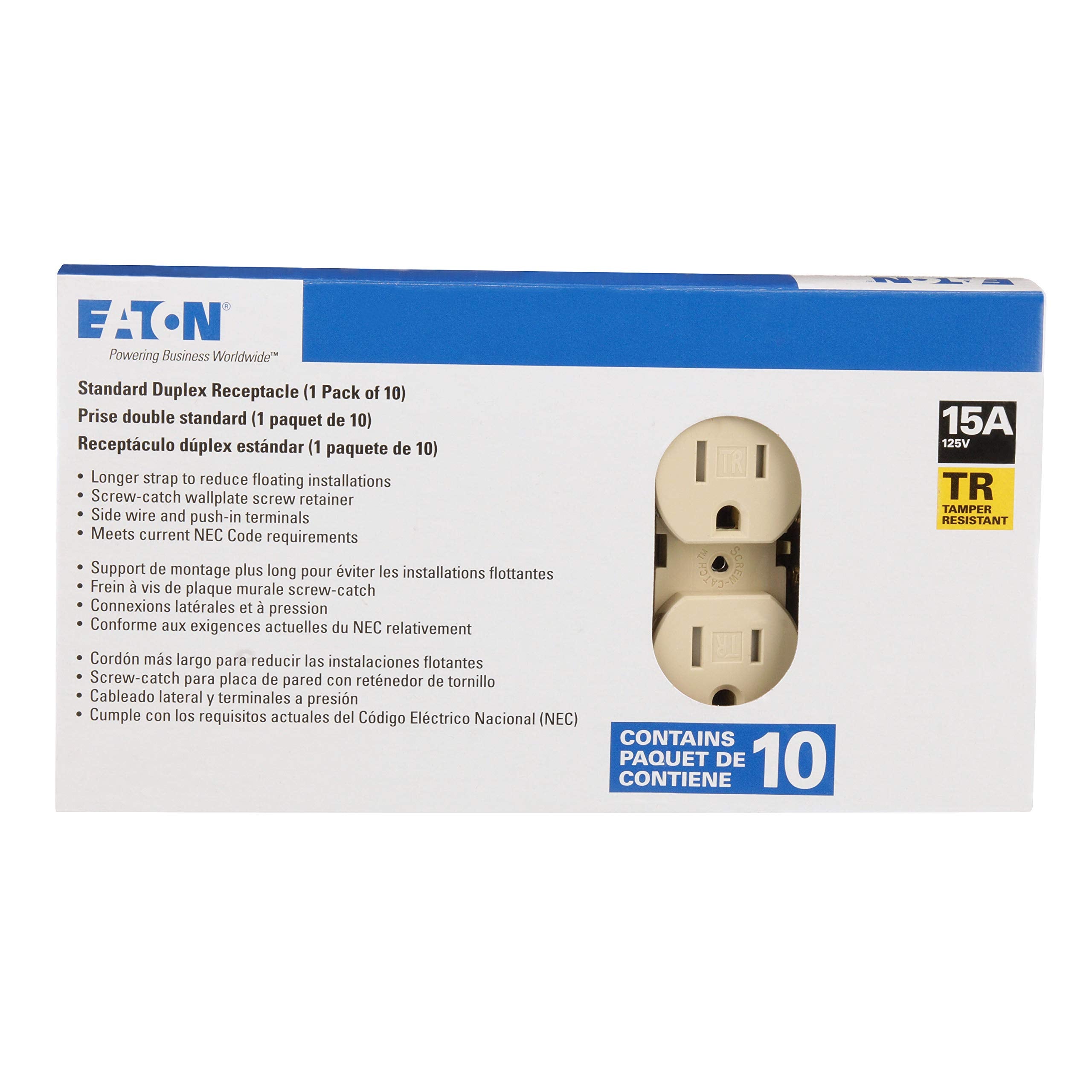

Packaging Type
Core Pack
Applicable Standard
ANSI, NAFTA
Amperage Rating
15A
Voltage rating
125V
Certifications
cULus Listed, NOM
Product Type
Residential grade
Device type
Receptacle
Receptacle type
Duplex
Wiring method
Side and push
Number of poles
Two-pole
Style type
Standard
Allowable wire size
Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
