Product Description

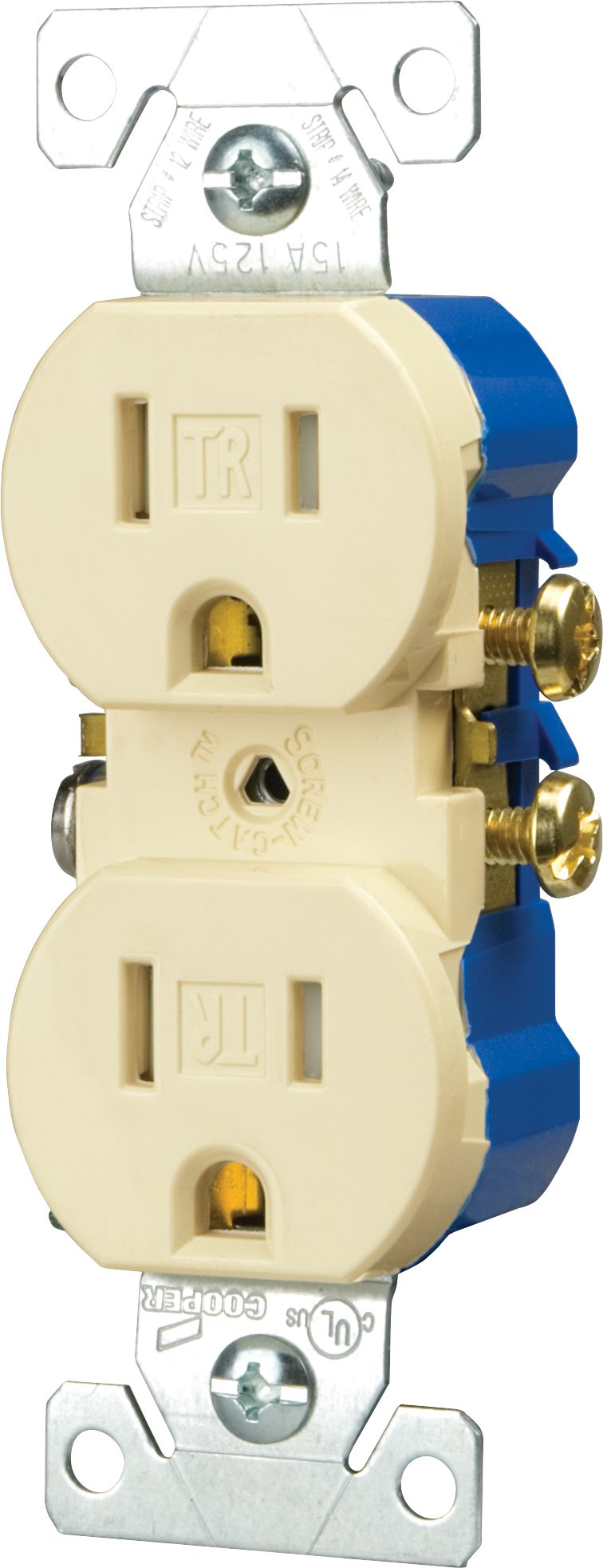

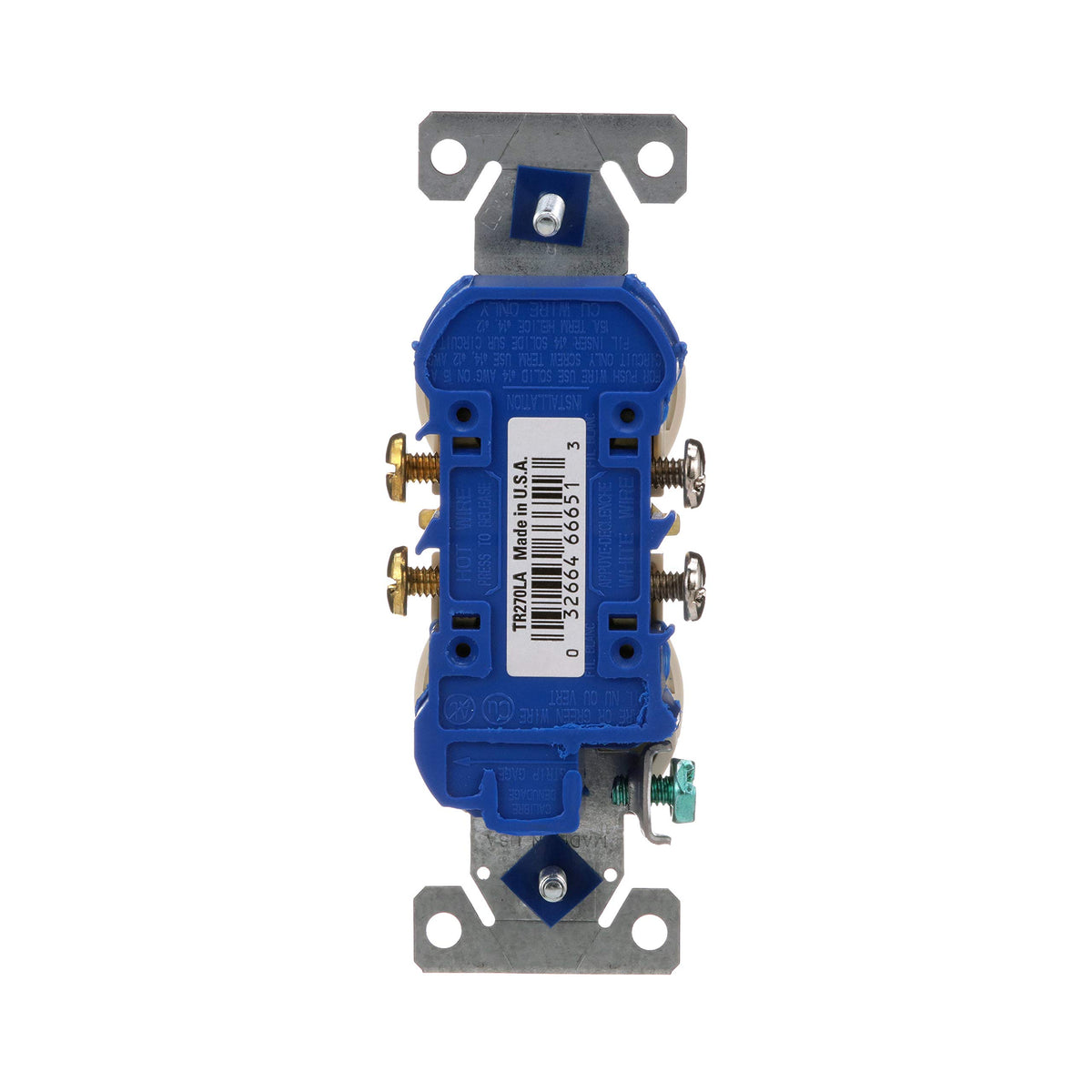

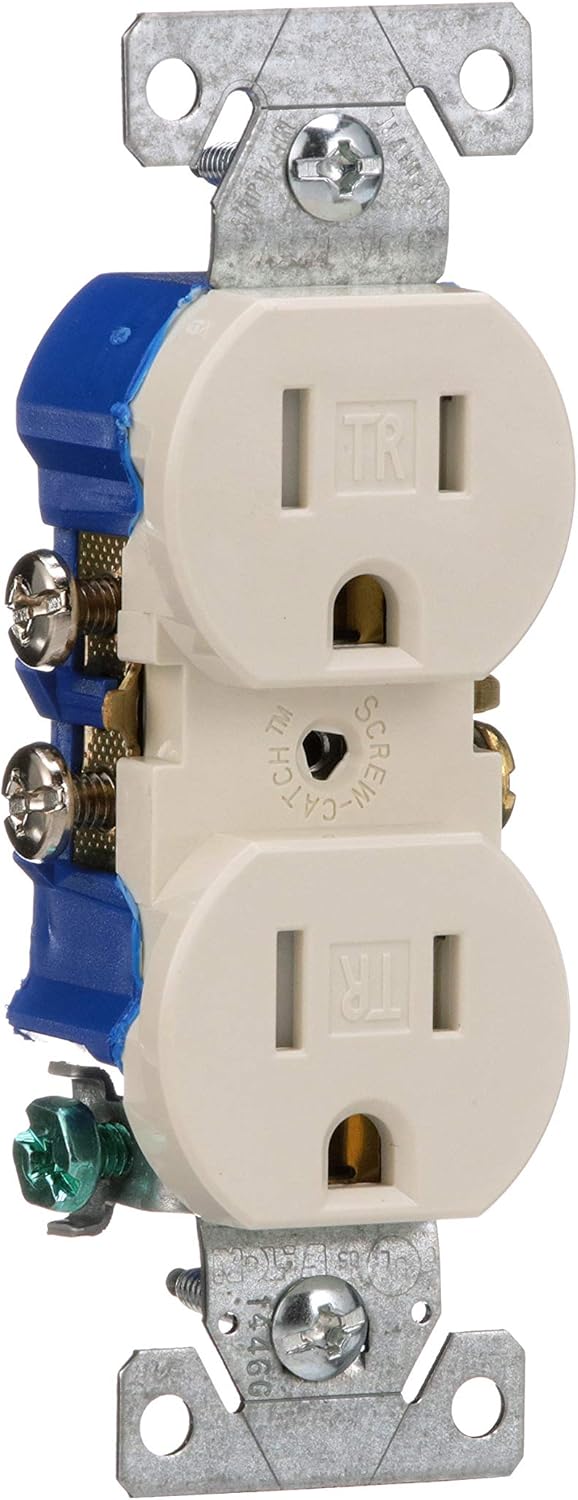

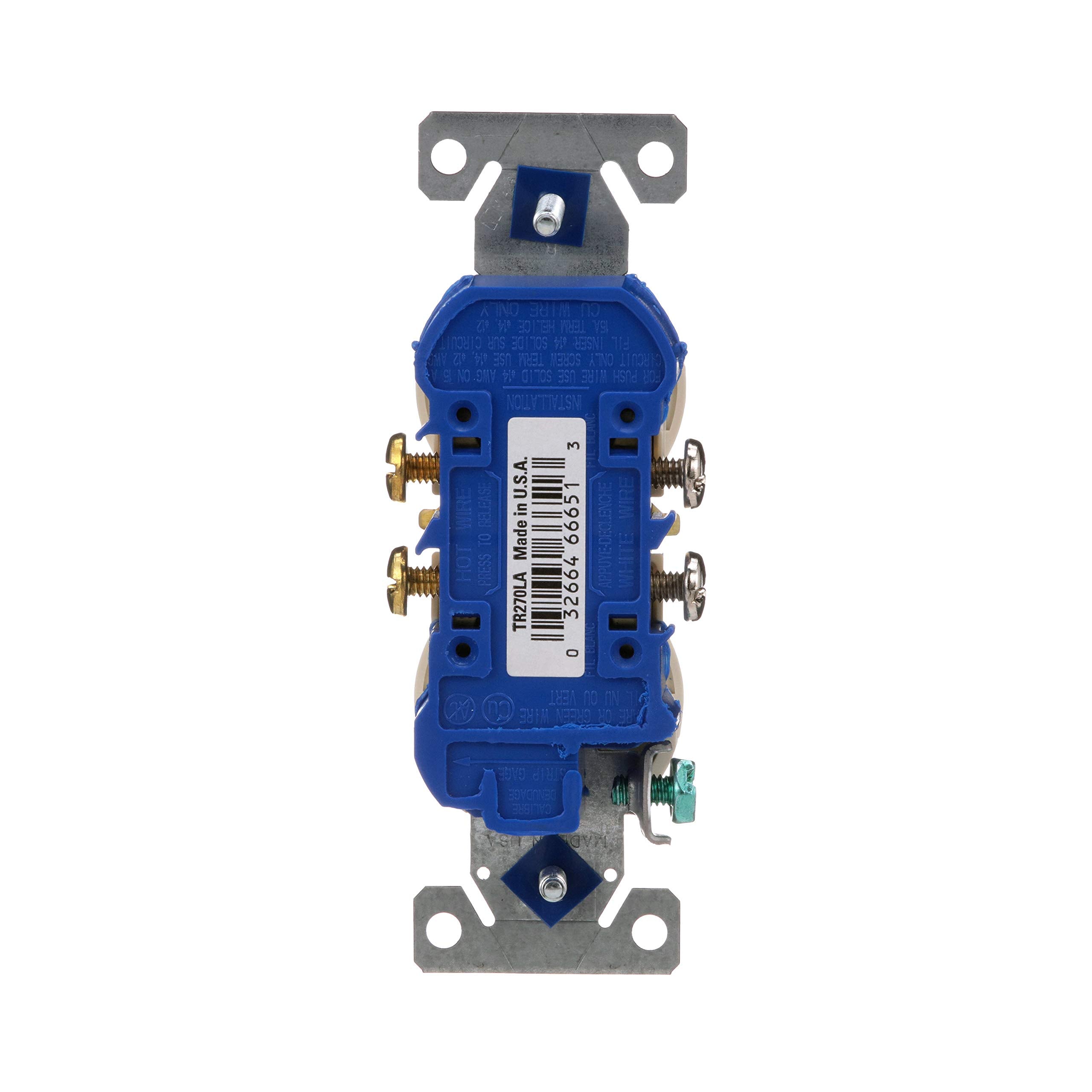

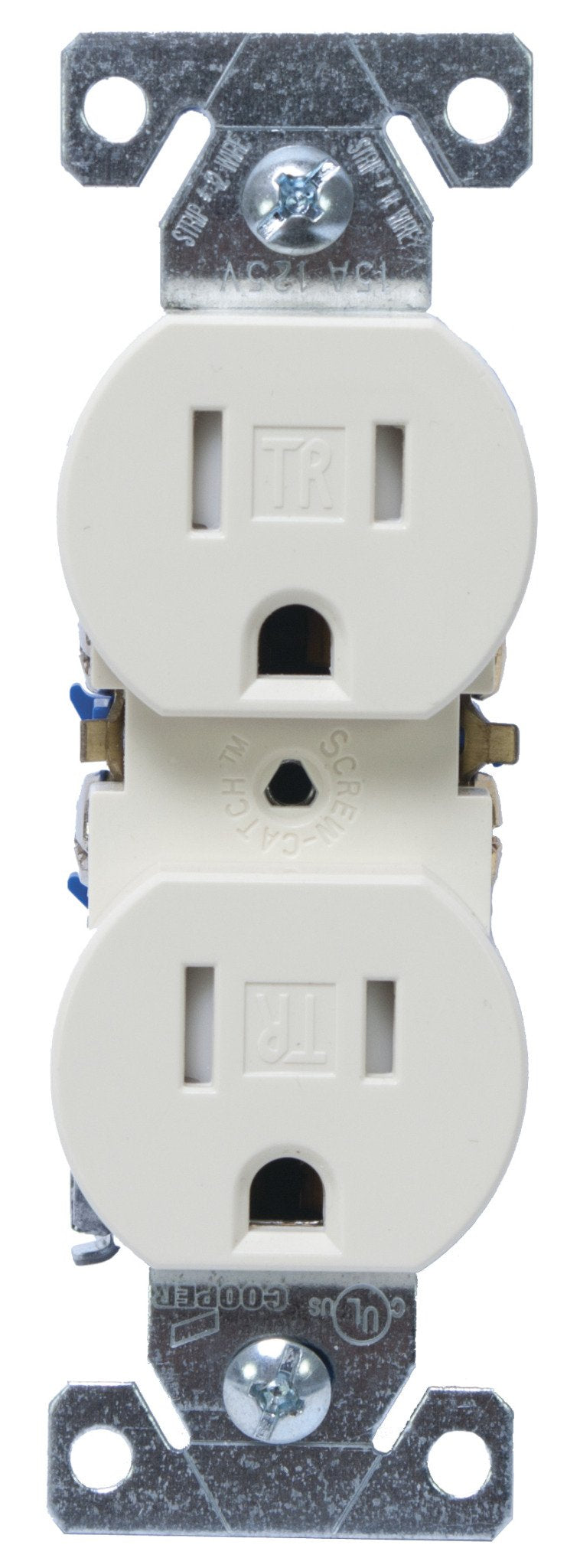

The EATON TR270LA Tamper Resistant Duplex Receptacle is a 15-Amp, 125-Volt receptacle with NEMA 5-15 rating. This duplex receptacle provides compliance with 2011 NEC Article 406.12, stating that all receptacles installed in dwelling units must be tamper resistant. Its durable, impact-resistant thermoplastic face and back body is virtually unbreakable.
- Tamper Resistant
- Duplex Receptacle
- 15-Amp, 125-Volt
Product Highlights
This receptacle is ideal for living rooms, play rooms, bedrooms, garages, and any space where children may come in contact with electrical devices.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: TR270LA
-
Country of Origin: USA
Technical Specifications
-
Color: Almond
-
Voltage: 125 Volts
-
Material: Thermoplastic
-
Certification: E15058, CULus, NEMA
-
Amperage: 15 A
-
Poles: 2
-
Wires: 3
-
Receptacle Type: Straight Blade Duplex Grounding
-
Voltage Rating: 125 VAC
-
Current Rating: 15 Ampere
-
Grounding: Grounding
-
Duty: Standard Duty
-
Features: Tamper Resistant, Autoground
-
Manufacturer: EATON
-
Model / MPN: TR270LA
-
NEMA Rating: 5-15
-
Listing: cULus listed to UL498, file no. E15058, NOM certified
-
Compliance: NAFTA compliant
-
Temperature Rating: -20 to 70 deg C
-
Terminal Type: Side Wire/Push-In/Screw
-
Type: Duplex receptacle
-
Grade: Residential
-
Configuration: 5-15R
-
Product Length/Depth: 1.24 in
-
Product Height: 4 in
-
Product Width: 0.79 in
-
Product Type: Residential grade
-
Device type: Receptacle
-
Contact material: Brass
-
Application: Commercial/residential
-
Device grade: Standard grade
-
Wiring method: Side and push
-
Mounting method: Flush
-
Number of poles: Two-pole
-
Style type: Standard
-
Packaging type: Core pack
-
Connection type: Screw
-
Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
-
NEMA configuration: 5-15R
-
Torque rating: 14 lbf-inch
-
Design type: Straight blade
-
Face/body material: Impact-resistant thermoplastic face, PVC body
-
Frequency Rating: 60 Hz
-
Wire Size: 14 to 10 AWG
-
Wiring Type: Push Side
-
Amperage Rating: 15A
-
Voltage rating: 125V
