Eaton TR270BK cwd recp tr duplex 15A 125V 2p3w str bk

Product Description

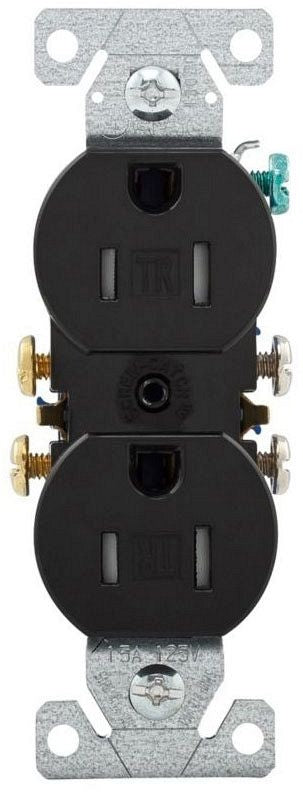

The EATON TR270BK Arrow Hart Straight Blade Receptacle is a grounding receptacle from the TR270 series. Rated at 125 VAC and 15 A, this 2-pole, 3-wire receptacle features a NEMA 5-15R rating and a standard grade. Constructed with a durable, impact-resistant thermoplastic face and body, it offers push-in/side wire terminals for easy installation.

• Compliant with 2014 NEC Article 406.12.
• Durable impact resistant thermoplastic face and back body.
• TR designation provides visual identification that device has tamper resistant shutters.

Product Highlights

This Eaton receptacle is suitable for commercial and residential applications. It features tamper-resistant shutters, side and push wiring, and a thermoplastic construction.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR270BK
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 15 A
• Color: Black
• Grade: Standard
• Manufacturer Part Number: TR270BK
• Material: Thermoplastic
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Series: TR270
• Standards/Approvals: CSA Certified|ANSI Specified|cULus/UL Listed|NOM Certified
• Temperature Rating: -20 to 70 deg C
• Terminal Type: Push-In/Side Wire
• Type: Grounding
• Voltage Rating: 125 VAC
• Product Length/Depth: 1.24 in
• Product Height: 4 in
• Product Width: 0.79 in
• Certifications: cULus Listed NOM
• Product Type: Residential grade
• Device type: Receptacle
• Application: Commercial/residential
• Device grade: Standard grade
• Wiring method: Side and push
• Mounting method: Flush
• Number of poles: Two-pole
• Style type: Standard
• Connection type: Screw
• Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: PVC body Impact-resistant thermoplastic face
• Receptacle type: Duplex
