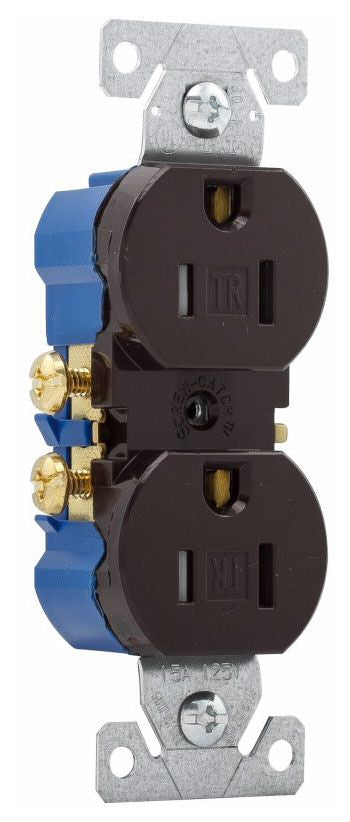

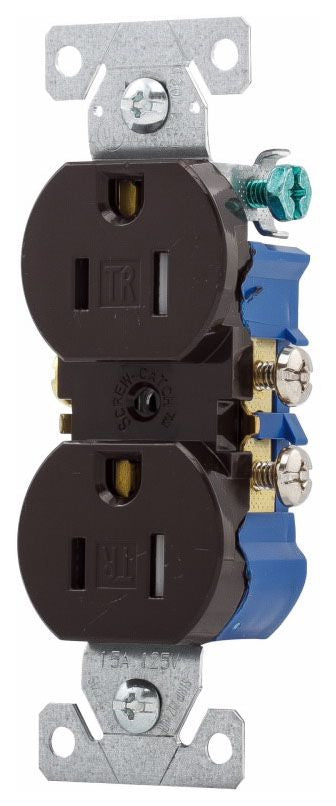

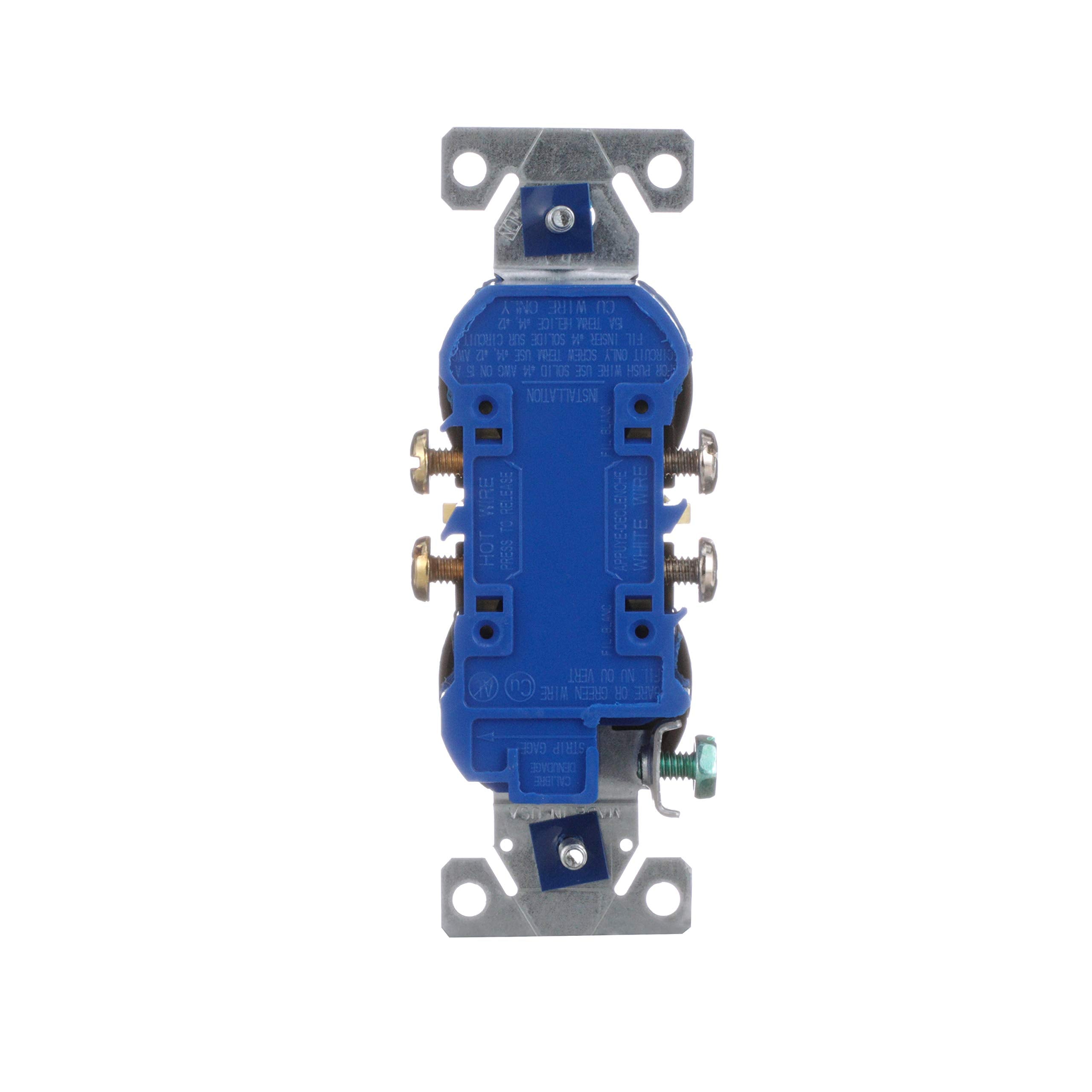

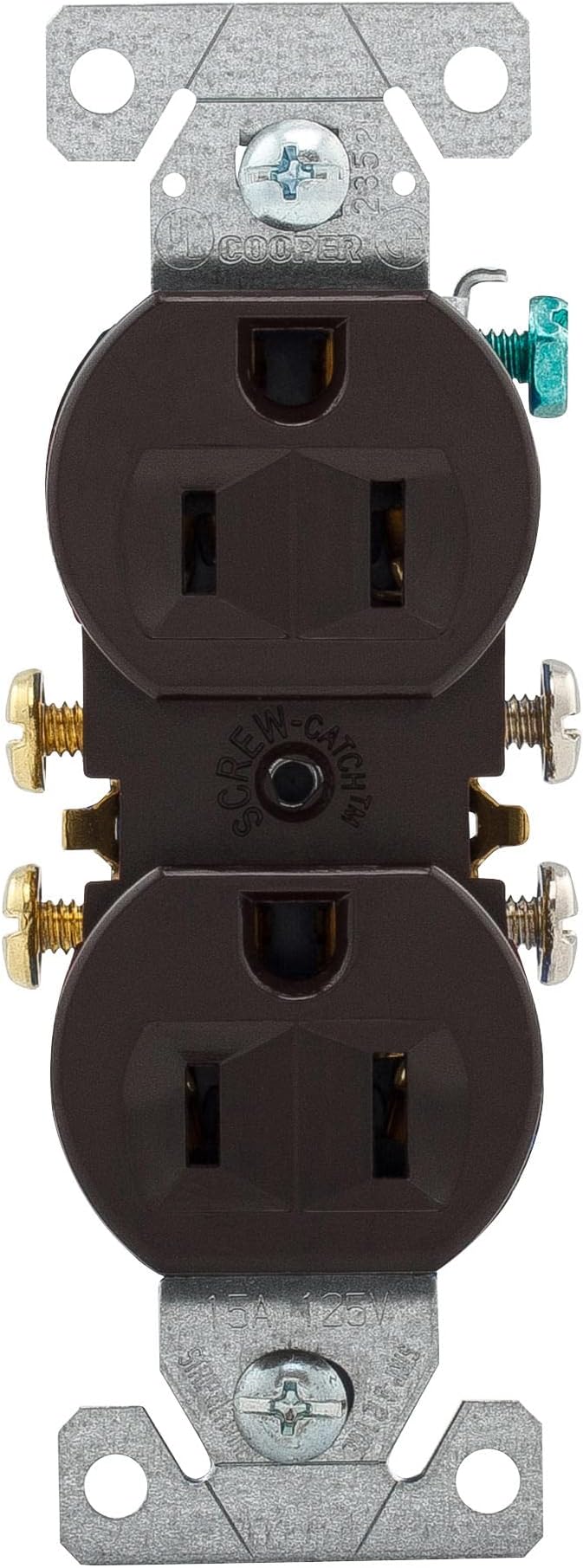

Eaton TR270B Arrow Hart Straight Blade Duplex Grounding Receptacle 15 A

Product Description

The Eaton Arrow Hart TR270B straight blade duplex grounding receptacle complies with 2011 NEC Article 406.12. The receptacle has a durable impact-resistant thermoplastic face and back body. Terminal screws are backed out and ready to wire. It is rated for 125 VAC and 15 A.

• Tamper resistant
• Compliant with 2011 NEC Article 406.12
• Durable impact-resistant thermoplastic face and back body

Product Highlights

This Eaton receptacle features extra-long and extra-wide mounting straps with a patented built-in wire stripper. Side-wire terminals accept up to #10 solid or stranded wire, and push-in terminals accept #14 solid wire.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR270B
• Country of Origin: USA

Technical Specifications

• Voltage: 125 VAC
• Amperage: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Receptacle Type: Straight Blade Duplex Grounding
• Type: Standard Duty Duplex Receptacle
• Feature: Autoground
• NEMA Rating: NEMA 5-15R
• Material: Thermoplastic
• Temperature Rating: -20 to 70 deg C
• Terminal Type: Side Wire/Push-In/Screw
• Grade: Standard
• Wiring: Back, Side
• Approval: UL (Canada and US), UL 498, CSA C22.2, NOM 426
• RoHS/NAFTA Compliant: True
• Wire Size: 14 to 10 AWG
• Connection Type: Screw
• Mounting Type: Flush
• Flammability Rating: UL 94-V2
• Device type: Receptacle
• Device grade: Standard grade
• Wiring method: Side and push
• Number of poles: Two-pole
• Style type: Standard
• Packaging type: Core pack
• Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• NEMA configuration: 5-15R
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Impact-resistant thermoplastic face PVC body
• Receptacle type: Duplex
• Total Power Outlets: 2
• Specification Met: CSA, NEMA, UL
• Product voltage: 125
