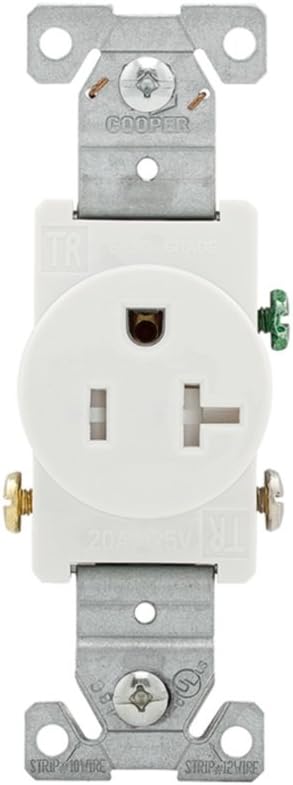

Eaton TR1877W Heavy-Duty Grade Straight Blade Single Receptacle 20-Amp 125-volt

Product Description

The Eaton TR1877W-BXSP heavy-duty grade straight blade tamper resistant single outlet is compliant with 2011 NEC Article 406.12 and suitable for dwelling units. The face and back are constructed of high-impact thermoplastic. This outlet features a patented built-in wire stripper for no. 14 and no. 12 wire. It's rated for 20-Amps, 125-volts, NEMA 5-20r.

• Wider straps for 40-Percent more contact area to wall board to eliminate Floating installations
• Built-in wire stripper for #14 and #12 wire for fast installation
• Terminal screws are backed out and ready for wiring

Product Highlights

Heavy-duty grade straight blade single receptacle with tamper resistant design. Features a built-in wire stripper and high-impact thermoplastic construction.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR1877W

Technical Specifications

• Total Power Outlets: 1
• Voltage: 125 Volts
• Amperage: 20 Amps
• Specification Met: NEMA
• Material: Thermoplastic, Copper
