Product Description

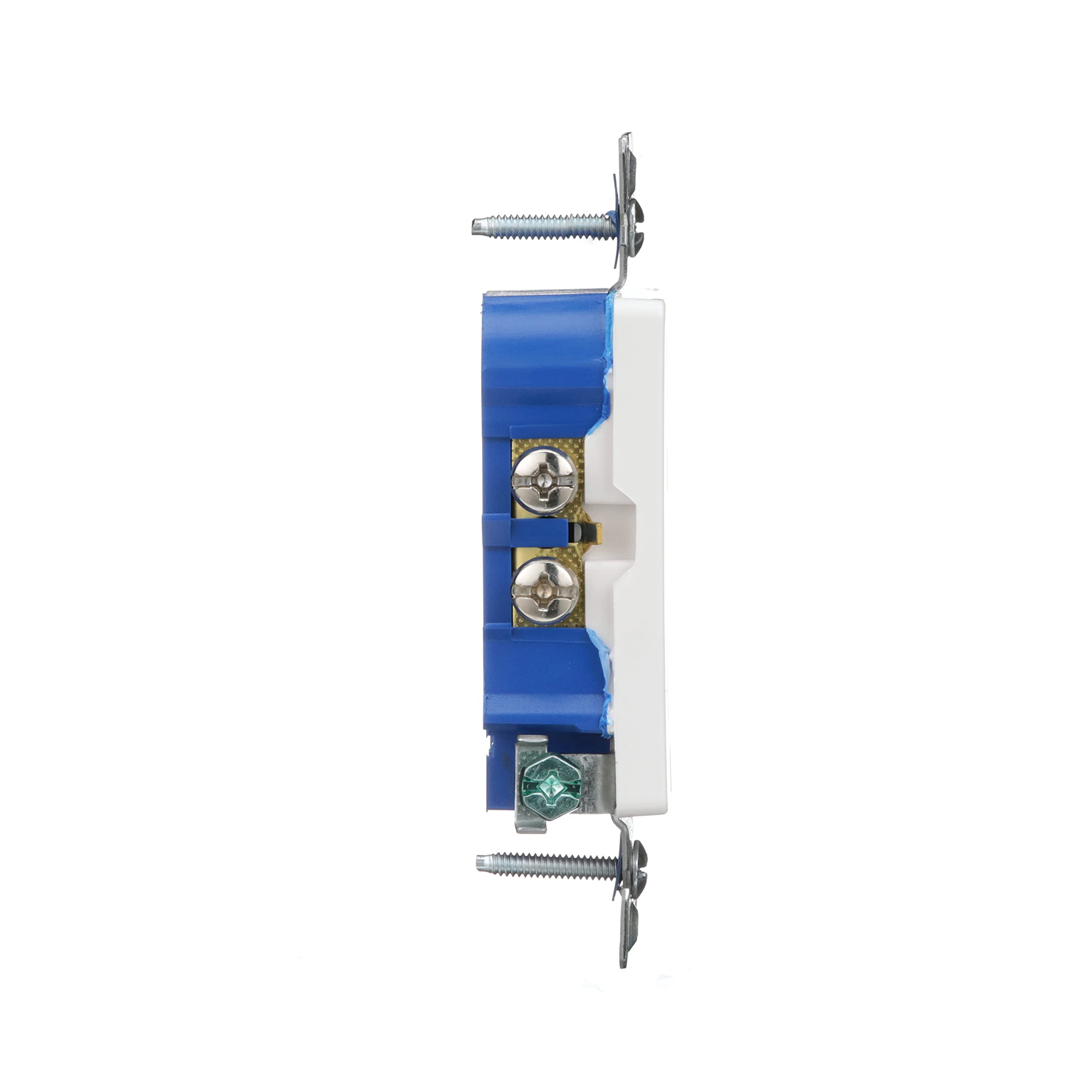

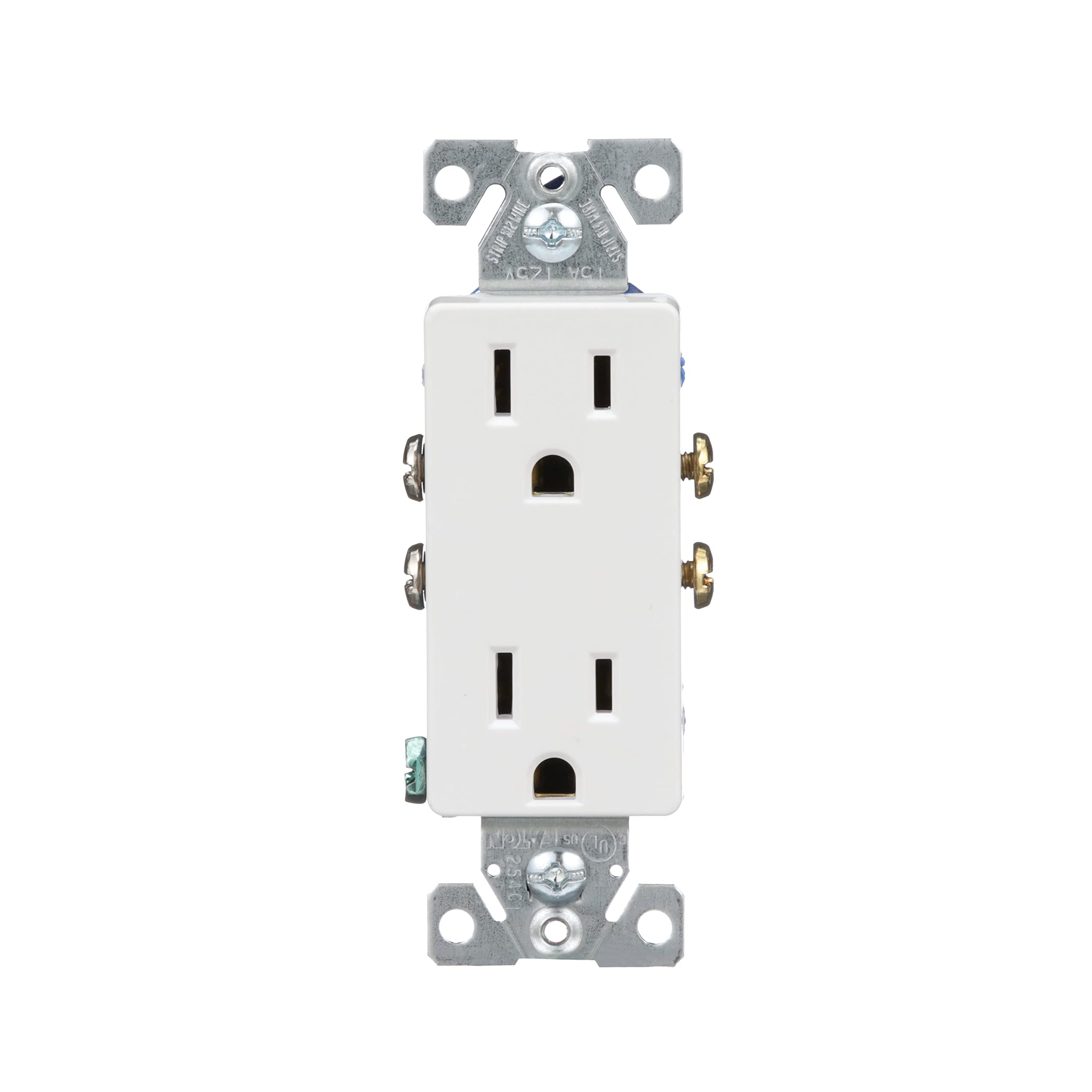

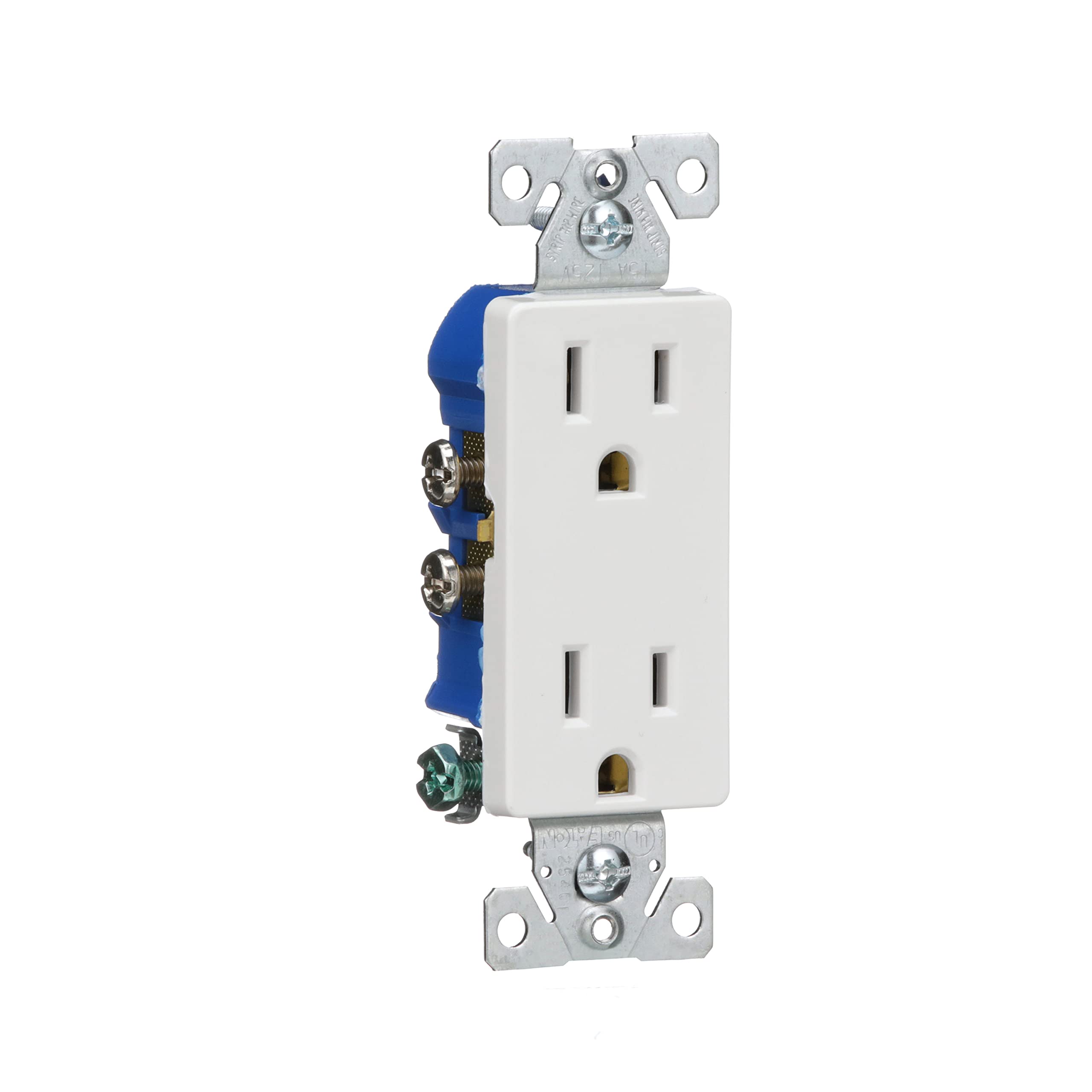

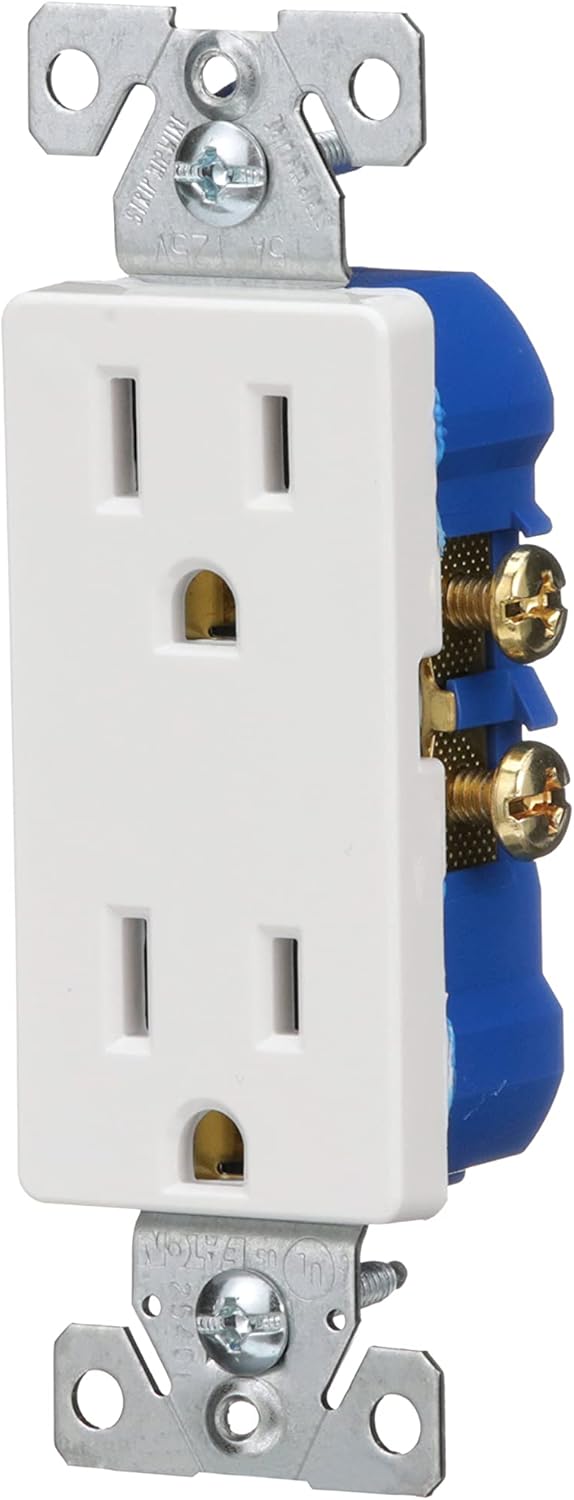

The EATON TR1107W is a duplex receptacle. This residential grade decorator duplex receptacle is tamper-resistant and rated for 15A. Suitable for commercial and residential applications, it features a durable impact-resistant thermoplastic face and PVC body. The receptacle supports both side and push wiring.
- Tamper-resistant design for enhanced safety.
- Constructed with impact-resistant thermoplastic face and PVC body.
- Supports both side and push wiring for flexible installation.
Product Highlights
This tamper-resistant duplex receptacle is ideal for homes, schools, and childcare environments, ensuring safe and reliable power delivery.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: TR1107W
-
Country of Origin: USA
Technical Specifications
-
Color: White
-
Voltage: 125V
-
Amperage: 15A
-
Receptacle Type: Duplex
-
Mounting: Flush
-

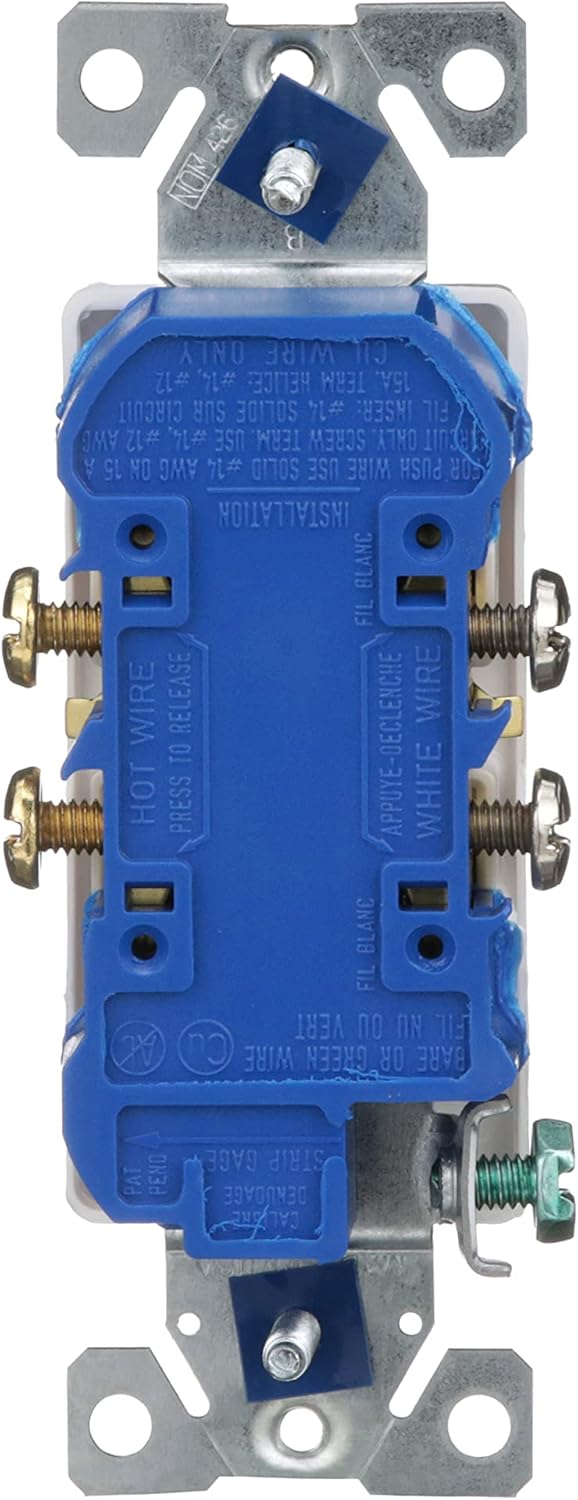

Wiring: Side and push
-
Material: Impact-resistant thermoplastic face, PVC body
-
Contact Material: Brass
-
Grade: Residential
-
Application: Commercial, Residential
-
NEMA Configuration: 5-15R
-
Termination: Screw
-
Features: Tamper-resistant
-
Type: Decorator Duplex, Standard
-
Constructional Feature: Tamper Resistant
-
Number of Poles: 2
-
Number of Wires: 3
-
Ground Type: Grounding
-
RoHS Compliant: True
-
Wire Size: 14 to 10 AWG
-
Connection Type: Screw
-
Temperature Rating: -20 to 60 Deg C
-
Flammability Rating: UL 94V-2
-
Applicable Standard: ANSI, NEC 406.12, NAFTA
-
Voltage Rating: 125 Volt AC
-
Current Rating: 15 Amp
-
Approval: UL (Canada and US), UL 498, NOM
-
Torque Rating: 14 Inch-Pound
-
Product Type: ELECTRICAL_OUTLET
-
Manufacturer: EATON
-
Brand: Eaton
-
Model / MPN: TR1107W
-
Series: TR1107
-
Terminal Type: Screw
-
Amperage Rating: 15 A
-
Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
-
Face/body material: PVC body Impact-resistant thermoplastic face
-
Receptacle type: Duplex
-
Certifications: cULus Listed NOM
-
Device type: Receptacle
-
Style type: Decorator
-
Design type: Straight blade
