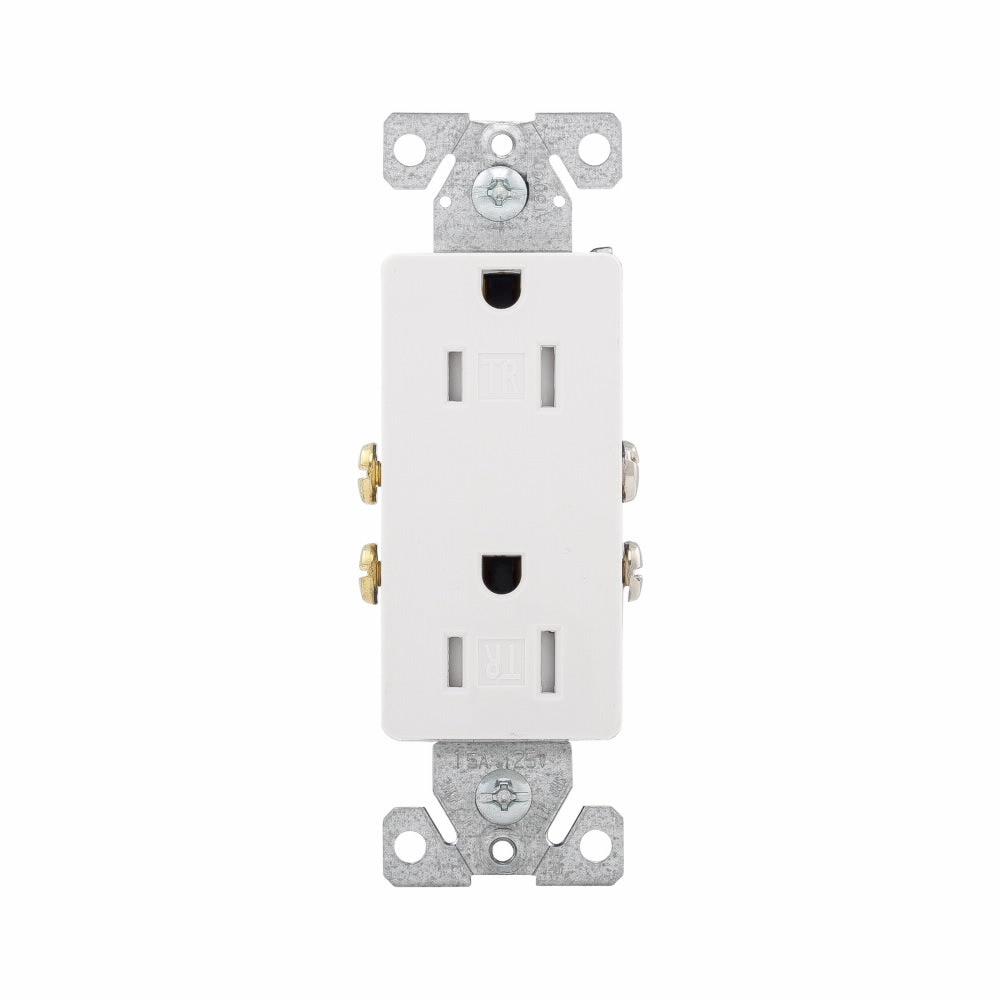

EATON TR1107W-BOX TR1107 Decorator Duplex Tamper-Resistant Straight Blade Receptacle 125 VAC 15 A 2 Poles 3 Wires

Product Description

The EATON TR1107W-BOX is a decorator duplex tamper-resistant straight blade receptacle designed for various indoor applications. This receptacle operates at 125 VAC and supports up to 15 A. It features two poles and three wires, making it suitable for residential use. Its durable thermoplastic body withstands impact and is chemical-resistant. The tamper-resistant design helps protect against foreign object insertion. Compliance with the 2014 NEC Article 406.12 is ensured.

• Suitable for 14 to 10 AWG wire terminals
• Impact-resistant thermoplastic construction
• Flush mounting and screw connection

Product Highlights

This receptacle features visual identification for tamper resistance and is easy to install with terminal screws pre-backed for easy wiring.

Product Information

Standard Information

• Manufacturer: EATON
• Part Number: TR1107W-BOX

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• NEMA Rating: NEMA 5-15R
• Temperature Rating: -4 to 158 degrees F
• Dimensions: 4.193 inches H x 1.015 inches D
• Material: Thermoplastic
• Number of Poles: 2
• Number of Wires: 3
• Terminal Type: Screw
• Grade: Residential/Standard
