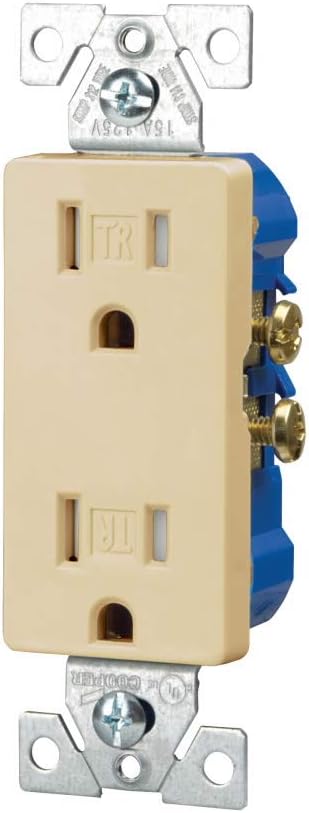

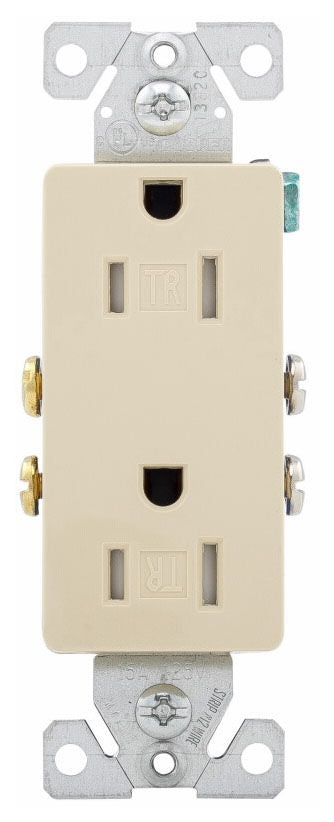

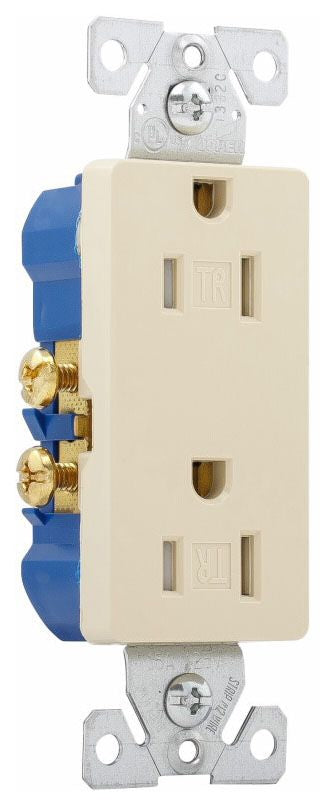

Eaton TR1107V-BOX Tamper Resistant Decorator Duplex Receptacle 15A

Product Description

The EATON TR1107V-BOX is a tamper-resistant decorator duplex receptacle. This receptacle provides compliance with 2011 NEC Article 406.12. It features a durable impact-resistant thermoplastic face and back body. The duplex receptacle has terminal screws backed out and ready to wire.

• Tamper Resistant
• Decorator Duplex Receptacle
• Compliant with 2011 NEC Article 406.12

Product Highlights

This EATON decorator duplex receptacle is ideal for residential applications requiring tamper resistance and durability. It is easy to install with built-in wire strippers and backed-out terminal screws.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR1107V-BOX
• Country of Origin: USA

Technical Specifications

• Voltage: 125 Volts
• Material: Thermoplastic,Nylon
• Compatible Devices: All
• Batteries Required?: No
• Included Components: Duplex Receptacle
• Amperage: 15 A
• Poles: 2
• Wires: 3
• Receptacle Type: Decorator Straight Blade Duplex
• NEMA Configuration: NEMA 5-15R
• Listing: cULus listed to UL498, file no. E15058, NOM certified
• Compliance: NAFTA compliant
• Voltage Rating: 125 VAC
• Number Of Poles: 2
• Number of Wires: 3
• Amperage Rating: 15A
• Terminal Type: Back and Side Wired
• Type: Decorator
• Grade: Standard
• Temperature Rating: -20 to 70 deg C
• Vendor SKU: TR1107V-BOX
• UPC: 032664665165
• UNSPSC: 39121406
• Standard & Approvals: CSA Certified, cULus Listed, NOM/ANSI Certified, UL Listed, RoHS Complaint
• Manufacturer: EATON
• Brand: EATON
• Wiring Method: Side and push
• Mounting Method: Flush
• Connection Type: Screw
• Allowable Wire Size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Torque Rating: 14 lbf-inch
• Design Type: Straight blade
• Face/Body Material: PVC body Impact-resistant thermoplastic face
• Frequency Rating: 60 Hz
• Wiring Type: Push-in, Side
• Wire Size: 14 to 10 AWG
• Operating Temperature: -20 to 60 deg C
