Eaton TR1107LA Tmpr Rst Grdg Rcpt 15 Ampere

Product Description

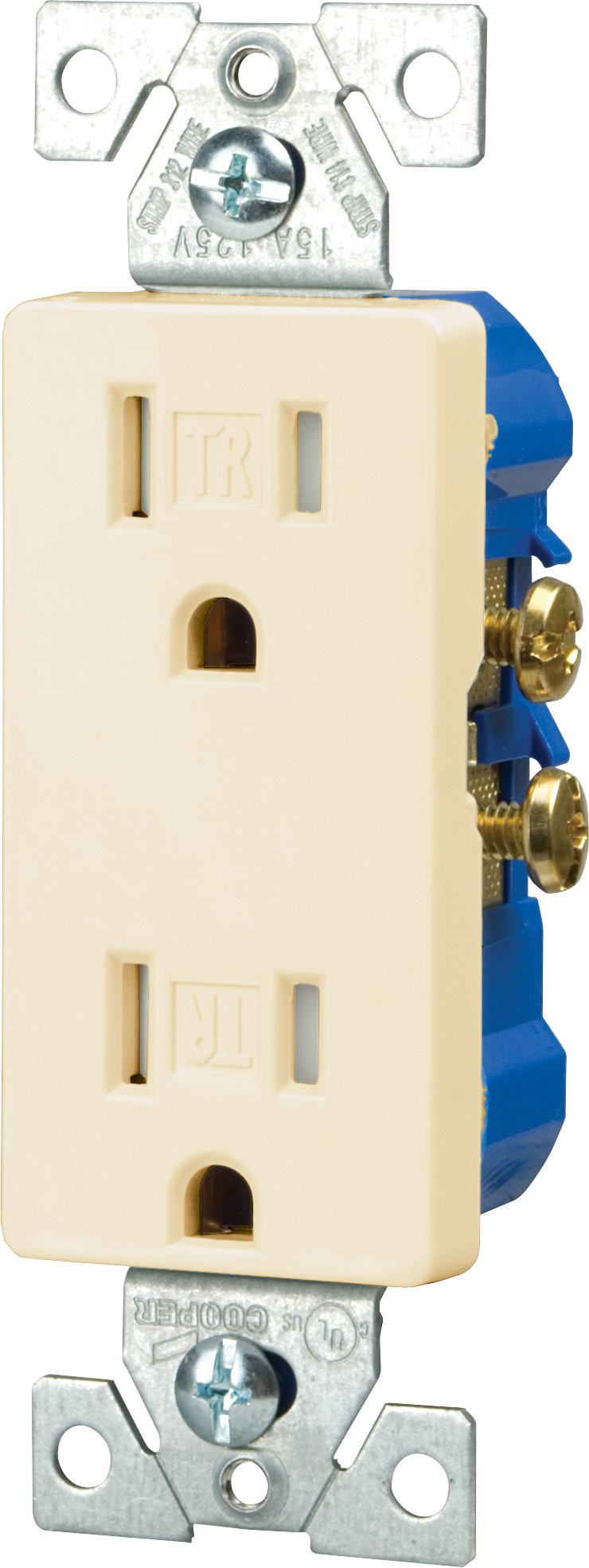

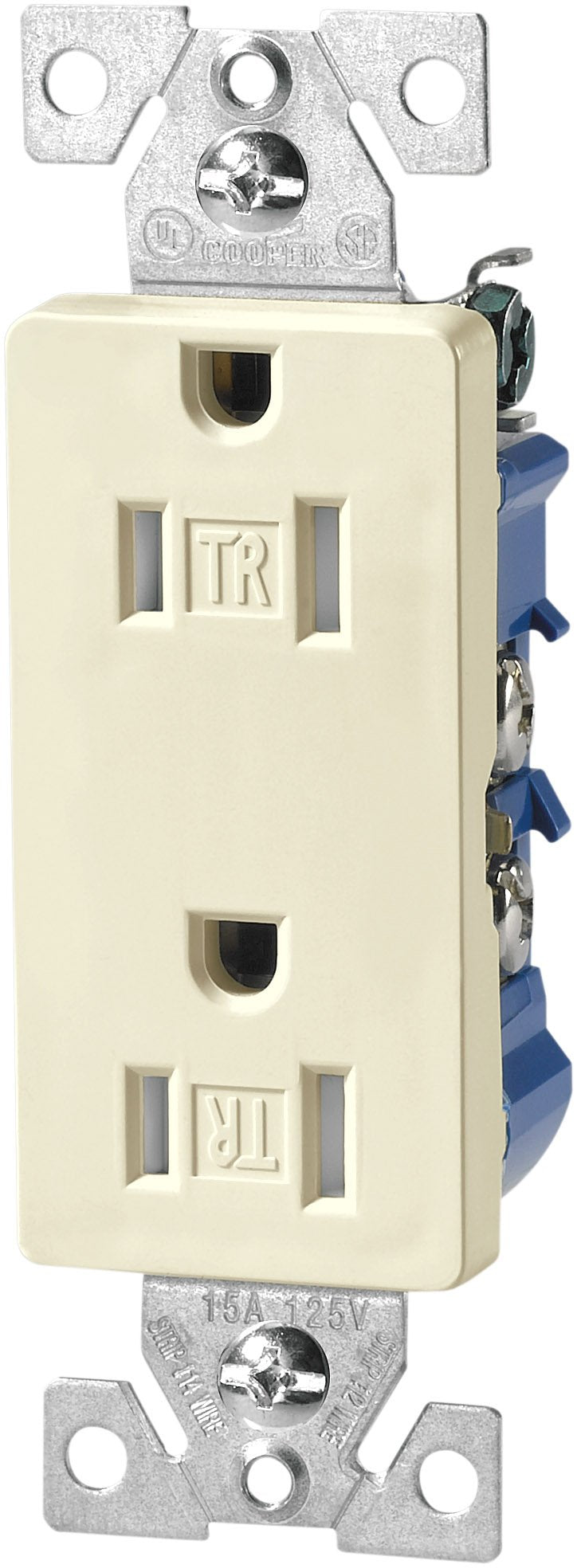

The EATON TR1107LA is a decorator duplex receptacle with a thermoplastic face and back body. Rated at 125 VAC and 15 Ampere, this residential grade receptacle is suitable for commercial and residential applications. It is UL, CSA, and NOM approved and features a tamper-resistant design.

• Decorator duplex type
• Thermoplastic face/back body material
• Tamper resistant
• Residential grade
• UL, CSA, and NOM approvals

Product Highlights

This Eaton receptacle provides a safe and durable electrical connection for standard outlets. Ideal for homes and businesses.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR1107LA
• Country of Origin: USA

Technical Specifications

• Type: Decorator Duplex
• Material: Thermoplastic
• Color: Light Almond
• Configuration: 5-15R
• Wires: 3
• Grade: Residential Grade
• Approvals: UL (Canada and US); UL 498; CSA C22.2; NOM 426
• Voltage Rating: 125 VAC
• Current Rating: 15 Ampere
• Manufacturer: EATON
• Brand: Eaton
• Model / MPN: TR1107LA
• Product Type: Receptacle
• Product Group: Home Improvement
• Country Of Origin: USA
• Product Length/Depth: 1.3 in
• Product Height: 3.81 in
• Product Width: 0.69 in
• Certifications: cULus Listed, NOM
• Device type: Receptacle
• Amperage Rating: 15A
• Voltage rating: 125V
• Contact material: Brass
• Features: Tamper resistant
• Application: Commercial/residential
• Device grade: Standard grade
• Wiring method: Side and push
• Number of poles: Two-pole
• Style type: Decorator
• Packaging type: Core pack
• Connection type: Screw
• Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• NEMA configuration: 5-15R
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: PVC body, Impact-resistant thermoplastic face
• Receptacle type: Duplex
