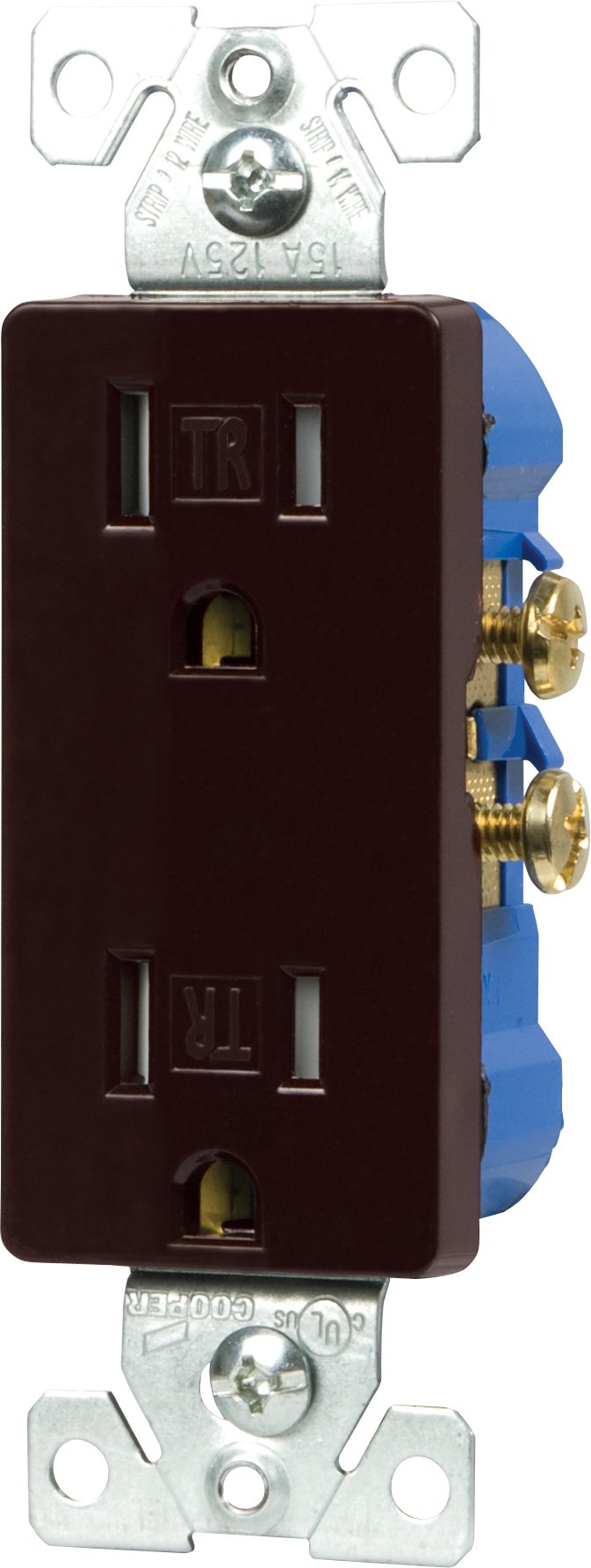

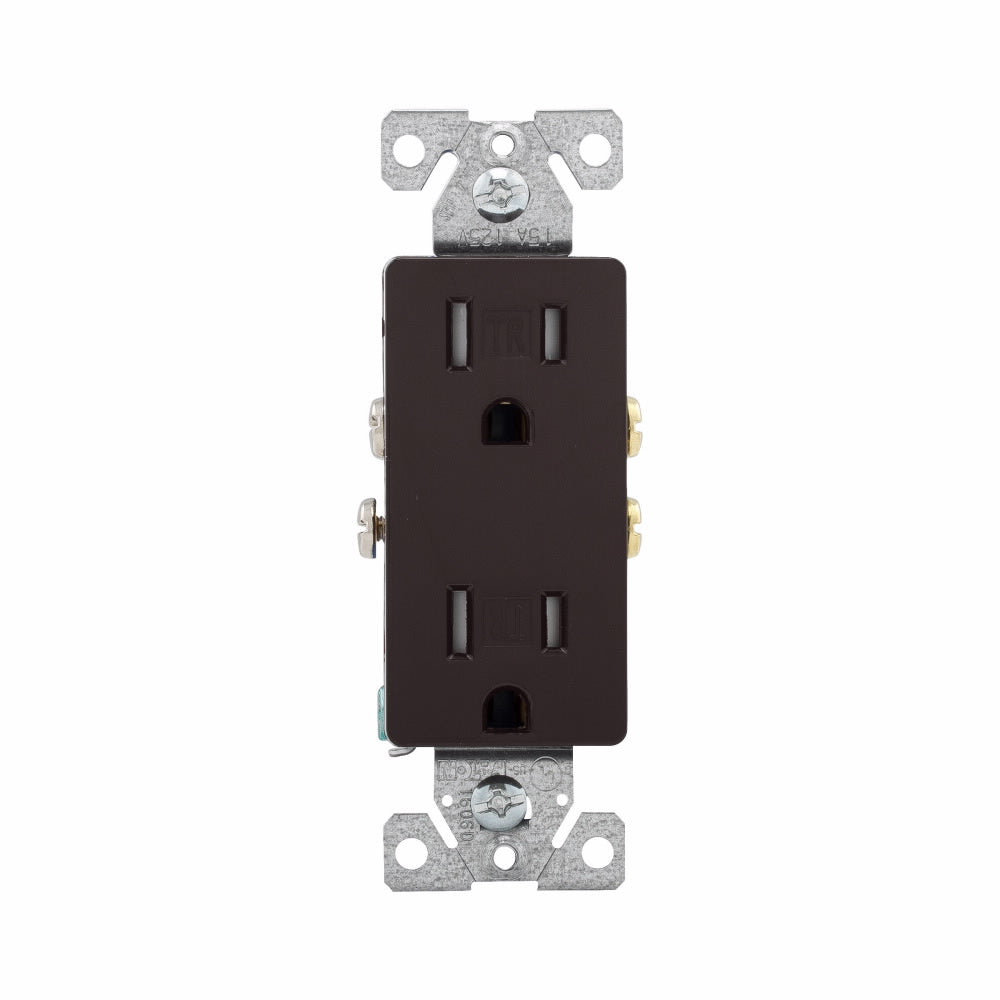

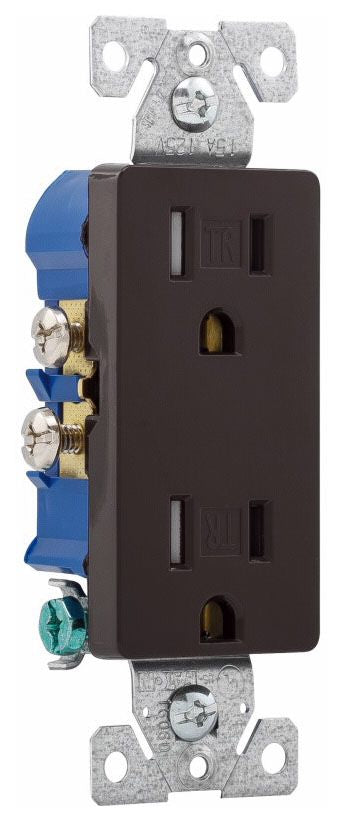

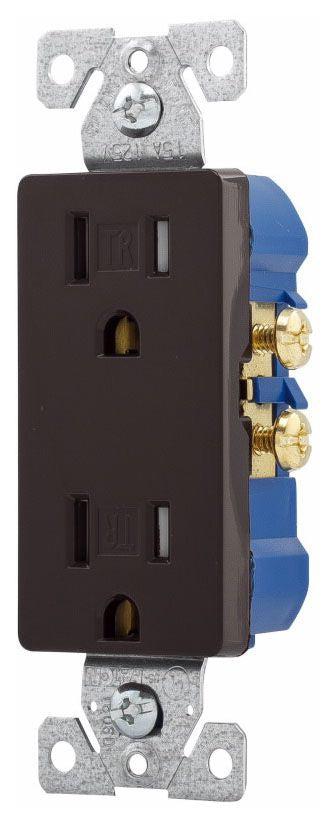

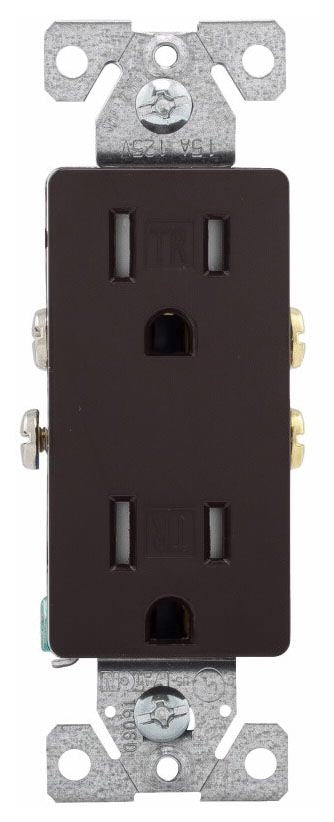

Eaton TR1107B-BOX Duplex Decorator Straight Blade Tamper Resistant Grounding Receptacle 125 VAC, 15 A, 2 Poles, 3 Wires

Product Description

The Eaton TR1107B-BOX is a duplex decorator straight blade tamper resistant grounding receptacle. This receptacle is compliant with 2011 NEC article 406.12. It features a durable impact resistant thermoplastic face and back body. Terminal screws are backed out and ready to wire. It is suitable for use in dwelling units.

• Tamper resistant
• Compliant with 2011 NEC article 406.12
• Durable impact resistant thermoplastic face and back body
• TR designation provides visual identification

Product Highlights

This Eaton receptacle provides a permanent solution for protection against electrical shock. It is ideal for living rooms, play rooms, bedrooms, garages, and other spaces.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR1107B-BOX
• Country of Origin: USA

Technical Specifications

• Amperage: 15 A
• Voltage: 125 VAC
• Poles: 2
• Wires: 3
• Type: Duplex Decorator Straight Blade Tamper Resistant Grounding Receptacle
• Receptacle Type: Decorator Duplex
• Application: Standard Duty
• Grade: Standard
• Material: Thermoplastic
• NEMA Rating: NEMA 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: cULus Listed|UL 498 File No. E15058|NOM Certified
• Temperature Rating: -4 to 158 deg F
• Terminal Type: Screw
• Amperage Rating: 15A
• Voltage rating: 125V
• Contact material: Brass
• Wiring method: Side and push
• Mounting method: Flush
• Style type: Decorator
• Connection type: Screw
• Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• NEMA configuration: 5-15R
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: Impact-resistant thermoplastic face PVC body
• Receptacle type: Duplex
• Flammability Rating: UL 94-V2
• Dielectric Strength: 2000 Volt
• Wire Size: 14 to 10 AWG
