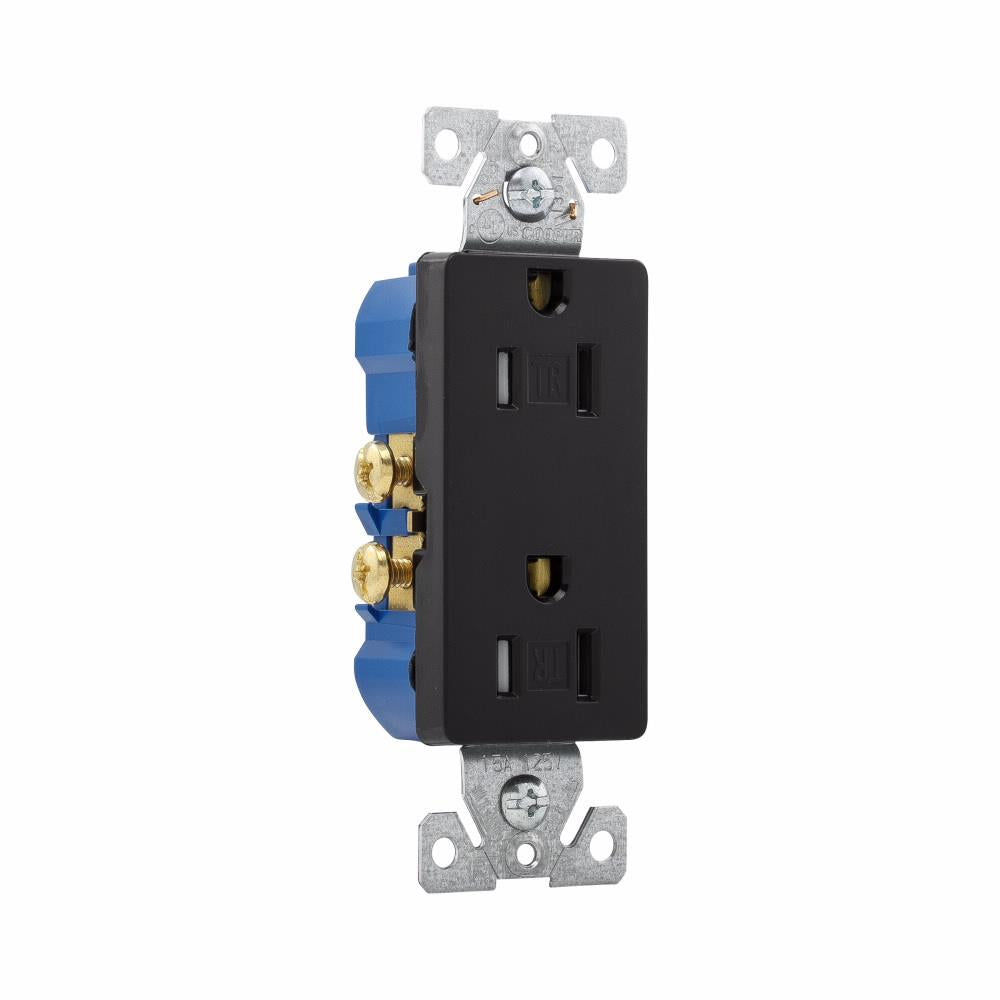

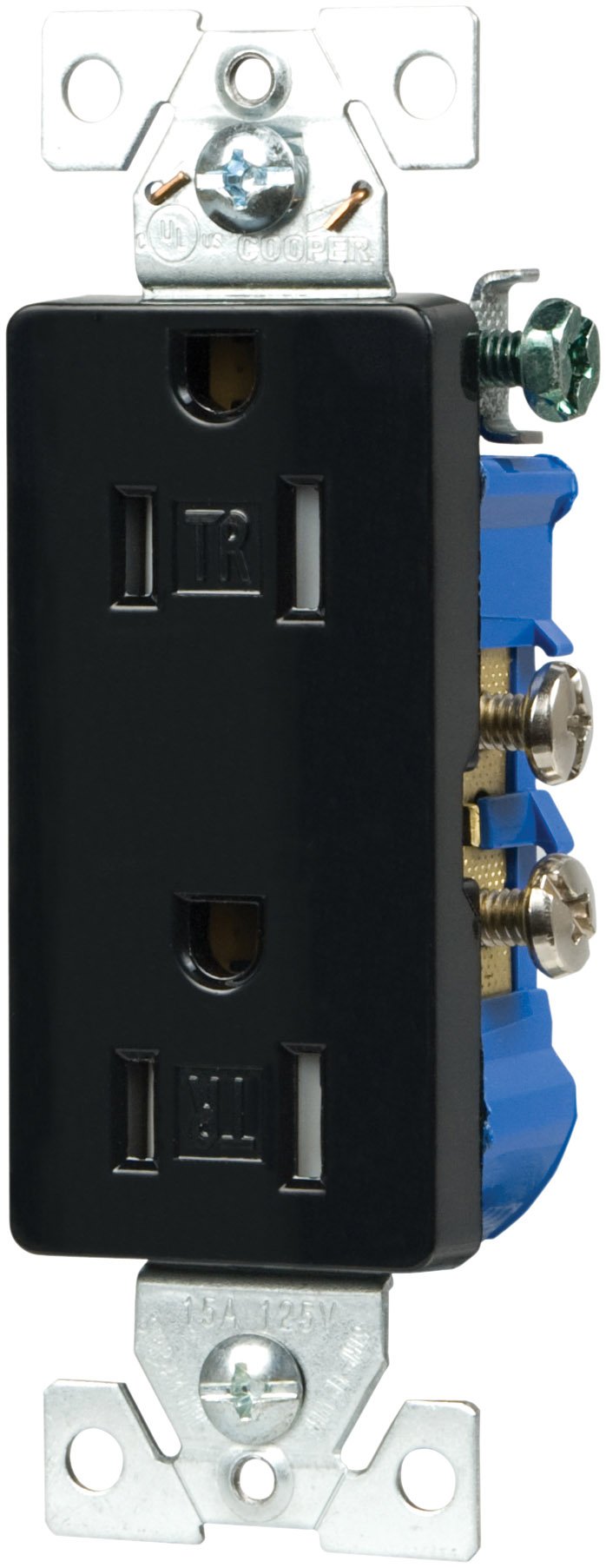

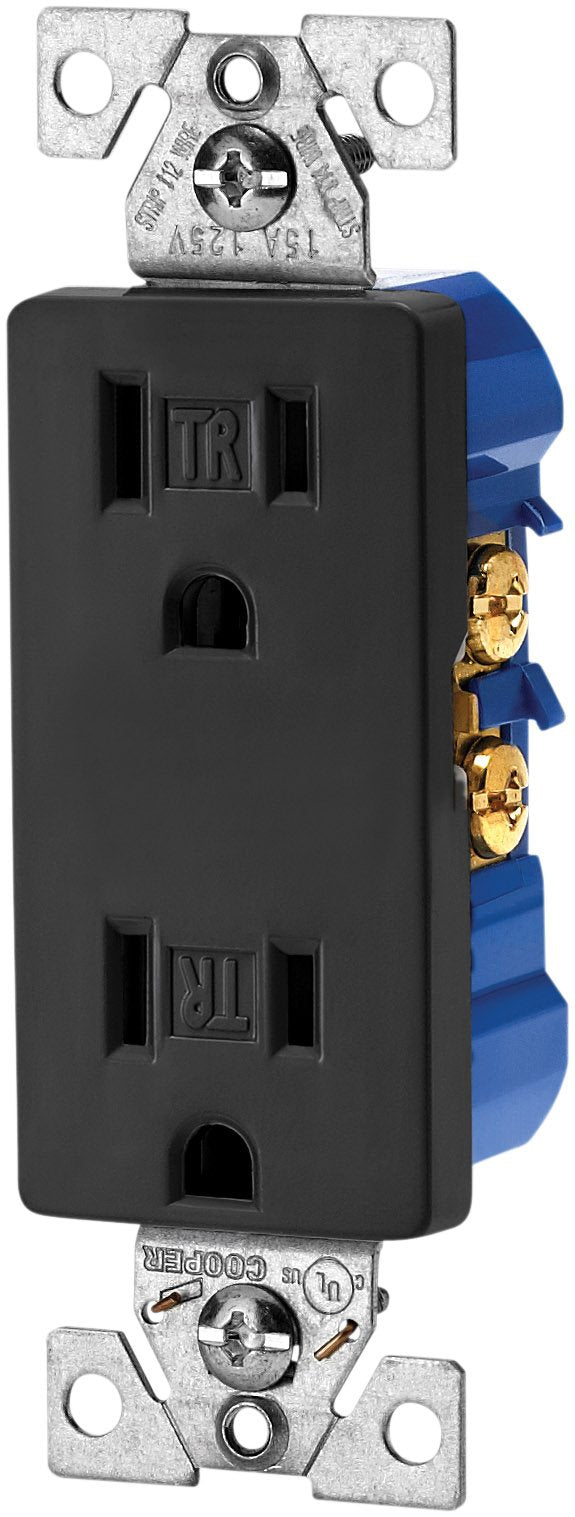

Eaton TR1107-9BK Tamper Resistant Decorator Duplex Receptacle 15A 125V

Product Description

The Eaton TR1107-9BK tamper resistant decorator receptacles with auto ground provide compliance with 2011 NEC article 406.12. The durable impact resistant thermoplastic face and back body is virtually unbreakable. This grounding receptacle is rated to 125 VAC, 15 A, and NEMA 5-15R. It is suitable for use in dwelling units.

• Longer, wider bridged strap provides 40% more contact area with wallboard, virtually eliminating floating installations
• Patented built-in wire looper for pre-looping
• Double wipe ground contacts ensure long term ground retention

Product Highlights

This Eaton duplex receptacle features a safety shutter system that prevents insertion of foreign objects. It is ideal for living rooms, play rooms, and bedrooms.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TR1107-9BK

Technical Specifications

• Grade: Standard
• Material: Thermoplastic
• NEMA Rating: NEMA 5-15R
• Temperature Rating: -4 to 158 deg F
• Terminal Type: Screw
• Type: Duplex Decorator Straight Blade Tamper Resistant
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Product Type: ELECTRICAL_OUTLET
• Manufacturer: EATON
• Brand: Eaton
• Model / MPN: TR1107-9BK
• Standards/Approvals: cULus Listed|UL 498 File No. E15058|NOM Certified
• Certifications: cULus Listed, NOM
• Device type: Receptacle
• Application: Commercial/residential
• Device grade: Standard grade
• Wiring method: Side and push
• Mounting method: Flush
• Style type: Decorator
• Packaging type: Core pack
• Connection type: Screw
• Allowable wire size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• NEMA configuration: 5-15R
• Torque rating: 14 lbf-inch
• Design type: Straight blade
• Face/body material: PVC body, Impact-resistant thermoplastic face
• Receptacle type: Duplex
• Voltage: 120 Volts
• Total Power Outlets: 2
• Amperage: 15 Amps
• Connector Type: Plug-In
