Eaton TP558 4-11/16 SQR BX Power

Product Description

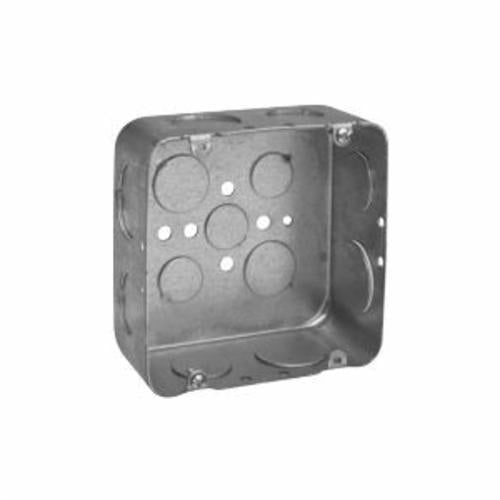

The Eaton TP558 is a square outlet box designed for various electrical installations. This box is made from steel and is drawn for durability. The dimensions are four inches and eleven-sixteenths wide, two inches and one-eighth deep, and four inches and eleven-sixteenths high. It can accommodate three one-half inch conduits and two three-fourths inch conduits. With a cubic capacity of forty-two cubic inches, it serves well in commercial and institutional buildings.

• Square outlet box made from steel
• Capacity of forty-two cubic inches
• Features three knockouts for half-inch and two for three-fourths inch conduits

Product Highlights

Ideal for use in commercial installations.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Thepitt

Technical Specifications

• Dimensions: 4.6900 inches X 4.6900 inches X 2.1300 inches
• Material: Steel
• Knockouts: (3) 1/2 inch; (2) 3/4 inch
• Cubic Capacity: 42 cubic inches
• Standard: UL
• Application: Commercial / Institutional Buildings / Structures
• Weight: 1.04
• Sub Brand: Crouse-Hinds series
