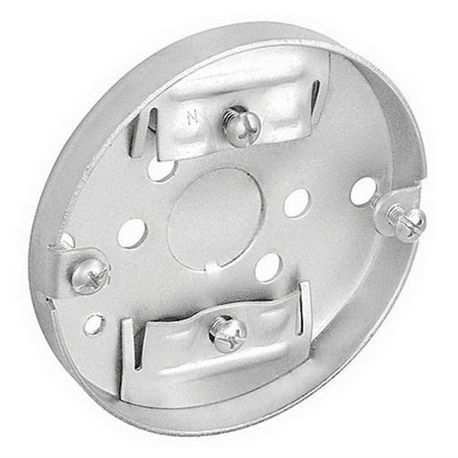

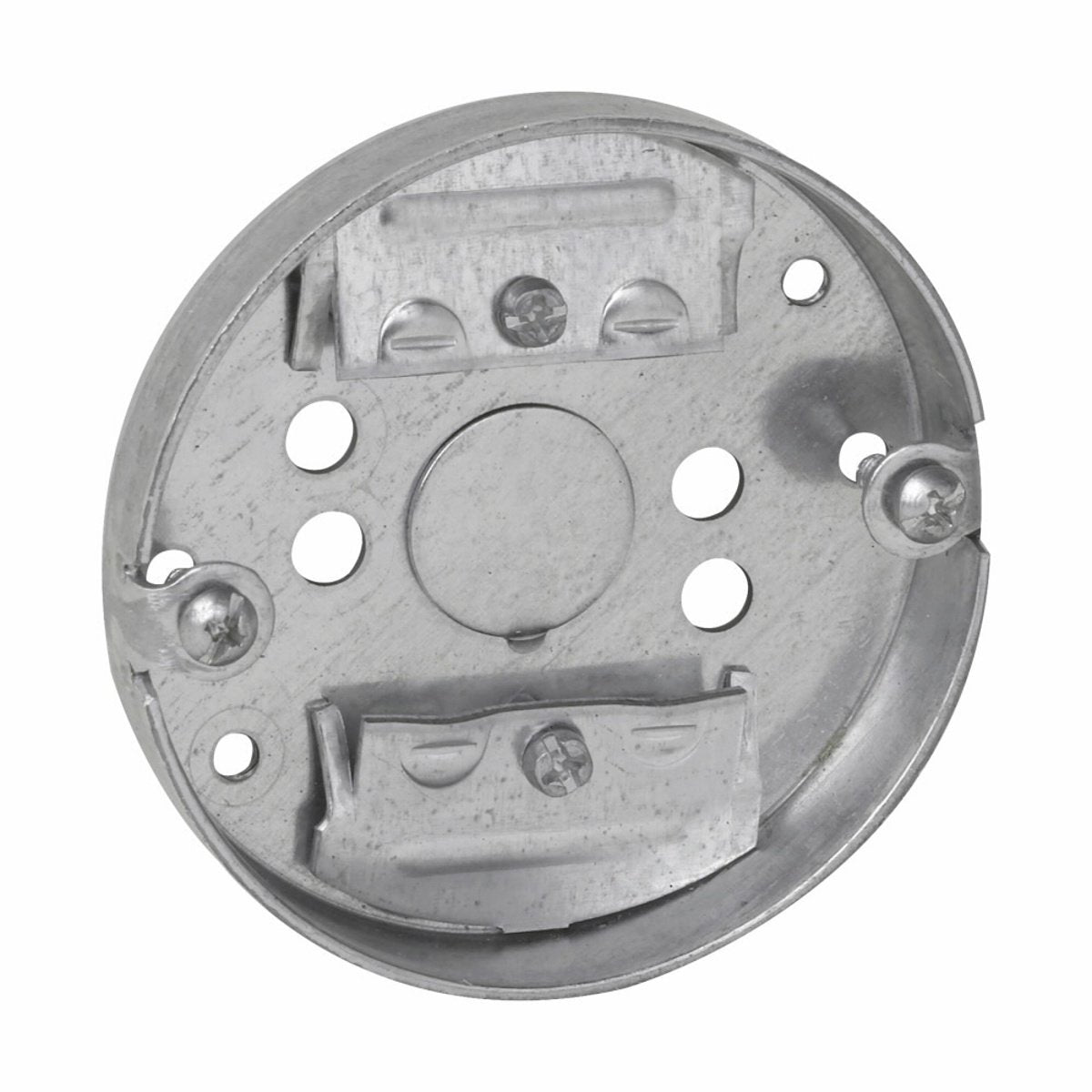

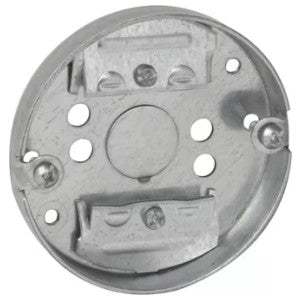

Eaton TP266 Crouse-Hinds series Round Ceiling Pan 3-1/4 inches

Product Description

The Eaton TP266 Crouse-Hinds series steel octagon outlet boxes, covers, adjustable bar hangers and ceiling pans can be used in the installation of ceiling or wall lighting fixtures or as a junction box. It has a 4 cubic inch capacity and is made of steel. It is suitable for commercial and institutional buildings.

• With Cable Clamp
• No Of Clamp Opening 4
• Conduit Size 1 - 1/2 In

Product Highlights

The Eaton TP266 ceiling pan is ideal for installing ceiling or wall lighting fixtures. It features a steel construction and a 3-1/4" size.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TP266
• Country of Origin: United States

Technical Specifications

• Catalog Number: TP266
• Manufacturer: Eaton Crouse-Hinds
• Brand: Eaton
• Sub Brand: Crouse-Hinds series
• Country of Origin: United States
• Made in USA: Yes
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
• Cubic Capacity: 4 Cubic In
• Material: Steel
• Standard: UL
• UPC: 786189102666
• GTIN: 00786189102666
• Item Type: Round ceiling pan
• Size: 3-1/4 In Diameter X 1/2 In Depth
• Cross Reference Products: 510LC
• Series: Crouse-Hinds
• Capacity: 4.0 cubic inch
• Conduit Size: 1/2"
• Mounting Type: Threaded
• Number of Knockouts: 5
• Shape: Round
• Standard & Approvals: UL Listed
• Product Length/Depth: 3.25 in
• Product Height: 0.25 in
• Product Width: 3.25 in
• Product Type: Round ceiling pan
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Box size: 3-1/4"
• Depth: 1/2"
• Cable knockouts: 4
• Conduit knockouts: (1) 1/2"
• Built-in clamps: Bottom
• Fixture rated: Fixture rated
• ECCN: EAR99
• UNSPSC: 39121317
• Use With: Fixture/Luminaire
• Bottom Knockouts: 1/2 in., Cable Clamps
• Box Capacity: 4 cu. in.
• Box Depth: 1/2 in.
• Box Shape: Round
• Side Knockouts: 1-1/2 in. (4)
