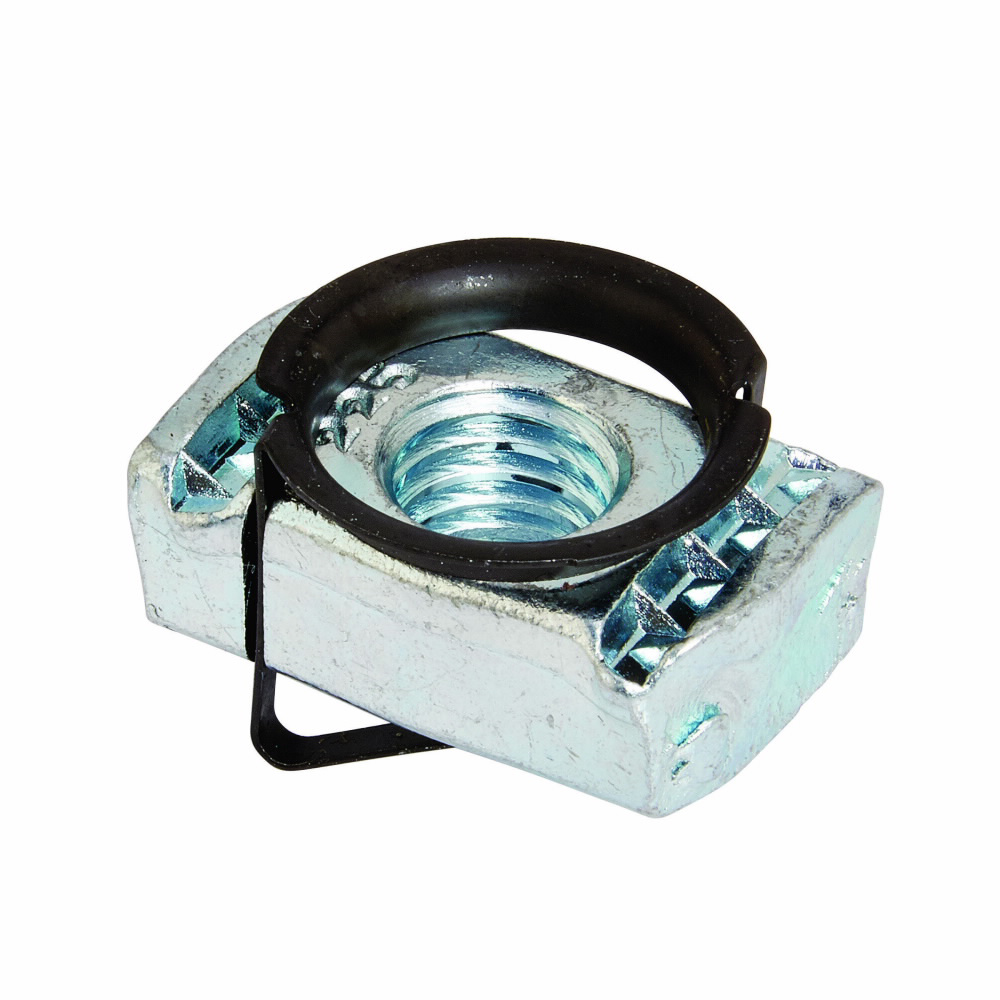

Eaton TN225 Twirl-nut Strut Channel Nut 1/2-13 Thread Steel

Product Description

The EATON TN225 is a twirl-nut style strut channel nut designed for use with 1/2 inch-13 threaded rod and standard strut channel framing systems. Manufactured from 12-gauge steel with an electro-plated zinc finish for corrosion resistance, this channel nut delivers a rated pullout strength of 1500 pounds and a slip strength of 1500 pounds. The twirl-nut design allows the installer to drop the nut into the strut channel slot and rotate it into position by hand, eliminating the need to slide the nut from an open end. Licensed electricians, plumbers, mechanical contractors, and pipe fitters rely on this hardware for securing threaded rod and support assemblies in strut-based installations.

The TN225 is suited for commercial and industrial applications where strut channel framing is used to support conduit, pipe, ductwork, cable tray, and mechanical equipment. It fits standard 1-5/8 inch strut channel profiles and is commonly installed in ceiling suspension systems, equipment support racks, and wall-bracket assemblies. The zinc plating makes it appropriate for dry and mildly corrosive interior environments. Mechanical and electrical contractors working to NFPA 70 (NEC) and ASME B1.1 threading standards will find this nut compatible with standard field hardware.

Key Features

• Twirl-nut design allows drop-in installation without sliding from channel end
• 1500 lb rated pullout strength and 1500 lb slip strength
• 1/2 inch-13 thread size for standard threaded rod
• 12-gauge steel construction for structural rigidity
• Electro-plated zinc finish for corrosion resistance in interior environments

Compatibility

Designed as an OEM-style strut channel nut for use with 1/2 inch-13 threaded rod in standard strut channel framing systems.

Installation Notes

Installation is typically performed by licensed electricians, mechanical contractors, or plumbers working on strut channel support assemblies. De-energize and depressurize any systems supported by the strut assembly before servicing hardware. Drop the TN225 into the strut slot and rotate 90 degrees to engage the channel flanges, then thread the rod and tighten with a standard wrench to the hardware specification for the application. Do not exceed the rated load values for the channel nut or the strut channel profile in use.

Technical Specifications

• Thread Size: 1/2 inch-13
• Pullout Strength: 1500 pounds
• Slip Strength: 1500 pounds
• Gauge: 12 gauge
• Material: Steel
• Finish: Electro-plated zinc
• UPC: 781011401535

Standard Information

• Brand: EATON
• Manufacturer Part Number: TN225
