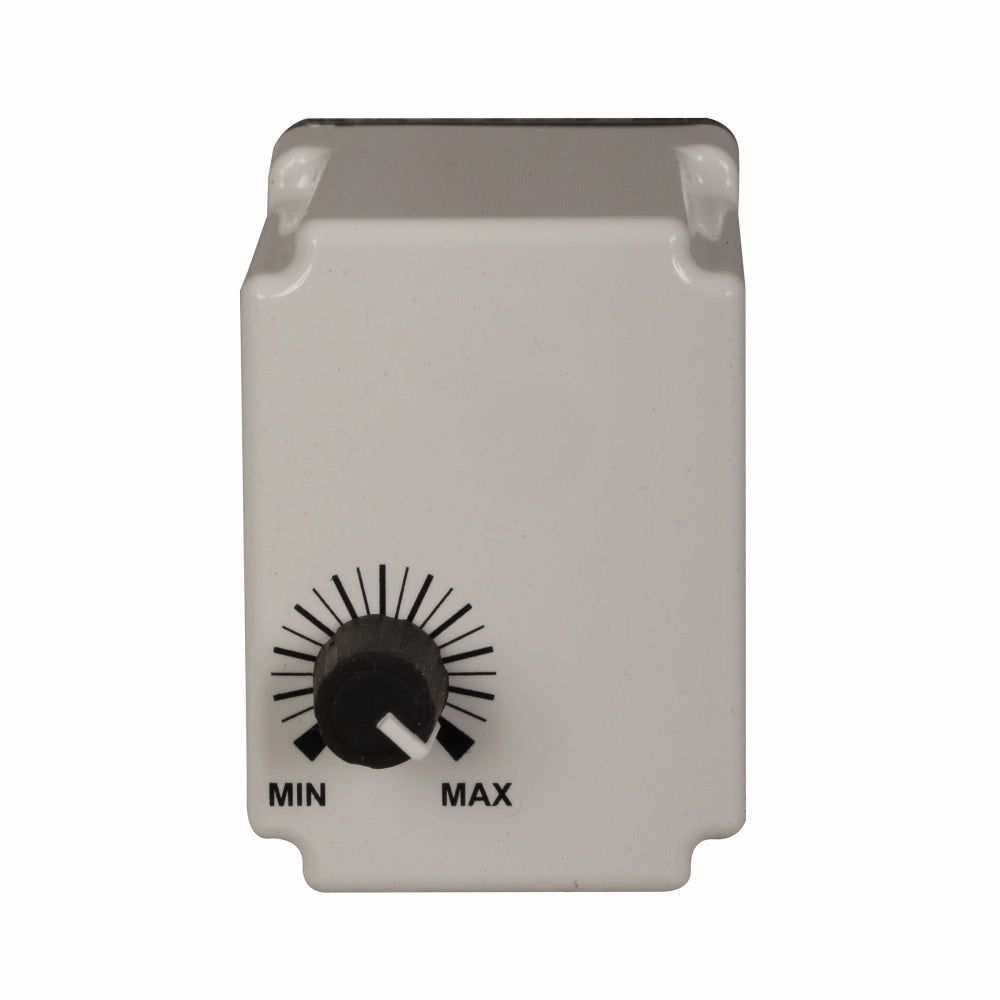

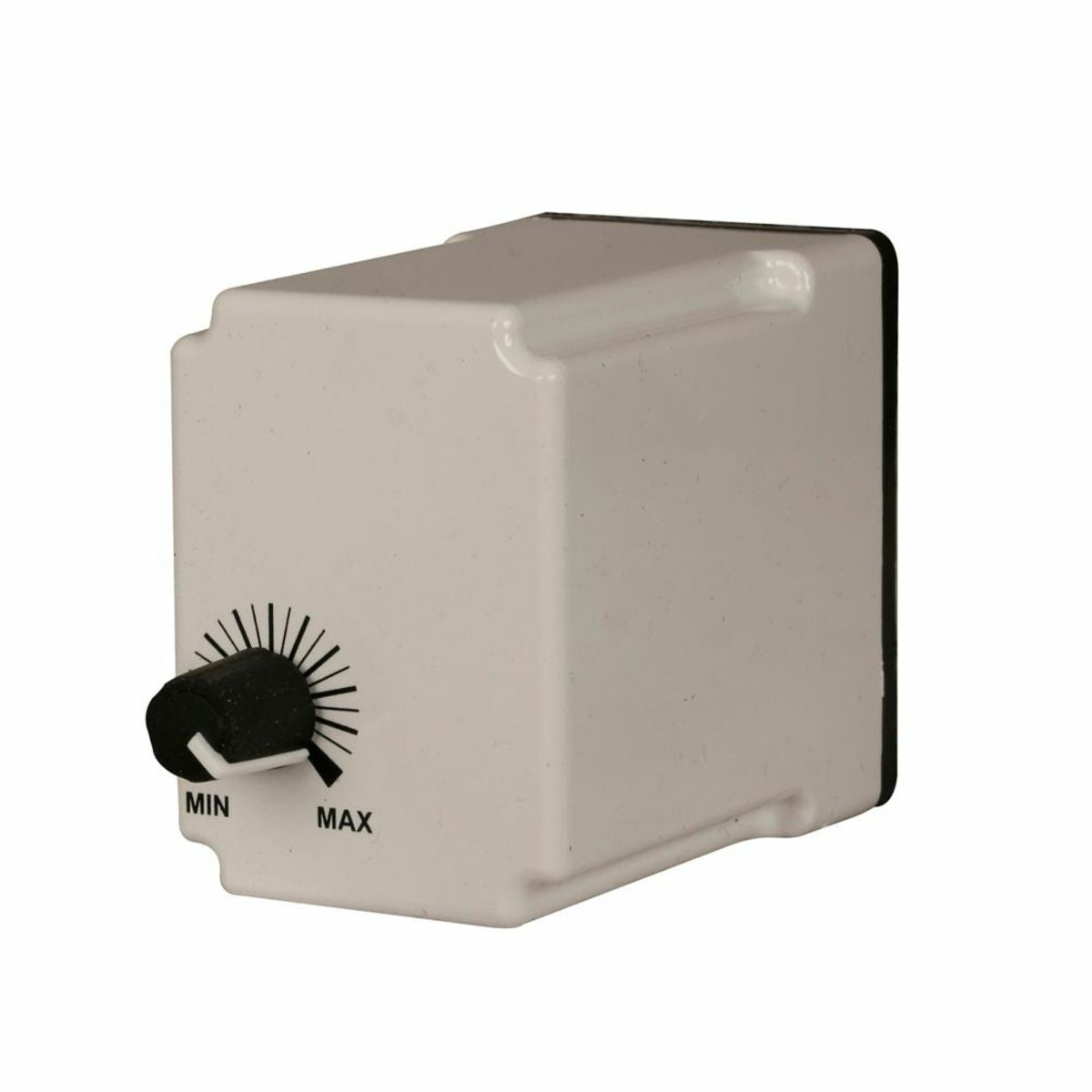

Eaton TMR5F15120 Timing Relay, 120V AC/DC OFF Delay Timer 0.3-30M

Product Description

Eaton TMR5F15120 is a timing relay designed for various applications. This relay operates on 120V AC or DC voltage and features an OFF delay control switch trigger function.

• Time delay settings ranging from 0.3 to 30 minutes
• 11-pin DPDT contact configuration
• Compatible with octal electrical connections

Product Highlights

The TMR5 series is suitable for commercial and institutional buildings, providing a reliable solution for power distribution and control systems.

Product Information

Standard Information

• Manufacturer: Eaton
• Country of Origin: United States

Technical Specifications

• Catalog Number: TMR5F15120
• Voltage Rating: 120 VAC/VDC
• Amperage Rating: 10 A
• Time Setting: 0.3 to 30 min
• Contact Configuration: DPDT
• Number of Pins: 11
• Temperature Rating: -18 to 150 deg F
• Mounting Type: Plug-In
• Standards/Approvals: RoHS Compliant, cULus Recognized, UL Listed, CE Certified
