Eaton TMCX8302 3-IN CRD GRPS

Product Description

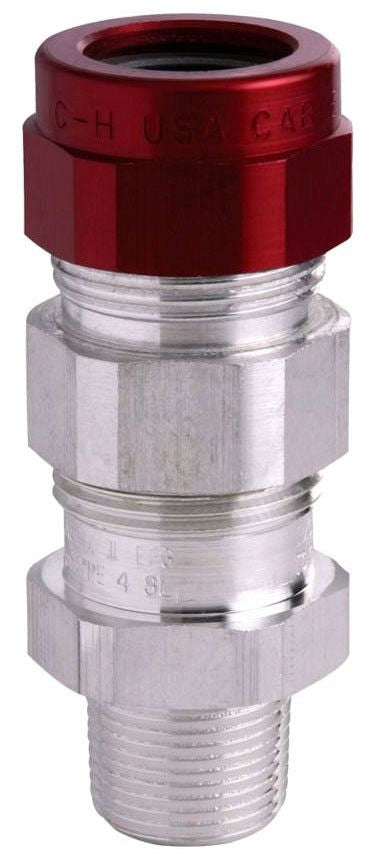

The Eaton Crouse-Hinds series TMCX cable gland, model TMCX8302, is designed for use in a range of industrial applications. This cable gland is suitable for both armored and non-armored barrier cable configurations. It is built with metal-clad corrugated aluminum for added durability and performance.

• Compatible with TECK armored and tray cable.
• Weather-tight IP56 rated enclosure for secure installations.
• Designed for temperatures from minus twenty-five to sixty degrees Celsius.

Product Highlights

This product ensures a reliable connection for industrial facilities, particularly in environments with rigorous demands.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• Type: Cable gland
• Size: 3 inches
• Material: Aluminum/Neoprene
• Connection: Male NPT
• Weight: 7.35 pounds
• Dimensions: 7.5 inches x 4.88 inches x 4.88 inches
• Temperature Rating: -25 to 60 degrees Celsius
• Enclosure: IP56; Class I Div 1 Group A B C D; Class II; Class III
