Eaton TMC9352 CRD GRPS 3-1/2 NPT

Product Description

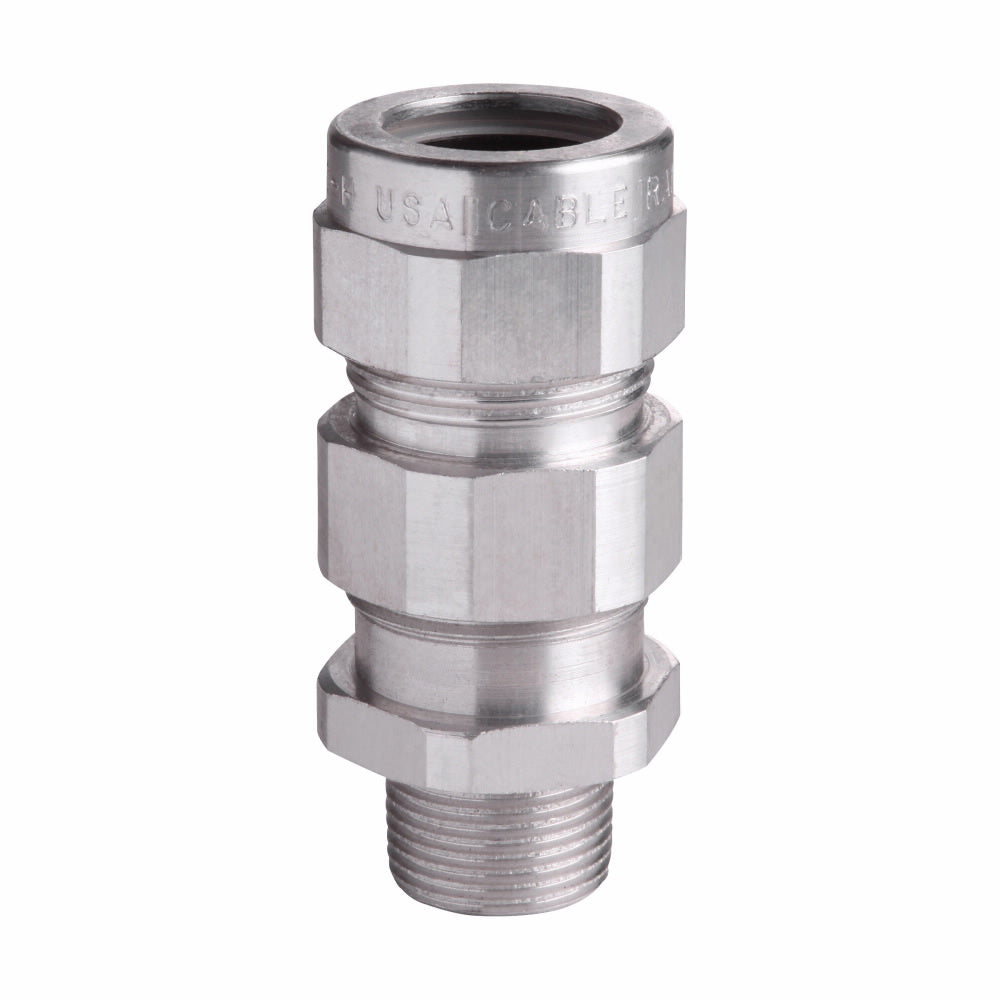

The Eaton Crouse-Hinds TMC9352 is a three-and-a-half-inch cable gland designed for armored cables. This metal-clad cable connector is suitable for TECK corrugated or interlocked steel and aluminum. It effectively provides strain relief while maintaining a secure connection.

• Outer sheath fit range of three point zero two inches to three point seven eight inches.
• Constructed from aluminum with neoprene for durability.
• Features a male NPT connection for easy installation.

Product Highlights

The TMC9352 is a general-purpose armored cable connector that is ideal for industrial settings. It meets UL standards for safety and is rated IP56 for protection against dust and water.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds
• Family Group: Fittings

Technical Specifications

• Weight: 5 lbs
• Size: 3/4 In
• Dimensions: 7.01 in x 5.38 in x 5.38 in
• Material: Aluminum/Neoprene
• Connection: Male NPT
• Temperature Rating: -25 to 60 Deg C
• Enclosure Rating: IP56
• Application: Industrial Facilities/Factories
