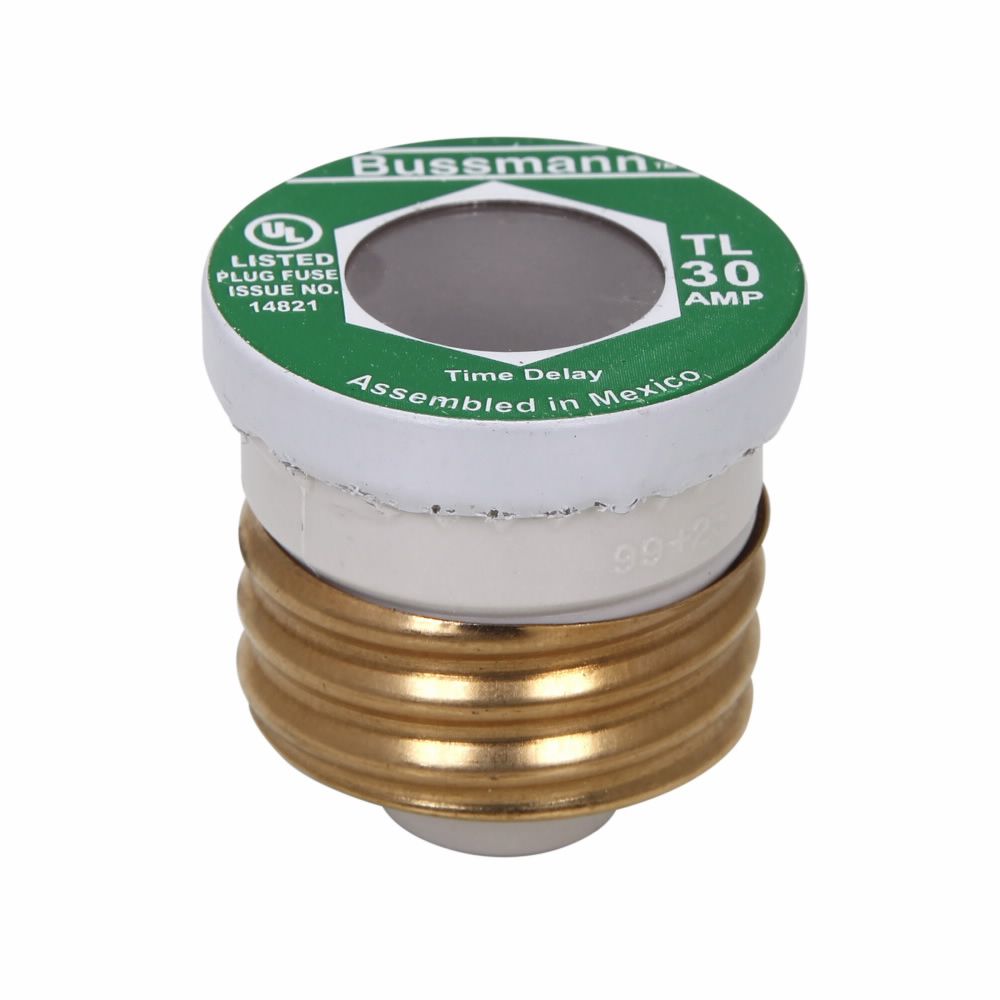

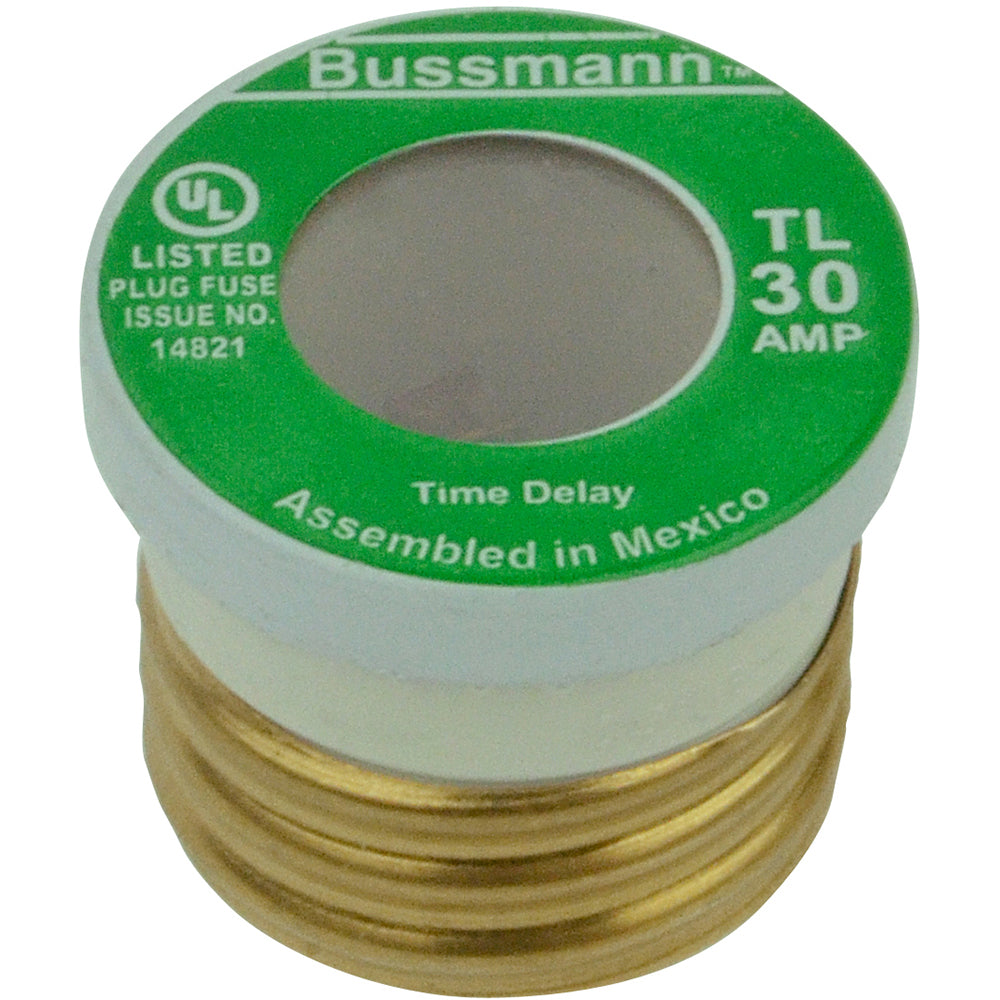

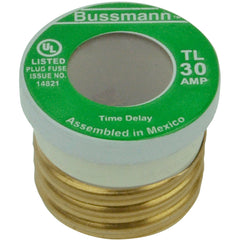

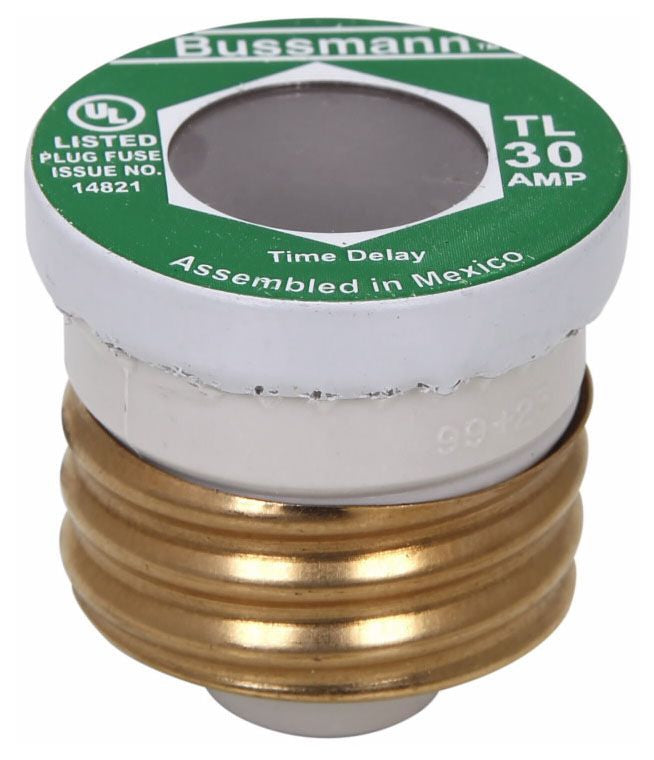

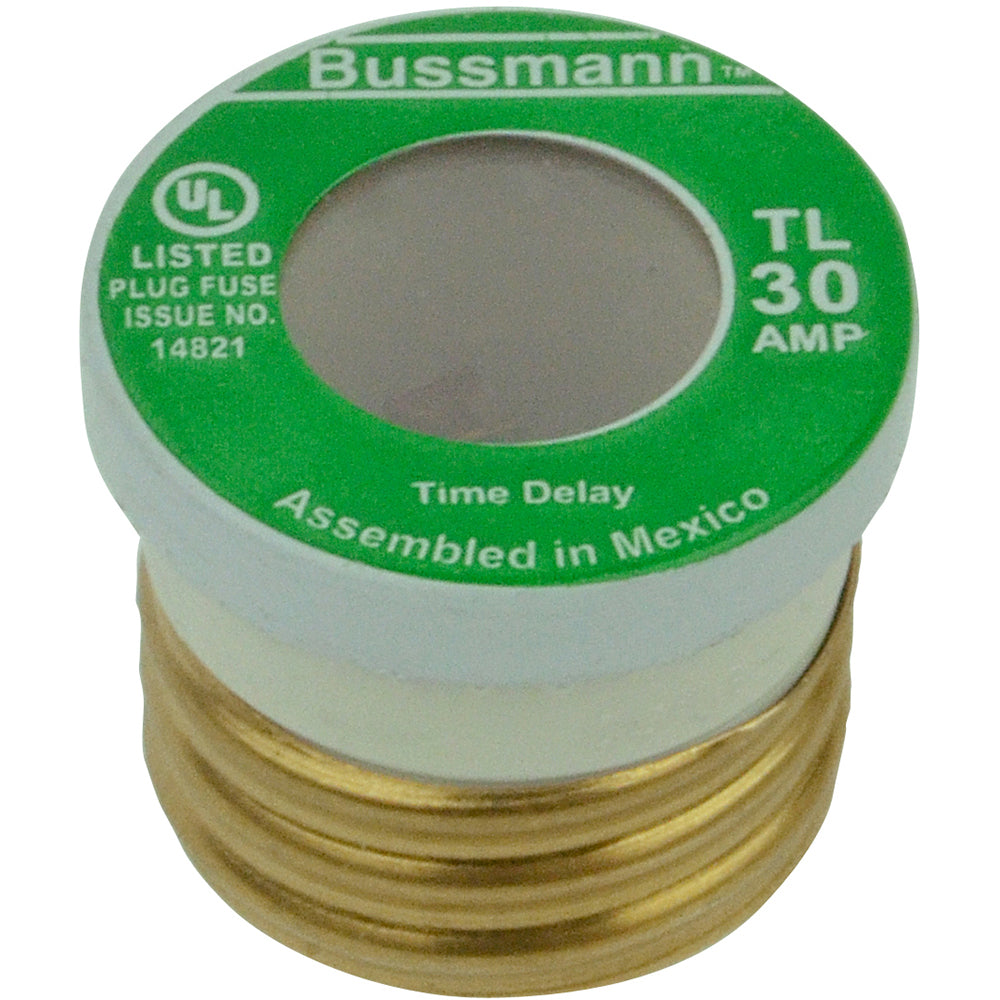

Eaton TL-30 Time Delay Plug Fuse 30 A 125 VAC (Threaded)

Product Description

The Eaton TL-30 is a time-delay (slow-blow) plug fuse rated 30 A at 125 VAC with a 10 kA interrupting capacity. It features a threaded Edison (screw-in) base with a stud terminal, a plastic round body and brass threads. The TL-30 is intended for small motor and high inductive load circuits, box cover units, and residential or light commercial circuits where high inrush currents occur.

• Rated 30 A at 125 VAC with 10 kA interrupting capacity; time-delay (slow-blow) characteristic

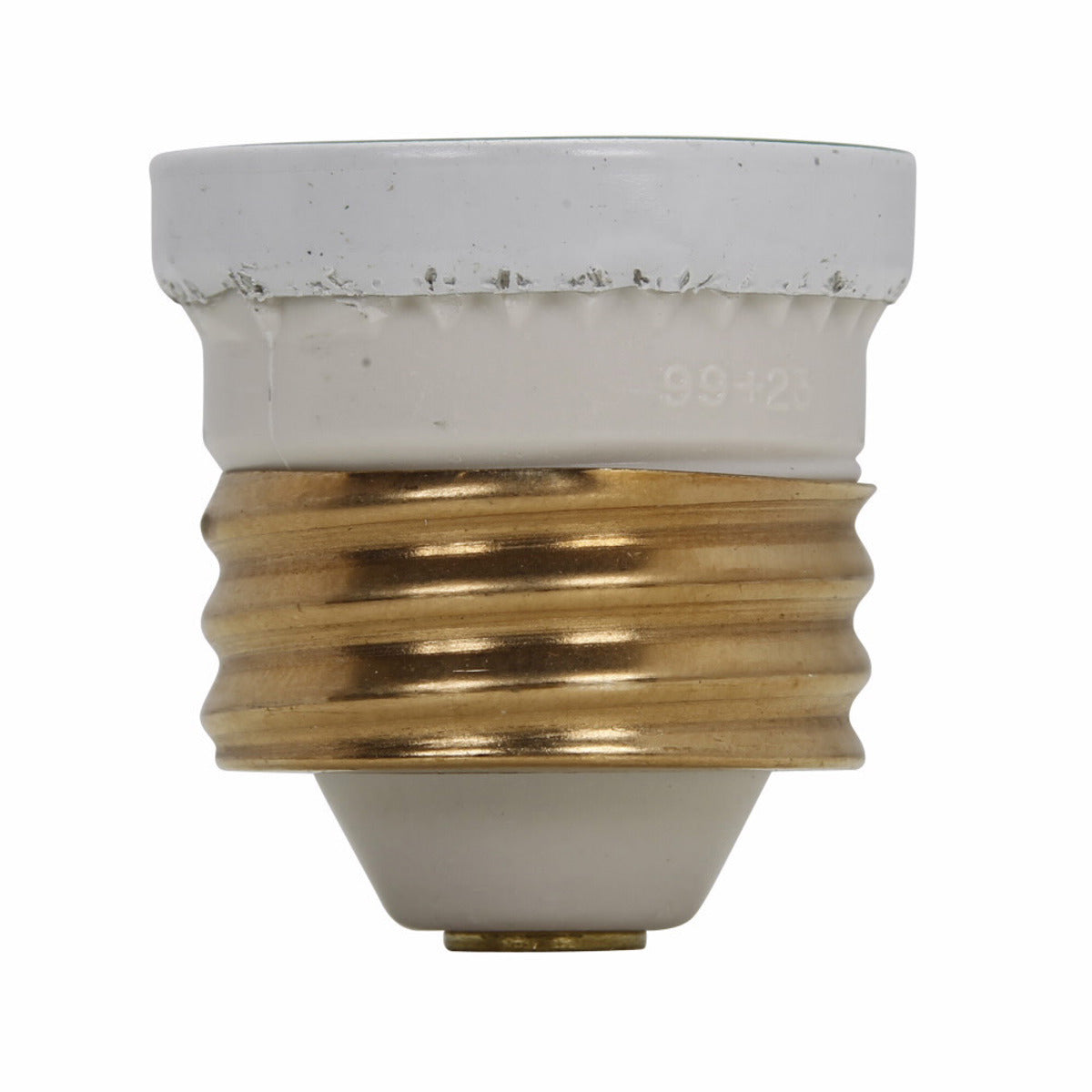

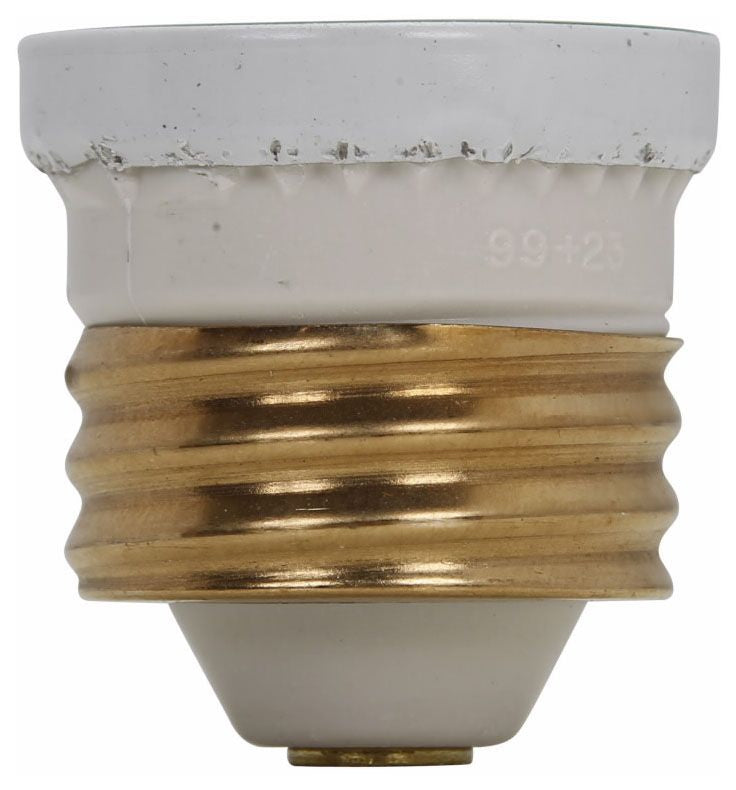

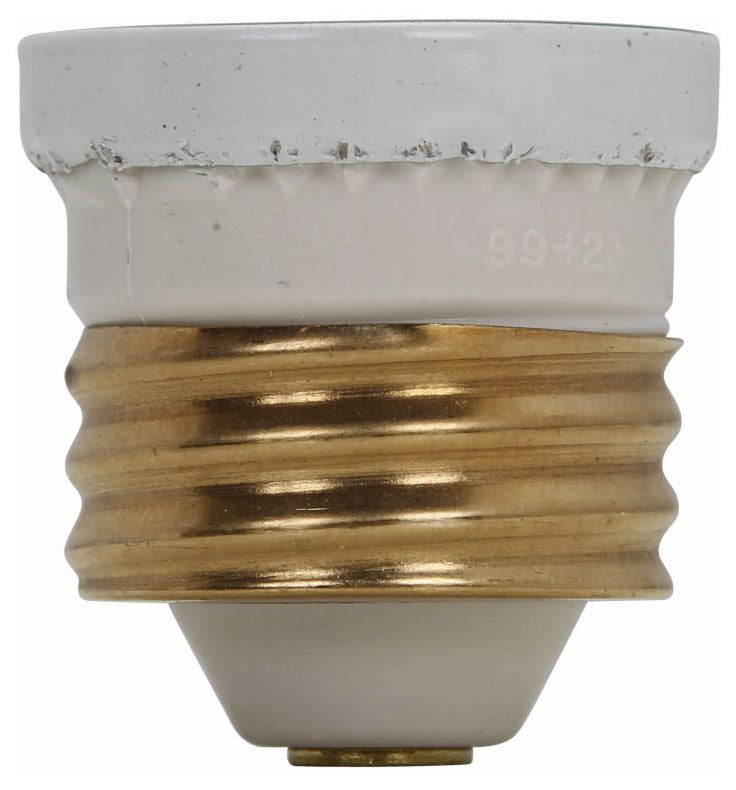

• Threaded Edison screw-in base with stud terminal; plastic body and brass threads; single element
• Applications include small motors, high inductive loads, box cover units, residential and light commercial circuits

Product Highlights

30 A time-delay Edison plug fuse; 125 VAC rating; 10 kA interrupting capacity; threaded stud mounting; plastic body with brass threads

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TL-30
• Country of Origin: Mexico

Technical Specifications

• Brand: EATON
• Manufacturer Part Number: TL-30
• Product Type: Time Delay Plug Fuse
• Series: TL Series
• Fuse Type: Plug fuse, time delay (loaded link)
• Amperage Rating: 30 A
• Voltage Rating: 125 VAC
• Interrupt Rating: 10 kA
• Breaking Capacity: 10 kA
• Response Time: Time delay (slow-blow)
• Element: Single
• Body Material: Plastic
• Thread Material: Brass
• Base Type: Edison (screw-in)
• Terminal Type: Stud
• Mounting Type: Threaded
• Indicating: Non-Indicating
• Rejection: Non-Rejection
• Applications: Small motor and high inductive load circuits with high inrush current levels; box cover units; residential or light commercial circuits
• Approvals: UL 248-11, CE
• Compliances: UL, CSA
• RoHS Status: RoHS Compliant
• Dimensions: 1.25 in x 1.25 in x 1.25 in
• Weight: 0.044 lb
• Country Of Origin: Mexico
