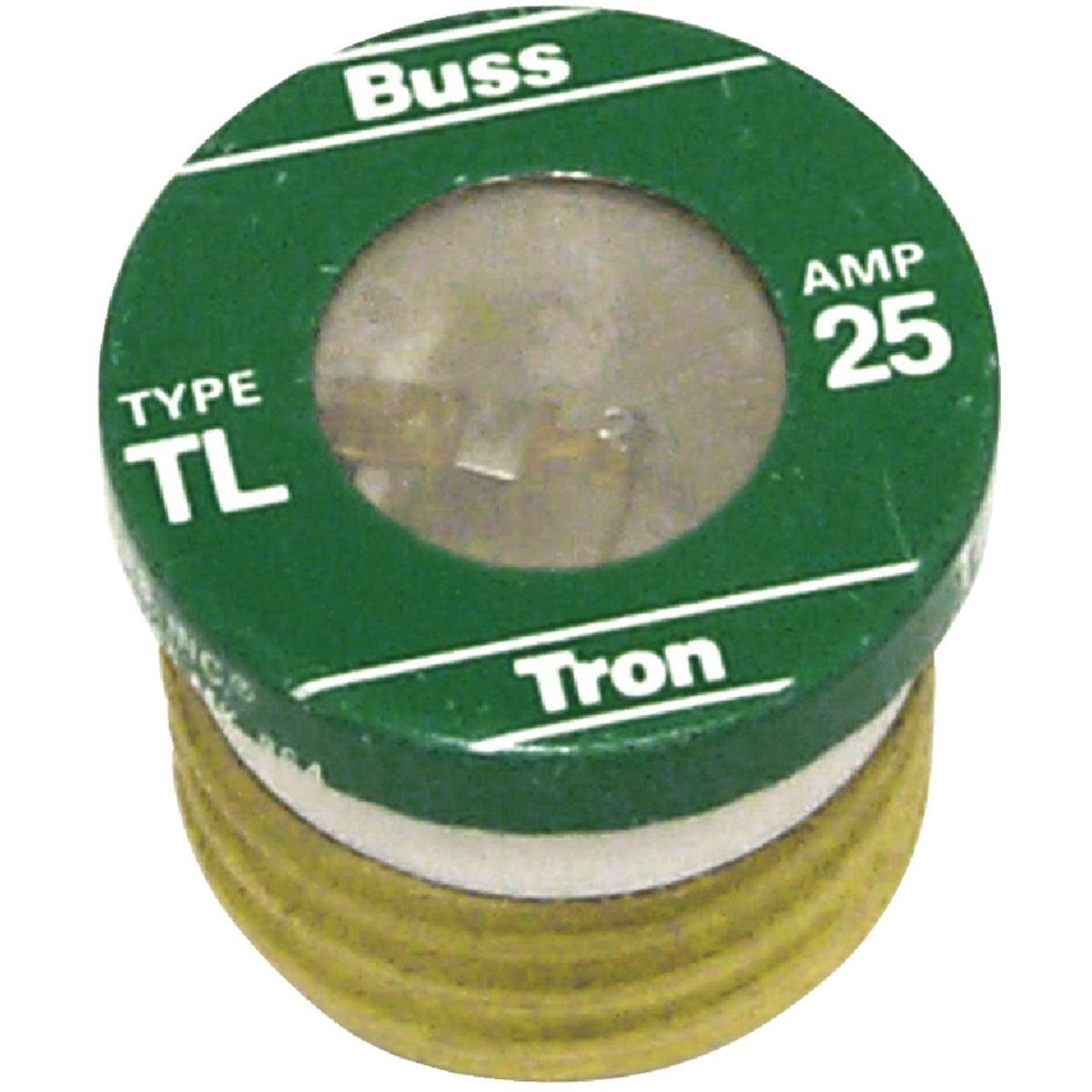

Eaton TL-25PK4 Time-delay Plug Fuse 25A 125V 4-pack

Product Description

The EATON TL-25PK4 is a medium-duty, time-delay plug fuse sold in a 4-pack, rated at 25 amps and 125 volts AC. The loaded-link TL design provides intentional time-delay action, allowing temporary inrush currents from motors, relays, and solenoids to pass without nuisance tripping while still protecting the circuit against sustained overloads and short circuits. The interrupting rating is 10,000 amps (A.I.C.), suitable for standard residential branch circuits. Brass Edison-base threads fit standard residential fuse receptacles, and an extra-large clear window allows quick visual confirmation of fuse condition without removing the fuse from the holder. UL listed.

The TL-25PK4 is designed for residential and light commercial branch circuits that include electric motors or inductive loads. Typical applications include kitchen appliance circuits, workshop and garage circuits, utility room circuits, and any branch circuit serving motors, relays, or solenoids where momentary inrush current would otherwise cause a standard fuse to open. The 4-pack format supports service calls requiring multiple replacements or stocking a spare on-site.

Key Features

• Time-delay loaded-link design handles motor inrush current without nuisance opens
• Rated 25 amps at 125 volts AC
• 10,000 A.I.C. interrupting rating for residential branch circuit protection
• Brass Edison-base (Type TL) threads into standard residential fuse receptacles
• Extra-large clear window for fast visual blown-fuse inspection
• UL listed

Compatibility

Designed as an OEM-style replacement for standard residential Edison-base (Type TL) fuse receptacles rated for 125 volts AC plug fuses.

Installation Notes

Installation is performed by a licensed electrician or qualified service technician. Before replacing a fuse, shut off or disconnect the load on the circuit and identify the root cause of the previous fuse failure before installing a new one. Type TL fuses are rejection-style and will only fit receptacles designed for the TL configuration, preventing substitution with a higher-amperage fuse. Follow NEC guidelines for overcurrent protection sizing on motor and appliance branch circuits.

Technical Specifications

• Amperage Rating: 25 amps
• Voltage Rating: 125 volts AC
• Interrupting Rating: 10,000 A.I.C.
• Fuse Type: TL Time-Delay Plug Fuse
• Base Type: Edison base (brass threads)
• Quantity per Package: 4
• Weight: 0.209 pounds
• Listing: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: TL-25PK4
