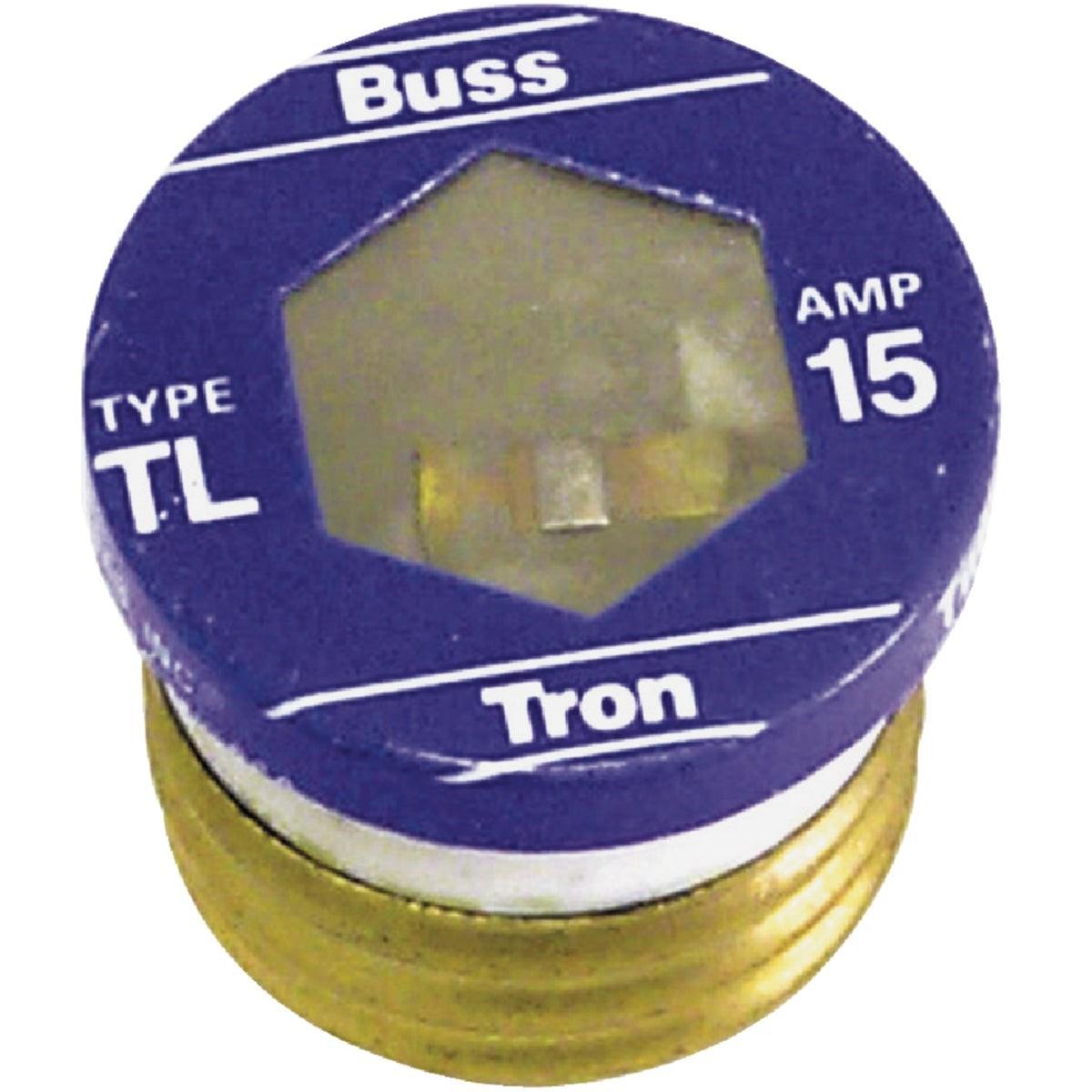

Eaton TL-15PK4 Time-delay Plug Fuse 15A 125V 4-pack

Product Description

The EATON TL-15PK4 is a medium-duty, time-delay plug fuse rated at 15 amps and 125 volts AC, sold in a 4-pack. It uses a loaded-link design that tolerates brief motor startup inrush currents without nuisance tripping, then opens quickly under sustained overload or short-circuit conditions. The Edison base brass threads screw directly into standard fuse receptacles. An extra-large clear window lets technicians and inspectors verify fuse condition without removing the fuse from the holder. UL listed with a 10,000 amp interrupting capacity (AIC). Electricians and residential service techs install these in standard plug-fuse panelboards and fused disconnect boxes.

The TL-15PK4 is suited for residential and light commercial circuits that power electric motors, relays, and solenoids. Typical applications include kitchen appliance circuits, workshop circuits, garage circuits, and utility room circuits where motor-load inrush requires time-delay protection. The 4-pack format supports service calls that may require replacing multiple fuses in a single panel or stocking a small on-truck inventory.

Key Features

• Time-delay loaded-link design handles motor startup inrush without nuisance tripping
• 15-amp rating for residential motor and general-purpose branch circuits
• 125-volt AC rated for standard residential panelboard voltage
• 10,000 AIC interrupting rating for safe fault current protection
• Edison base brass threads fit standard plug-fuse receptacles
• Extra-large clear window allows quick visual blown-fuse inspection
• UL listed

Compatibility

Designed as an OEM-style replacement for standard Edison-base plug-fuse panelboards and fused disconnects rated for 125-volt AC, 15-amp branch circuits in residential and light commercial applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local electrical codes. Always shut off the main breaker or disconnect power to the panel before replacing plug fuses. Confirm the replacement fuse amperage matches the circuit rating before installing. Do not use a higher-amperage fuse than the circuit conductor is rated to carry.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts AC
• Interrupting Rating: 10,000 AIC
• Fuse Type: Time-delay plug fuse
• Base Type: Edison base
• Thread Material: Brass
• Quantity: 4-pack
• Weight: 0.2 pounds
• Certifications: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: TL-15PK4
