Eaton TCI132 cwd dust-tight grip 1/2 in

Product Description

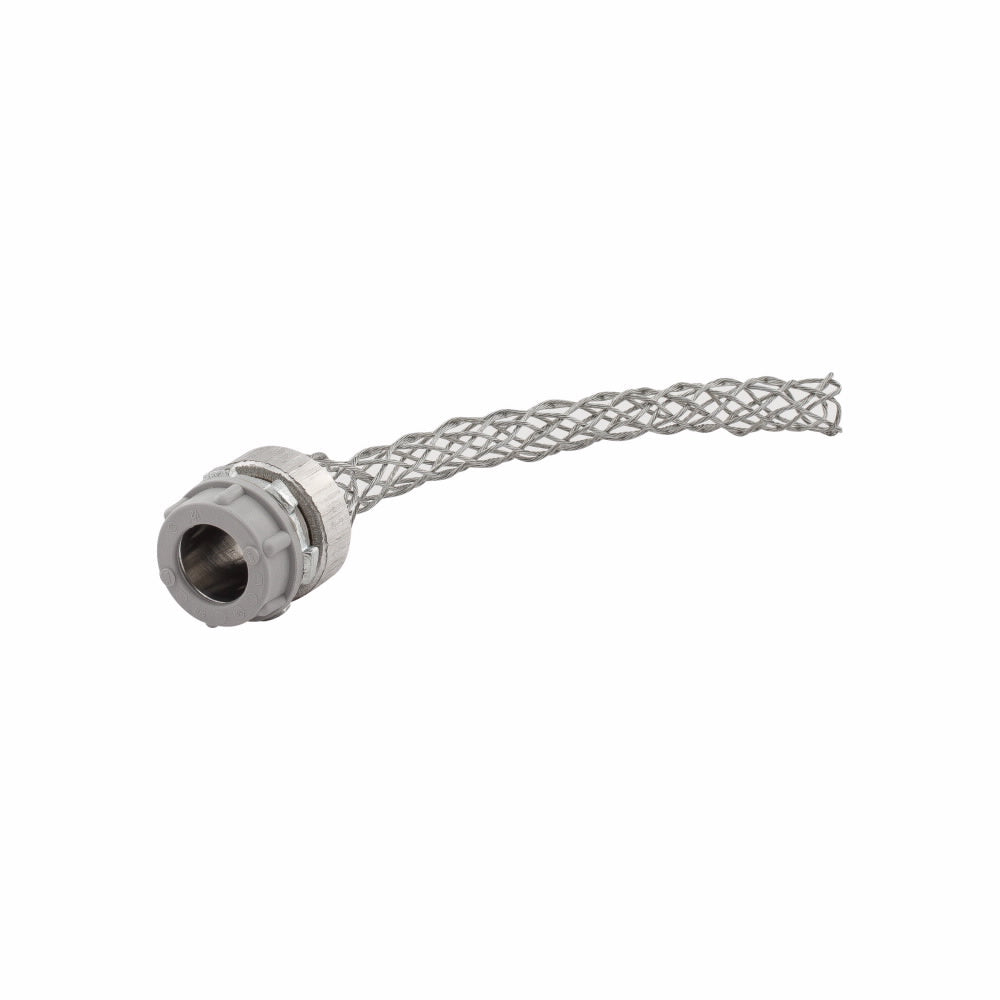

The EATON TCI132 Arrow Hart dust-tight grip is an industrial insulated straight grip with a 1/2 inch trade size. It provides secure cable termination and prevents cable pull-out. Constructed with steel mesh and an aluminum threaded body, it extends cable life. It is suitable for indoor use in wiring enclosures, power boxes, machine tools, and power centers.

• Provides secure cable termination and prevents cable pull out
• Absorbs longitudinal stresses placed on the point of termination caused by pulling or bending the cable
• Constructed with steel mesh and aluminum threaded body adding to safety by extending cable life

Product Highlights

The TCI132 grip includes a locknut, nylon insulated bushing, and neoprene gasket to provide a dirt and dust-free seal.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TCI132
• Country of Origin: MEX

Technical Specifications

• Application: For indoor use in wiring of enclosures, power boxes, machine tools and power centers
• Cable Openings: 0.3 to 0.43 in
• Connection Type: Male NPT
• Includes: Locknut, Nylon Insulated Bushing and Neoprene Gasket
• Manufacturer Part Number: TCI132
• Material: Aluminum/Steel
• Standards/Approvals: CSA Certified|UL Listed|NAFTA Compliant
• Trade Size: 1/2 in
• Type: Industrial Insulated Straight
• Cord diameter: 0.30-0.43 in
• Fitting size: 1/2 in
• Thread type: NPT
