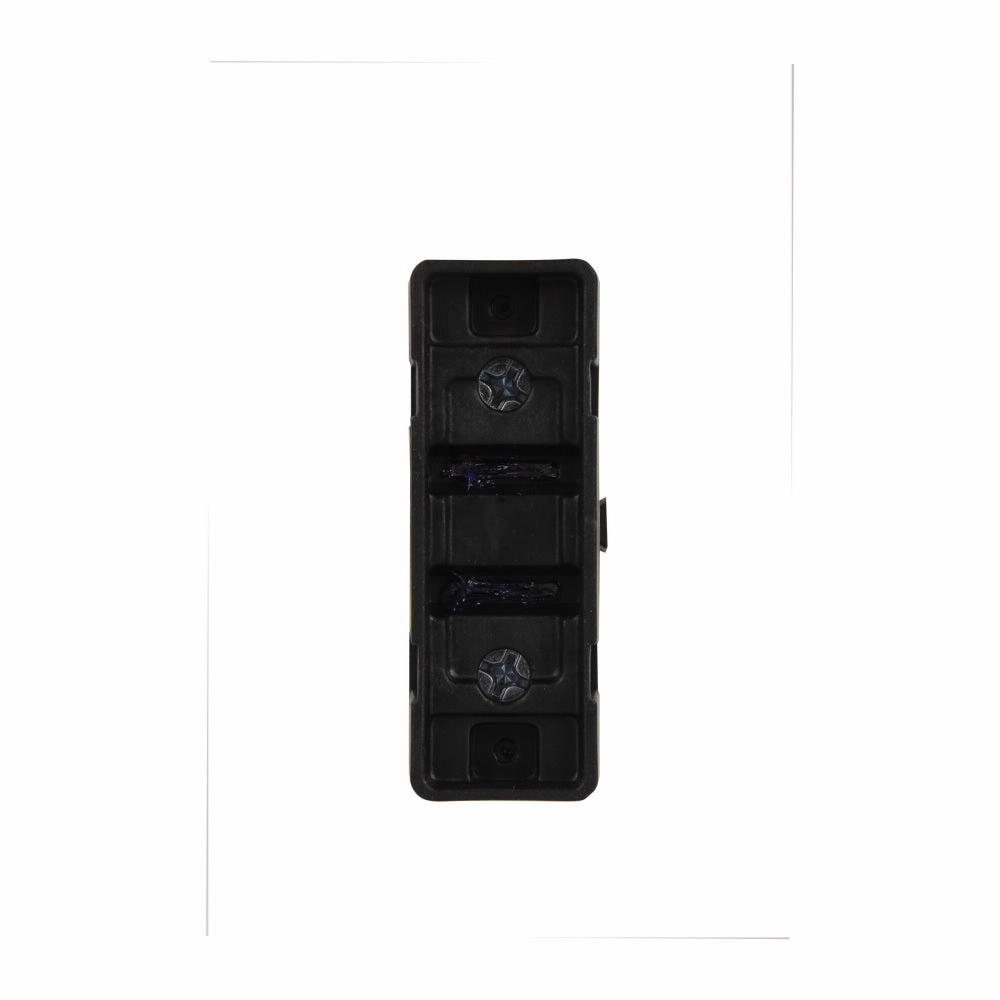

Eaton TCFH100N BUS FUSEHOLDER CUBE 100A

Product Description

The Eaton TCFH100N is a Bussmann cartridge fuse designed for safety and efficiency. This fuse can handle up to six hundred volts alternating current or direct current and has a current rating of one hundred amperes. Built with a finger-safe design, it is suitable for panel mounting and made from glass filled polybutylene terephthalate for durability.

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 100 A
• Dimensions: 2.91 in L x 1.05 in W x 2.01 in H

Product Highlights

This fuse is versatile and can be used in electrical panel boards, machinery disconnects, and industrial control applications. The finger-safe feature enhances user safety, making it ideal for environments where safety is a priority.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171222350

Technical Specifications

• Amperage Rating: 100 A
• Application: Electrical Panel Boards, Machinery Disconnects, Industrial Control Systems
• Class: CF
• Dimensions: 2.91 in L x 1.05 in W x 2.01 in H
• Material: Glass Filled Polybutylene Terephthalate
• Mounting Type: Panel
• Standards/Approvals: CE Certified, CSA Certified, RoHS Compliant, UL Listed
• Type: Finger Safe
• Voltage Rating: 600 VAC/VDC
