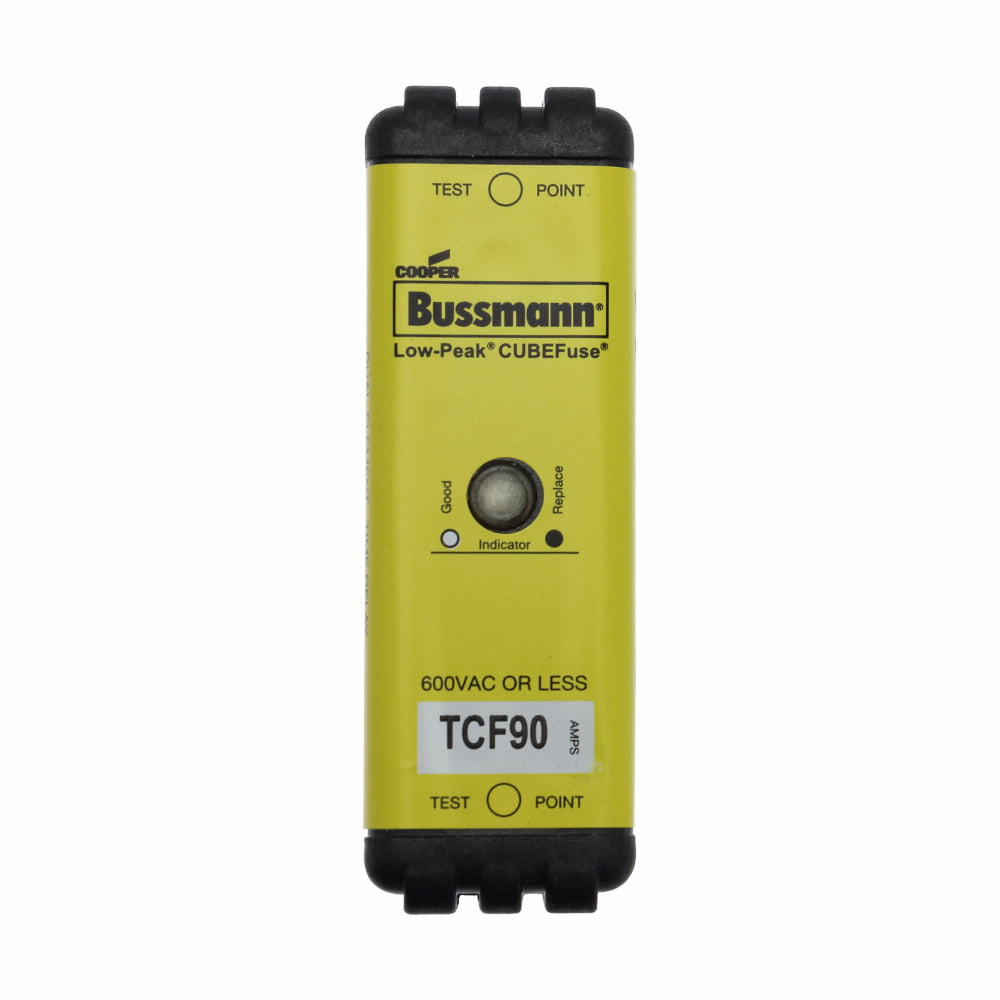

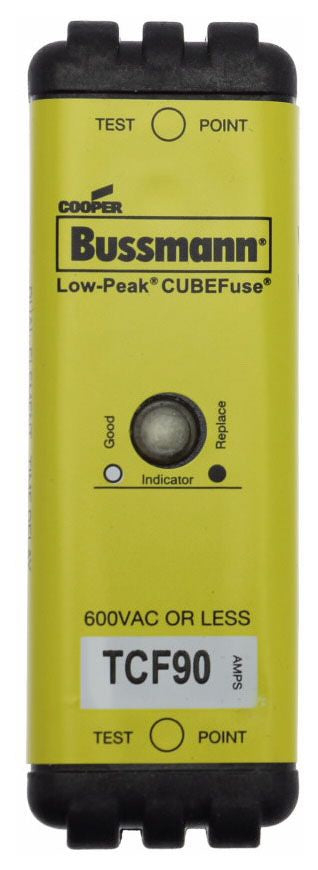

Eaton TCF90 BUS CUBEFUSE 90 AMP (1)

Product Description

The Eaton TCF90 BUS CUBEFUSE is a time delay fuse designed for safe operation in electrical systems. This fuse has a current rating of ninety amps and is suitable for both 600 volts alternating current and 300 volts direct current. The design features a square body type that allows for convenient mounting on chassis or DIN rails. The TCF90 fuse is recognized for its capability to limit inrush current while ensuring a robust response to damaging electrical faults.

• Time delay of ten seconds at five hundred percent rating
• Rated for high interrupt capability of up to three hundred kiloamps
• Constructed from glass filled polyethersulfone for durability

Product Highlights

The TCF90 fuse serves essential functions in various applications, including industrial control and safety systems. Its compact design and robust performance make it suitable for machinery disconnects and electrical panel boards.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: TCF90

Technical Specifications

• Amperage Rating: 90 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 300 kA
• Body Size: 3.01 in L x 1 in W x 1.26 in H
• Body Type: Square
• Mounting Type: Chassis/DIN Rail
• Response Time: 10 s at 500%
• Material: Glass Filled Polyethersulfone
