Product Description

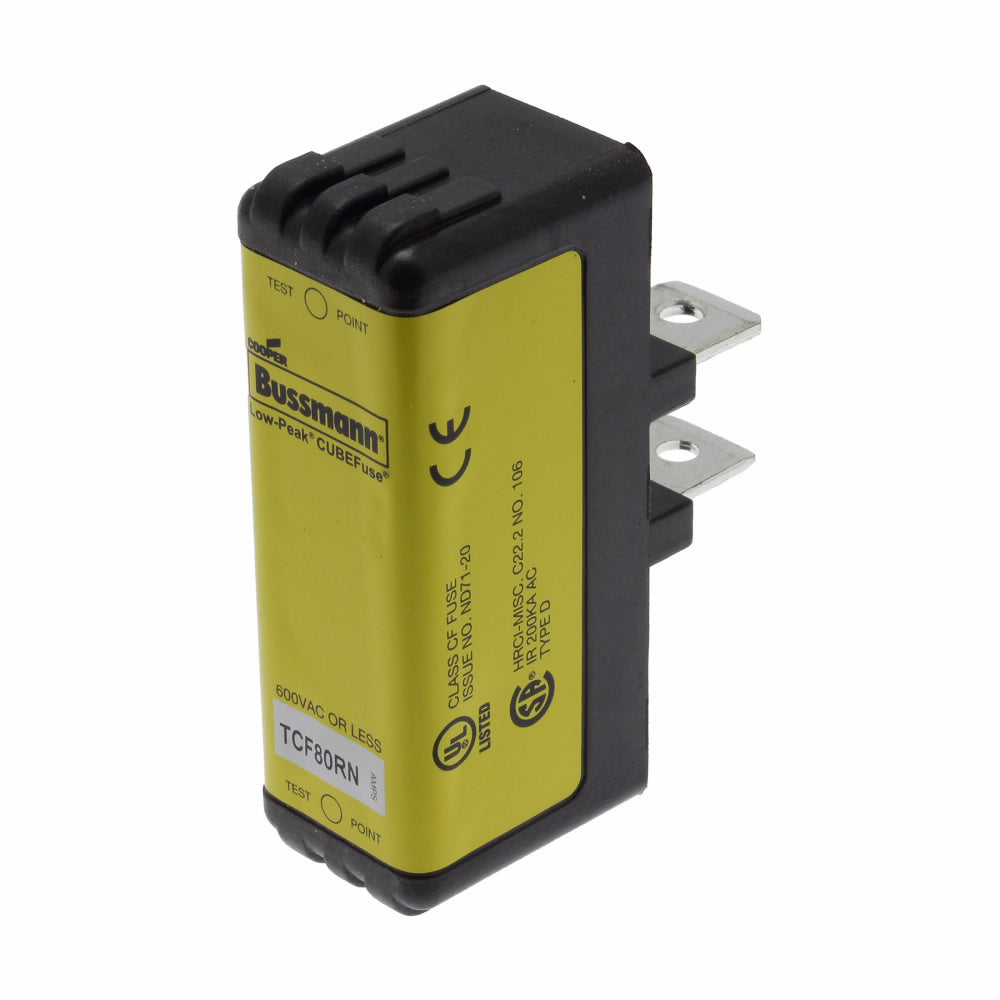

The Eaton TCF80RN CUBEFuse is a time delay fuse designed to enhance system protection. This fuse is perfect for use in high inrush load environments within commercial and industrial settings.
- 80 A, 600 VAC/300 VDC with 300/100 kA interrupt rating.
- Finger safe design ensures enhanced personnel safety.
- Dual element offers reliable performance and protection.
Product Highlights
This CUBEFuse model boasts a compact, square blade body, enabling substantial space savings and simplified installation in tight spaces. It's designed to protect equipment by providing a time delay feature that handles temporary surges without tripping the fuse unnecessarily.
Product Information
Standard Information
-
Series: TCFRN
-
Class: CF
-
Body Material: Glass Filled Polyethersulfone
Technical Specifications
-
Amperage Rating: 80 A
-
Voltage Rating: 600 VAC/300 VDC
-
Interrupt Rating: 300 kA rms symmetrical, 100 kA DC
-
Response Time: 10 s at 500% rated current
-
Mounting Type: Chassis/DIN Rail
-
Terminal Type: Blade
-
Standards/Approvals: CE, CSA, IEC 60529, RoHS, UL
